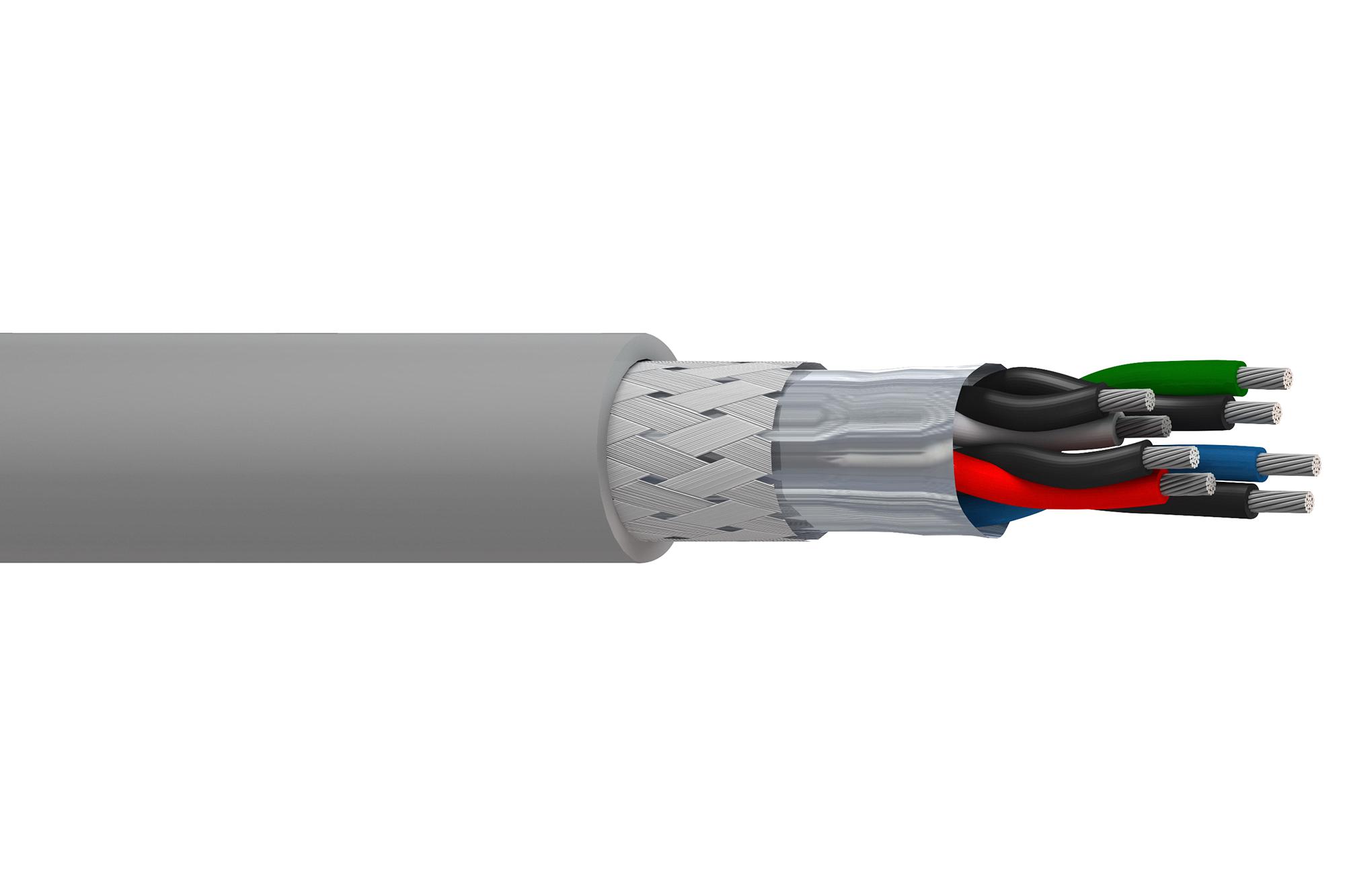

BELDEN 76404TS008100 Shielded Data Cable
The MachFlex™ 76000TS Series Multipair Foil/Braid Shielded Data Cable is designed for flexible motion and space-constrained industrial applications. It supports continuous flexing up to 6 million cycles and features a flexible conductor, insulation, and jacket materials for durability. The cable offers excellent shielding effectiveness with aluminum/polyester foil and tinned copper braid shields, along with an oil-resistant PVC jacket suitable for harsh environments. Operating within -10°C to 105°C (static) and +5°C to 105°C (dynamic), it provides reliable 300V performance for industrial automation, factory automation, and process control systems, ensuring durability and effective signal transmission.
BELDEN 76404TS008100 Shielded Data Cable Specifications:
- Conductor Material: Tinned copper (7x36 strands)
- Conductor AWG: 28 AWG
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil and tinned copper braid (85% coverage)
- Outer Shield Drain Wire AWG: 20 AWG
- Shield Separator Material: Tissue tape with overlap
- Outer Jacket Material: Oil-resistant PVC
- Cable Weight: 56.552 kg/km
- Maximum Pulling Tension: 79.176 N
- Minimum Bend Radius: 66.04 mm static, 96.52 mm continuous flexing
- Flex Cycle Rating: 6 million cycles
- Operating Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Voltage Rating: 300V
- Characteristic Impedance: Not specified
- Inductance: 0.722 μH/m
- Capacitance between conductors: 1000 pF/m, to ground: 124.7 pF/m
- Applicable Standards: UL AWM style 20006, CSA Vi Flame Test compliant, RoHS2
- Sunlight Resistance: Yes
Buy the Belden Series 76000TS Multi-Conductor Shielded Data Cable: 76404TS008100
Discover the high-performance Belden Series 76000TS shielded data cable, engineered for industrial automation, factory automation, and process control. Supporting up to 6 million flex cycles, it offers excellent shielding with foil and braid, an oil-resistant PVC jacket, and a temperature range of -10°C to +105°C. Perfect for harsh environments requiring flexible, durable cabling for reliable communication, this cable ensures efficient, interference-free signal transfer in dynamic industrial settings. Buy online now for superior performance and dependable operation in your automation projects.
Order your Belden Series 76000TS 300V Shielded Data Cable today and ensure reliable signal transmission in your industrial automation projects.
