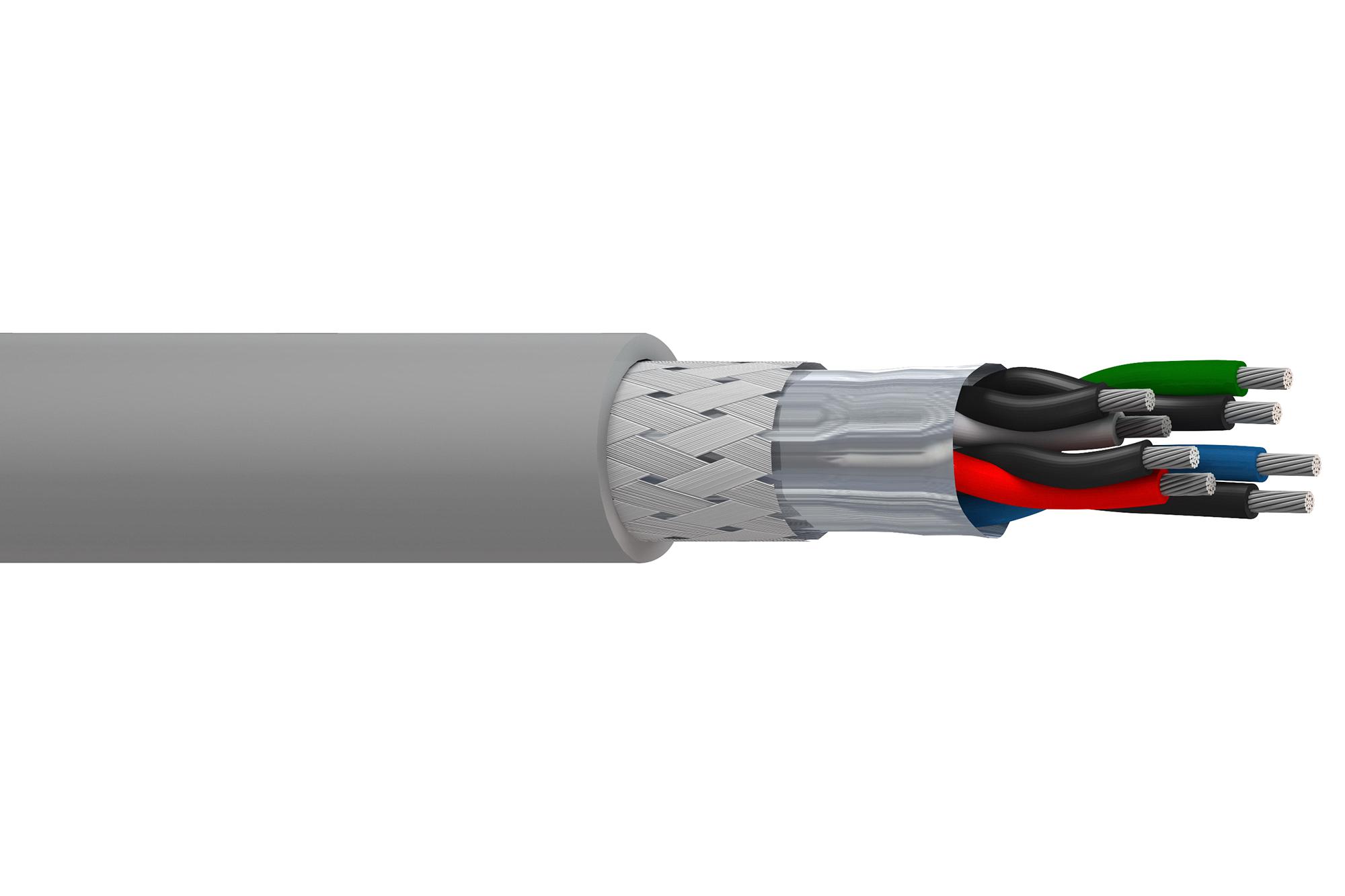

BELDEN 76514TS008100 Shielded Data Cable
The 76514TS Multi-Conductor shielded cable is designed for 300V continuous flexing data applications, offering up to 6 million flex cycles. It features 26 AWG stranded (7x34) tin copper conductors, PVC insulation, aluminum/polyester foil shield, and a tinned copper braid shield with 85% coverage. The oil-resistant PVC jacket provides durability and flexibility suited for dynamic environments. With compliance to UL and CSA standards, this cable is ideal for reliable, high-flex data transmission in industrial and automation settings, ensuring excellent performance and environmental resistance.
BELDEN 76514TS008100 Shielded Data Cable Specifications:
- Conductor: 26 AWG stranded (7x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil and tinned copper braid, 85% coverage
- Outer Jacket: Oil-resistant PVC
- Overall Cable Weight: 102 lbs/1000 ft
- Maximum Pulling Tension: 72 lbs
- Minimum Bend Radius (Static): 4.3 inches
- Minimum Bend Radius (Continuous Flexing): 6.4 inches
- Flex Cycle Rating: Up to 6 million flexes
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- UL Style: 20006
- CSA: Listed for 600V
- Compliance: RoHS, UL FT4 flame test, suitable for outdoor sunlight exposure
- Nominal Characteristic Impedance: 2.030 ohms
- Nominal Capacitance: 100 pF/ft
- Nominal DC Resistance: 84.1 ohms/1000 ft
- Outer Shield DC Resistance: 0.18 ohms/1000 ft
Buy the Belden Series 76514TS Shielded Data Cable: 300V, Flexible, 26 AWG
Purchase the Belden Series 76514TS shielded data cable online to enjoy dependable high-flex performance for your data transmission needs. This cable features 26 AWG stranded copper conductors with PVC insulation, aluminum/polyester foil shield, and a tinned copper braid for superior shielding. Rated for 300V and capable of up to 6 million flex cycles, it is ideal for continuous flexing environments, offering durability, flexibility, and environmental resistance. Perfect for industrial, automation, and high-demand wiring applications, buy online today for fast delivery and trusted quality.
Order your Belden Series 76514TS shielded data cable today and ensure reliable, high-flex performance for demanding industrial and automation applications.
Frequently Asked Questions
Where can I buy BELDEN 76514TS008100?
You can click on the BUY or RFQ button to purchase 76514TS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76514TS008100?
You can download the 76514TS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76514TS008100?
BELDEN
