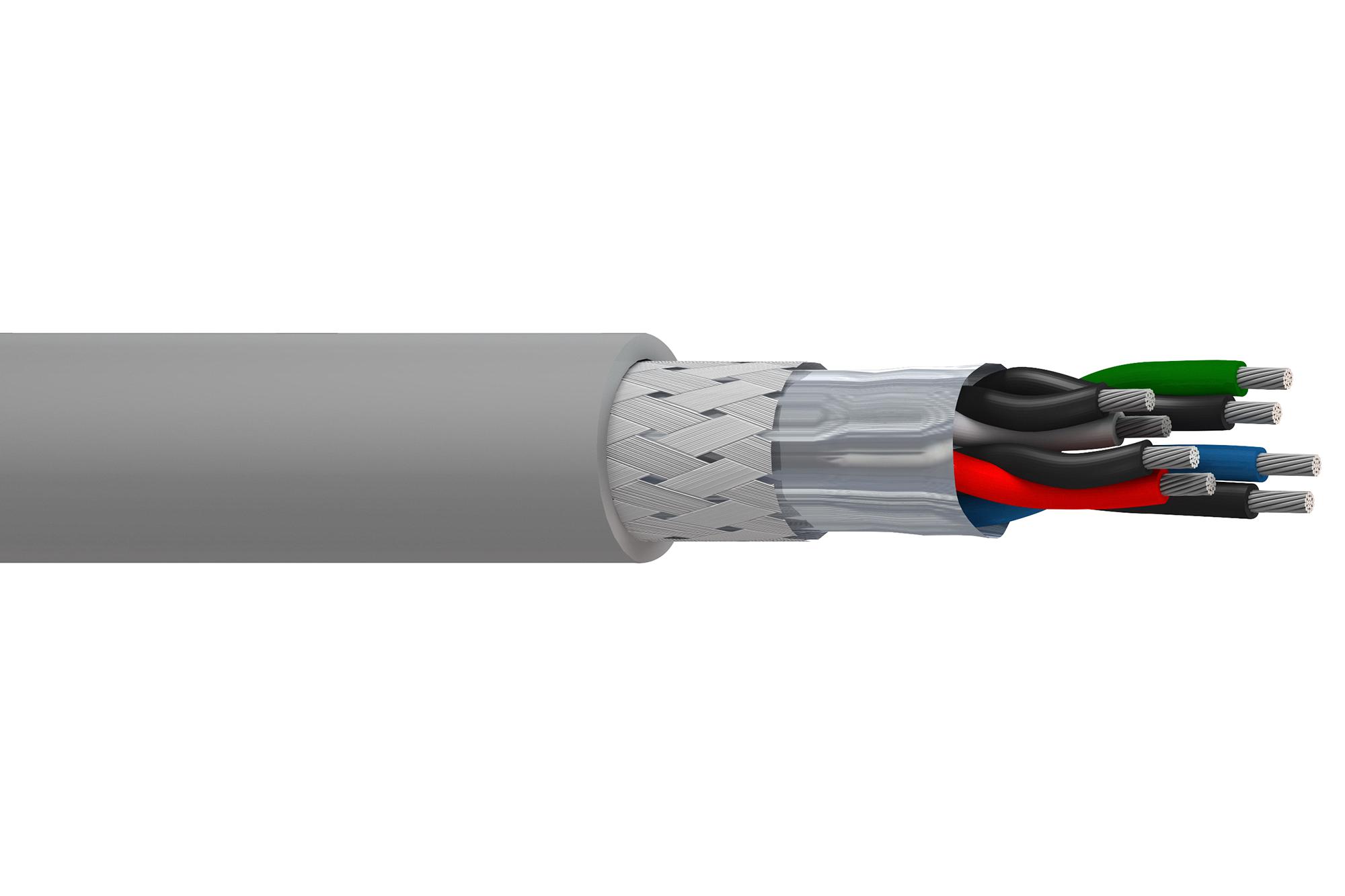

BELDEN 76604TS0081000 High-Flex Data Cable
The 76604TS multi-conductor cable is designed for 300V shielded and continuous flexing data applications, offering up to 6 million flex life cycles. It features 24 AWG stranded (10x34) tinned copper conductors with PVC insulation, an aluminum/polyester foil shield, and a tinned copper braid shield with 85% coverage. The oil-resistant PVC outer jacket provides durability in demanding environments. Suitable for indoor use, it meets UL, CSA, and EU RoHS standards, ensuring reliable and compliant high-flex data transmission with excellent mechanical and electrical performance.
BELDEN 76604TS0081000 High-Flex Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/polyester foil, tinned copper braid with 85% coverage
- Outer Shield Drain Wire: AWG 20
- Outer Shield Separator Material: Tissue Tape with overlap
- Outer Jacket Material: Oil-resistant PVC
- Bulk Cable Weight: 7.386 Kg/km
- Maximum Recommended Pulling Tension: 142.342 N
- Minimum Bend Radius: 73.660 mm (static), 111.760 mm (flexing)
- Flex Cycle Rating: 6 Million Flexes
- Temperature Range: -10 to 105°C (static), +5 to 105°C (dynamic)
- Applicable Standards: UL, CSA, RoHS, UL style 20006, EU Directive 2011/65/EU
- Flame Test: GSA Flame Test compliant
- Sunlight Resistance: Yes
- Characteristic Impedance: Not specified, but includes Inductance 0.623 µH, Capacitance to Ground 147.645 pF/m
Buy the Belden Series High-Flex Data Cable: 76604TS
Discover the high-flex, shielded data cable designed by Belden, offering exceptional durability with up to 6 million flex cycles. Constructed with 24 AWG stranded tin copper conductors, it features robust PVC insulation, a highly effective foil and braid shield, and an oil-resistant outer jacket. Suitable for continuous flexing applications, it complies with UL, CSA, RoHS, and EU standards for safety and environmental compliance. Ideal for industrial, automation, and data transmission environments, ensuring reliable signal integrity and long-lasting performance in demanding conditions.
Get Belden 76604TS today—built for high-flex data applications with exceptional durability and shielded performance in demanding environments.
