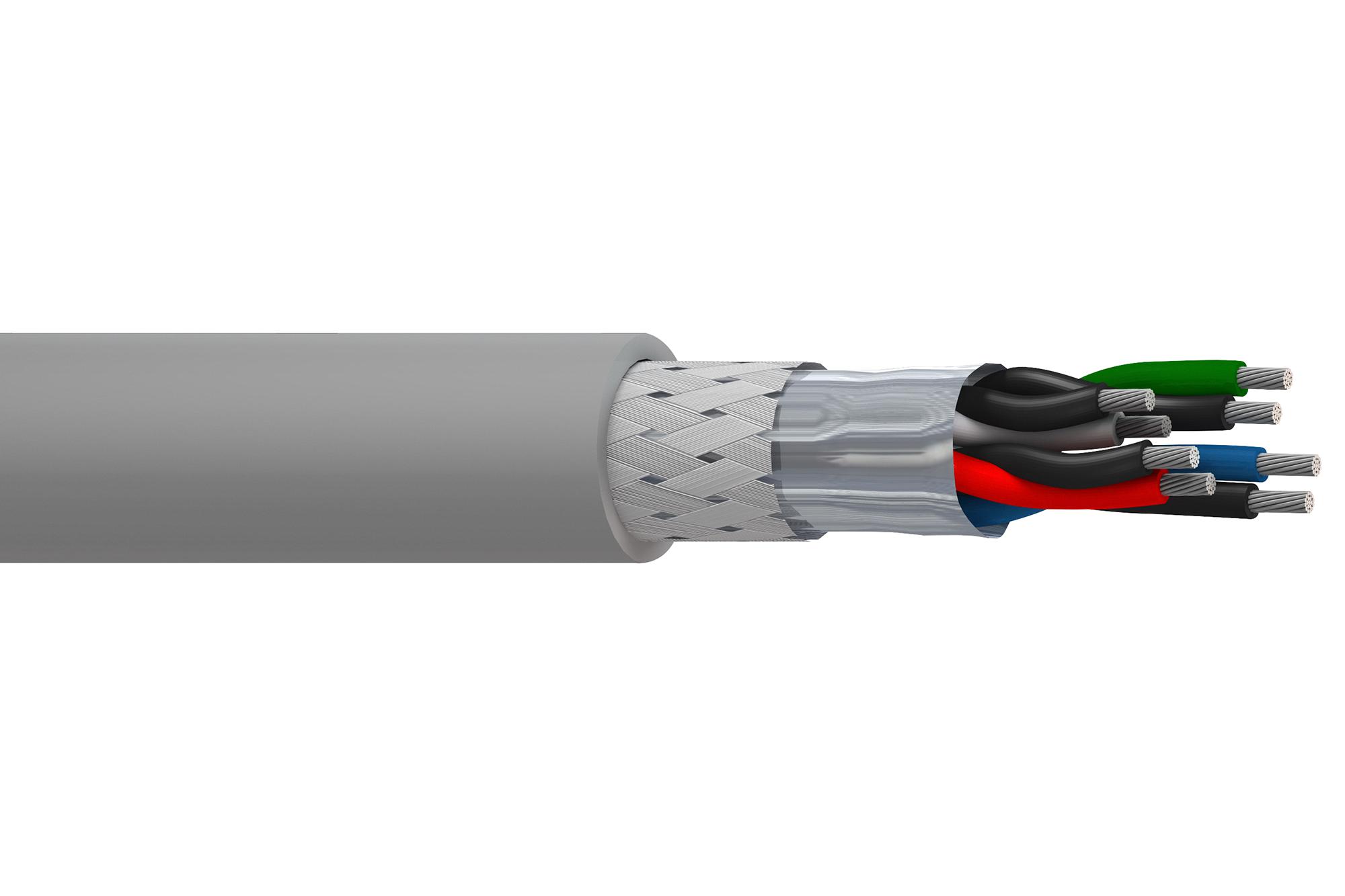

BELDEN 76606TS0081000 Shielded Multi-Conductor Cable
The 76606TS shielded multi-conductor cable is designed for data applications requiring continuous flexing with a maximum flex life of up to 6 million cycles. It features 24 AWG stranded tinned copper conductors with PVC insulation, complemented by aluminum/polyester foil and tinned copper braid shields offering 85% coverage. The oil-resistant PVC jacket enhances durability, making it ideal for dynamic environments. It complies with UL, CSA, and EU RoHS standards, supports 300V applications, and is suitable for environments with exposure to sunlight and mechanical flexing.
BELDEN 76606TS0081000 Shielded Multi-Conductor Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC, 0.010 inches thick
- Outer Shield: Aluminum/polyester foil and tinned copper braid, 85% coverage
- Outer Jacket: Oil-resistant PVC
- Cable Weight: 66 lbs/1000 ft
- Max Pulling Tension: 46 lbs
- Bend Radius: 3.370 inches (minimum), 5.060 inches (continuous flexing)
- Flex Cycle Rating: Up to 6 million flexes
- Applicable Standards: UL Style 20006, CSA, G(UL) LYPE CMG, EU RoHS2
- Flame Test: CSA FT4
- Voltage Rating: 300V
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Sunlight Resistance: Yes
- Impedance: 82000Ω
- Capacitance: Nominal, conductor to ground and other conductors
- Resistance: Nominal DC resistance varies with conductor length
Buy the Belden Series 76606TS Shielded Data Cable: 300V Flexible Multi-Conductor
Enhance your data connectivity with our Belden Series 76606TS shielded cable. Designed for continuous flexing with a flex life of 6 million cycles, it features 24 AWG stranded tinned copper conductors, PVC insulation, foil and braid shielding for maximum durability. The oil-resistant PVC jacket ensures long-lasting performance in challenging environments. Certified for UL, CSA, and RoHS compliance, this cable is ideal for industrial, automation, and control systems requiring reliable and flexible wiring solutions. Order online today for quick delivery.
Order your Belden Series 76606TS shielded multi-conductor cable today and ensure reliable performance for demanding data applications with exceptional flex life.
Frequently Asked Questions
Where can I buy BELDEN 76606TS0081000?
You can click on the BUY or RFQ button to purchase 76606TS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76606TS0081000?
You can download the 76606TS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76606TS0081000?
BELDEN
