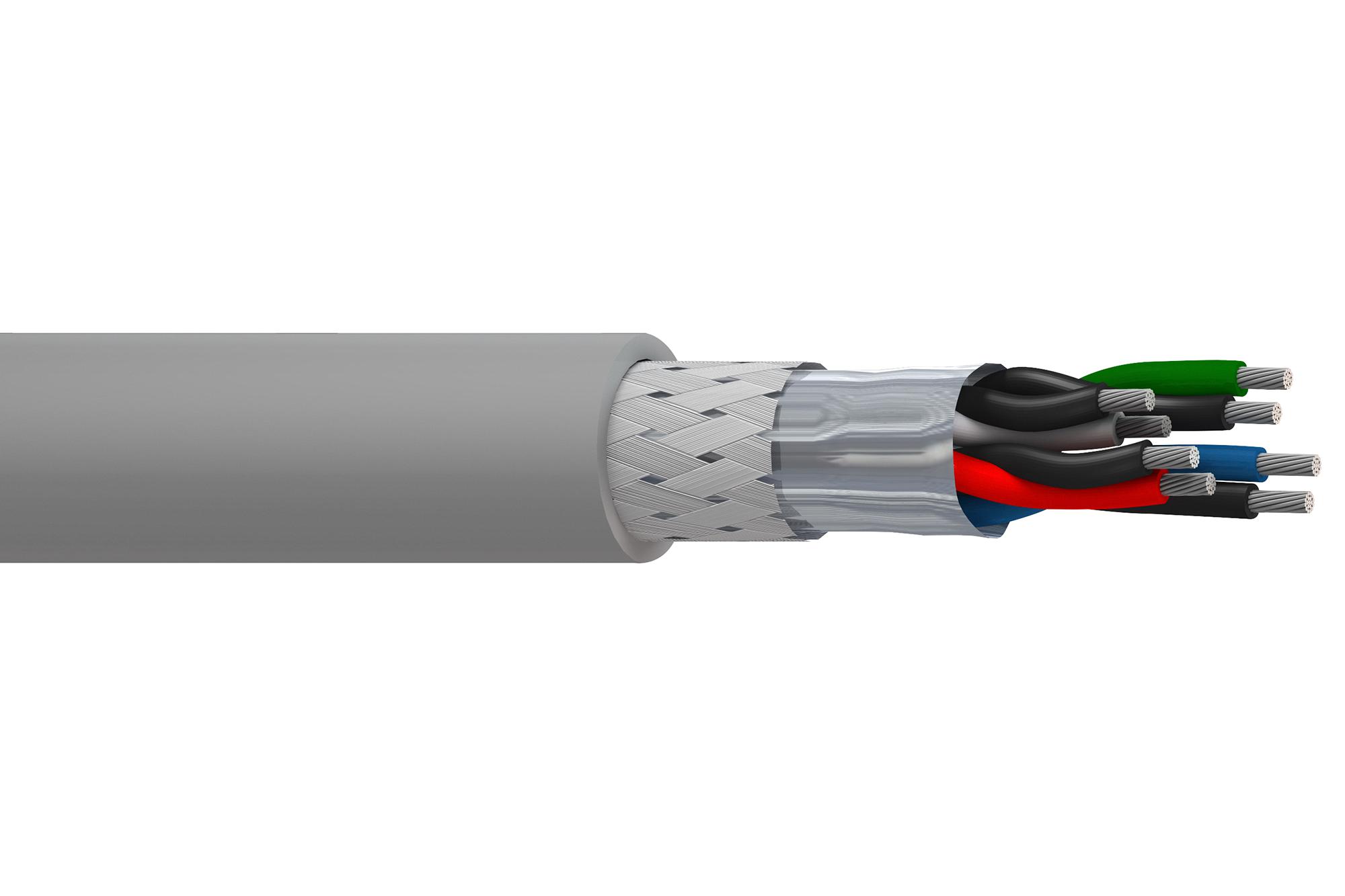

BELDEN 76708TS008100 Multi-Conductor Data Cable
The 76708TS multi-conductor cable is designed for data transmission in flexible, shielded applications up to 6 million flex cycles. Constructed with 22 AWG stranded tinned copper conductors and insulated with PVC, it features aluminum/polyester foil and tinned copper braid shields for enhanced EMI protection. The cable has an overall diameter of approximately 11.252 mm, a maximum pulling tension of 471.509 N, and meets multiple standards including NEC, UL, and CSA. Suitable for industrial automation, control, and data communication requiring high flex life and durability with oil resistance and sunlight resistance.
BELDEN 76708TS008100 Multi-Conductor Data Cable Specifications:
- Conductor: 22 AWG stranded (19x34), tinned copper
- Insulation: PVC
- Outer Shield: Aluminum/polyester foil and tinned copper braid, 85% coverage
- Outer Jacket: PVC
- Overall Diameter: 11.252 mm
- Flex Cycle Rating: 6 Million Flexes
- Maximum Pulling Tension: 471.509 N
- Minimum Bend Radius: 111.760 mm
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Applicable Standards: UL Style 20006, cUL, CSA FT4, IEC 60228
- Voltage: 300V
- Impedance: Nominal capacitance 154.207 pF/m, inductance 1000 μH/m
- RoHS compliant
- Sunlight Resistant: Yes
- Certificates: UL, CSA, EU RoHS
Buy the Belden 76708TS – Reliable Data Shielded Cable for Industrial Applications
Purchase the Belden 76708TS multi-conductor shielded cable online today to support industrial automation and data communication projects. This high flex, shielded cable with PVC insulation offers excellent durability, oil resistance, and sunlight resistance. Its construction includes 22 AWG tinned copper conductors, aluminum/polyester foil, and copper braid shields, providing superior EMI protection. With a maximum flex life of 6 million cycles, it’s suitable for demanding environments. Order now to get reliable, high-quality cable for your industrial and automation needs, delivered quickly to support your project timelines.
Order your Belden 76708TS multi-conductor flexible shielded cable today and ensure your data transmission projects handle high flex cycles with lasting durability.
Frequently Asked Questions
Where can I buy BELDEN 76708TS008100?
You can click on the BUY or RFQ button to purchase 76708TS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76708TS008100?
You can download the 76708TS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76708TS008100?
BELDEN
