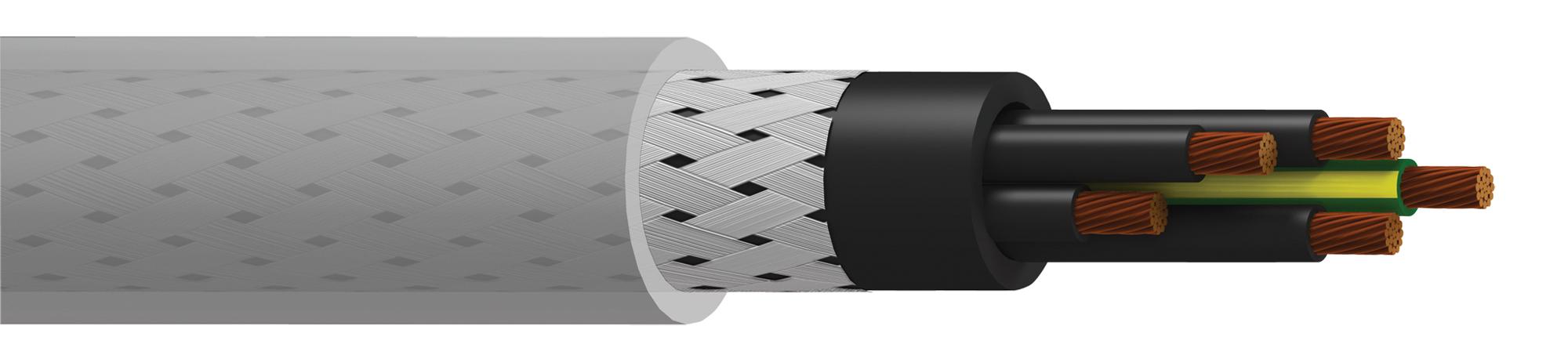

BELDEN 77004WS010500 Multi-Conductor Shielded Cable
The Belden 77004WS is a robust multi-conductor shielded cable engineered for demanding environments requiring continuous flexing. Constructed with 20 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC inner jacket, this cable provides reliable signal transmission. The tinned copper braid shield ensures excellent shielding performance, while the overall PVC jacket offers protection against oil and abrasion. Its flexibility and durability make it suitable for applications in industrial automation, robotics, and other dynamic environments where frequent bending and flexing are encountered. The cable is rated for 600V and designed to withstand up to 14 million flex cycles, ensuring long-term performance and reliability.
BELDEN 77004WS010500 Multi-Conductor Shielded Cable Specifications:
- Overall Nominal Diameter: 9.525 mm
- Conductor AWG: 20
- Number of Conductors: 4
- Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nominal Wall Thickness (mm): 0.635
- Outer Shield Material: TC - Tinned Copper
- Outer Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nominal Wall Thickness (mm): 0.889
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight: 245.553 Kg/Km
- Max Recommended Pulling Tension: 182.376 N
- Min Bend Radius/Minor Axis: 48.260 mm
- Min Bend/Installation: 48.260 mm
- Min Bend Radius (Continuous Flexing): 48.260 mm
- Flex Cycle Rating: 14 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nom Inductance (µH/m): 0.656
- Nom Capacitance Cond to Other Cond & Ground (pF/m): 131.240
- Nom Capacitance Ground (pF/m): 236.232
- Nom Conductor DC Resistance (Ohm/km): 35.107
