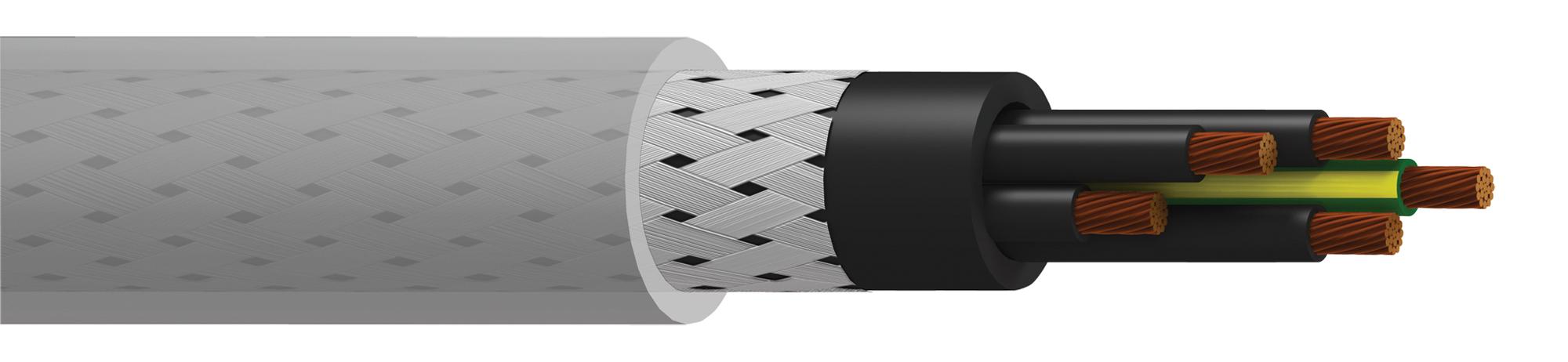

BELDEN 77404WS010100 Multi-Conductor Shielded Cable
The BELDEN 77404WS is a robust multi-conductor shielded cable engineered for applications requiring continuous flexing and reliable signal transmission. Constructed with 14 AWG stranded bare copper conductors, PVC insulation, an oil-resistant PVC inner jacket, and a tinned copper braid shield providing 85% coverage, this cable offers excellent protection against electromagnetic interference. The overall PVC jacket ensures durability and resistance to oils and chemicals. With a flex cycle rating of up to 14 million flexes, the 77404WS is ideal for dynamic environments such as robotics, automated machinery, and medical equipment where frequent bending and flexing are necessary. It meets various industry standards including UL, CSA, and RoHS, ensuring compliance and safety.
BELDEN 77404WS010100 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 14
- Number of Conductors: 4
- Conductor Material: BC - Bare Copper
- Ground Wire AWG: 14
- Ground Wire Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Insulation Diameter (mm): 3.150
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Wall Thickness (mm): 0.889
- Inner Jacket Diameter (mm): 10.008
- Outer Shield Material: TC - Tinned Copper
- Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Wall Thickness (mm): 1.270
- Overall Nominal Diameter (mm): 13.411
- Storage Temperature Range (°C): -40 To +90
- Installation Temperature Range (°C): -5 To +90
- Operating Temperature Range (°C): -5 To +90
- Bulk Cable Weight (Kg/Km): 550.634
- Max. Recommended Pulling Tension (N): 649.437
- Min. Bend Radius (mm): 106.680
- Flex Cycle Rating: 14 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nominal Inductance (µH/m): 0.558
- Capacitance Cond. to Other Cond. & Ground (pF/m): 180.455
- Capacitance Ground (pF/m): 324.819
- Nominal Conductor DC Resistance (Ohm/km): 8.203
- Nominal Outer Shield DC Resistance (Ohm/km): 6.693
