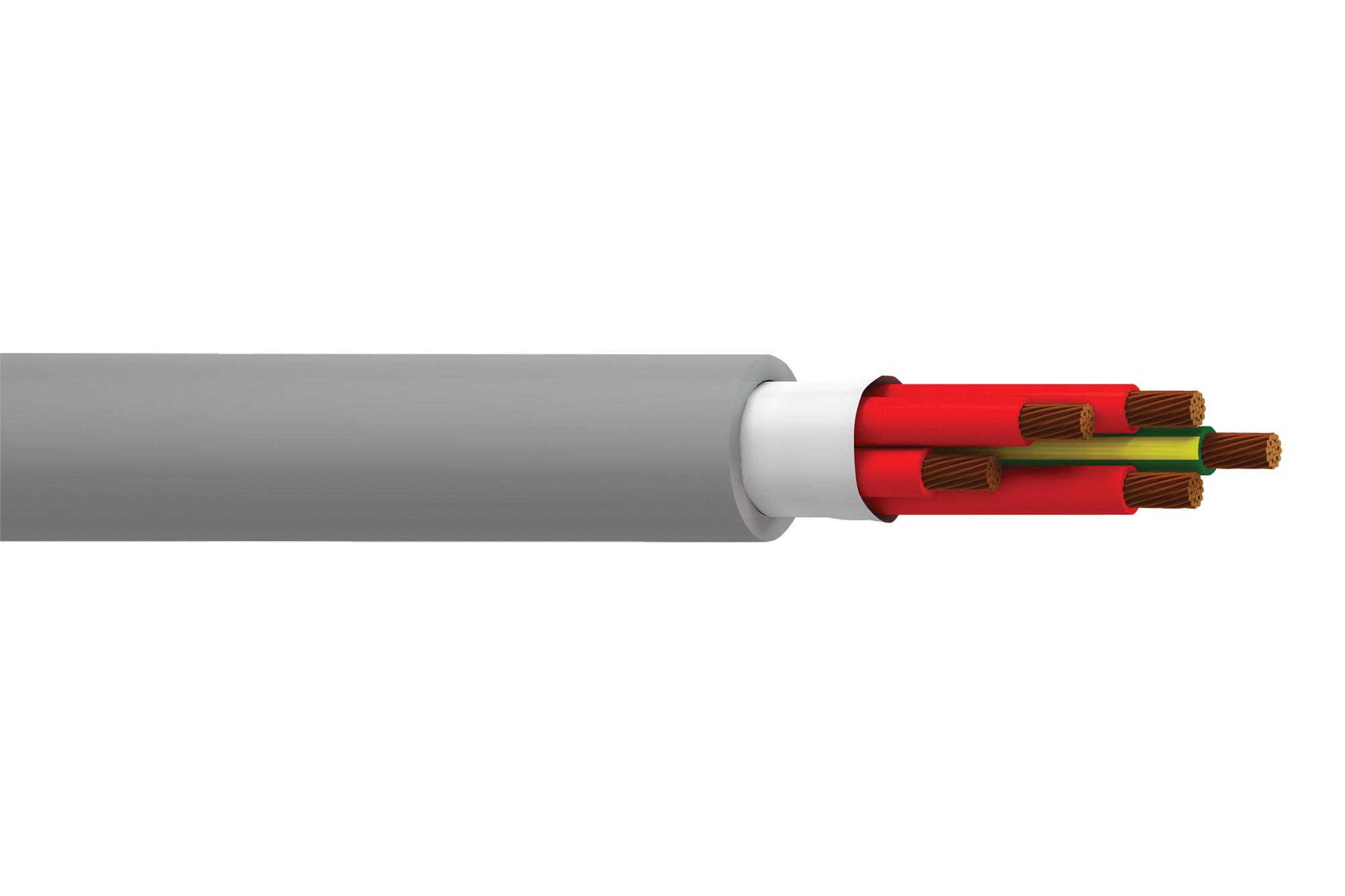

BELDEN 77604W010100 Multi-Conductor Cable
The Belden 77604W multi-conductor cable is designed for continuous flexing applications up to 14 million cycles. It features 16 AWG stranded bare copper conductors, PVC insulation, and a durable oil-resistant PVC jacket. This unshielded cable ensures reliable signal transmission in demanding environments, meeting multiple safety and environmental standards including UL, CSA, VDE, and RoHS II compliance. Its robust construction supports high flexibility, excellent mechanical performance, and is suitable for complex automation, machinery, and control systems requiring frequent movement and long life cycles.
BELDEN 77604W010100 Multi-Conductor Cable Specifications:
- Conductor: 16 AWG (168x38 stranded bare copper)
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket Material: PVC
- Outer Diameter: 9.195 mm
- Overall Cable Weight: 318.475 KgiKm
- Maximum Recommended Pulling Tension: 373.640 N
- Minimum Bend Radius: 773.660 mm
- Flexing Cycle Rating: 14 Million Flexes
- Storage Temperature Range: -40°C to +90°C
- Operational Temperature Range: -8°C to +90°C
- Applicable Standards: UL (THHN/THWN), CSA (600 V AWM), VDE
- RoHS II and REACH compliant
- Flame Test: CSA FT
- Inductance and Capacitance: nominal values unspecified
- DC Resistance: specified but not detailed in extracted data
Buy the Belden Series 77604W Multi-Conductor Cable: 600V Unshielded Flexing Applications
Enhance your industrial setup with the Belden Multi-Conductor Cable featuring 16 AWG stranded bare copper conductors, PVC insulation, and a durable oil-resistant PVC jacket. Designed for continuous flexing with a lifespan of up to 14 million cycles, this cable provides exceptional flexibility, mechanical strength, and reliable electrical performance in demanding environments. Ideal for automation, machinery, and control systems requiring frequent movement, it Meets UL, CSA, VDE standards, RoHS II, and REACH compliance for safe and eco-friendly operation. Order online now for fast delivery and optimal performance.
Buy Belden 77604W now and experience unmatched flexibility, durability, and reliable signal transmission for demanding industrial applications and automation systems.
Frequently Asked Questions
Where can I buy BELDEN 77604W010100?
You can click on the BUY or RFQ button to purchase 77604W010100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 77604W010100?
You can download the 77604W010100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 77604W010100?
BELDEN
