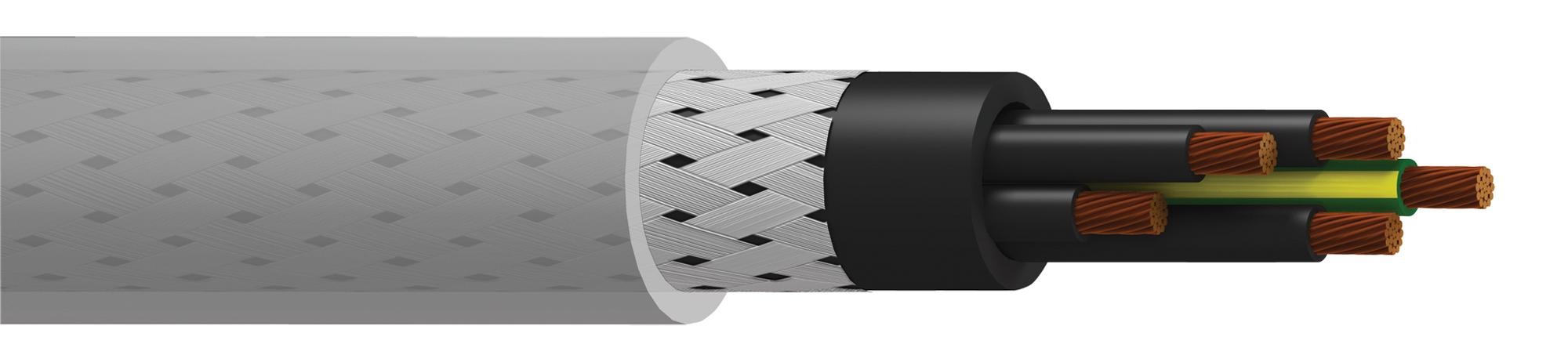

BELDEN 77805WS010100 multi-conductor cable
The Belden 77805WS multi-conductor cable is designed for continuous flexing applications up to 14 million cycles, carrying 600V with shielded protection. It features 18 AWG stranded bare copper conductors with PVC insulation, oil-resistant PVC inner jacket, and a tin-plated copper braid shield with 85% coverage. The overall cable includes an oil-resistant outer PVC jacket, multiple conductors, a ground wire, and a tissue tape separator under the outer shield. Suitable for industrial automation and signal transmission, it offers excellent flexibility, durability, and adherence to safety standards. It withstands temperatures from -40°C to +90°C, with a maximum tensile pull of 393.615 N.
BELDEN 77805WS010100 multi-conductor cable Specifications:
- Number of Conductors: 5
- Ground Wire: Yes, 18 AWG, 105x38 stranded bare copper
- Insulation Material: PVC, oil-resistant
- Inner Jacket: PVC
- Outer Shield: Tinned copper braid, 85% coverage
- Outer Jacket Material: PE (Polyethylene)
- Total Bulk Weight: 366.097 kg/km
- Maximum Recommended Pulling Tension: 393.615 N
- Minimum Bend Radius: 91.44 mm
- Operating Temperature Range: -8°C to +90°C
- Storage Temperature Range: -40°C to +90°C
- Flex Cycle Rating: Up to 14 million flexes
- Voltage Rating: 600V
- Standards & Compliance: UL Style 2587, CSA FT, VDE 0472, RoHS, Reach
- Applicable Environments: Oil-resistant, industrial flexing conditions
Buy the Belden Series 77805WS Shielded Multi-Conductor Cable: 77805WS010100
Purchase your Belden Series 77805WS multi-conductor shielded cable online today for applications demanding high durability and flexibility. Designed with 18 AWG stranded bare copper conductors and oil-resistant PVC insulation, it ensures exceptional performance in industrial environments. With an 85% copper braid shield and PE outer jacket, it provides excellent EMI protection and withstands harsh operating conditions. Rated for 600V and flexing up to 14 million cycles, this cable offers reliable signal transmission, safety, and compliance with industry standards. Perfect for automation and continuous flexing applications, buy now for fast delivery.
Order your Belden Series 77805WS shielded multi-conductor cable today and experience reliable performance in continuous flexing industrial applications.
