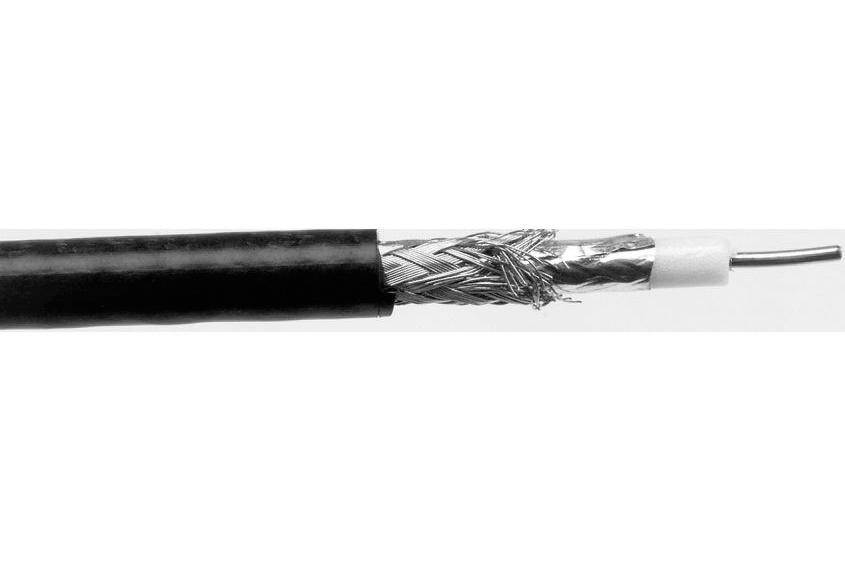

BELDEN 7807R0101000 RG-58 Coaxial Cable
This coaxial cable features a solid bare copper conductor and gas-injected foam HDPE insulation, providing reliable signal transmission. It is encased in a black polyethylene jacket and includes a Duofoil® aluminium foil-polyester tape shield with 100% coverage, along with a tinned copper braid shield offering 95% coverage. Suitable for transmitting electrical signals or energy, it connects sources like transmitters to antennas. Key specs include a maximum pulling tension of 25.4 lbs, inductance of 0.061 µH/ft, velocity of propagation at 85%, and DC resistance of 3.3 Ω/1000 ft conductor, 4.2 Ω/1000 ft shield at 20°C. Operating temperature ranges from -40°C to 75°C, ideal for communication and networking.
BELDEN 7807R0101000 RG-58 Coaxial Cable Specifications:
- Conductors: Solid bare copper, 17 AWG, diameter .044 inches
- Insulation Material: Gas-injected foam HDPE
- Outer Shield: Duofoil aluminium foil-polyester tape (100% coverage), Tinned copper braid (95% coverage)
- Outer Jacket: Black polyethylene
- Overall Diameter: 0.198 inches
- Operating Temperature Range: -40°C to 75°C
- Maximum Recommended Pulling Tension: 25.4 lbs
- Nominal Inductance: 0.061 µH/ft
- Velocity of Propagation: 85%
- DC Resistance: 3.3 Ω/1000 ft (conductor), 4.2 Ω/1000 ft (shield at 20°C)
- Flame Test: UL1666 Vertical Shaft, CSA FT4
- Suitable for indoor use, non-plenum applications
- Maximum Operating Voltage (UL): Not specified
- Series Type: RF 200
- Compliance: RoHS, WEEE, CE, UL, CSA, Prop 65
Buy the Belden 7807R – Reliable Coaxial Cable for Industrial Applications
Secure your communication setup today by purchasing the high-quality RG-58 coaxial cable online. With a robust copper core, foam HDPE insulation, and dual shielding, this cable ensures optimal signal transmission over long distances. It features a durable polyethylene outer jacket suitable for indoor use, supporting high-frequency data transfer with minimal loss. Ideal for connecting transmitters, antennas, and networking equipment, this cable offers ease of installation with a recommended pull tension of 25.4 lbs. Trust in Belden's quality for your critical communication needs.
Buy Belden 7807R now and experience unmatched reliability and signal clarity for industrial and communication applications.
Frequently Asked Questions
Where can I buy BELDEN 7807R0101000?
You can click on the BUY or RFQ button to purchase 7807R0101000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 7807R0101000?
You can download the 7807R0101000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 7807R0101000?
BELDEN
