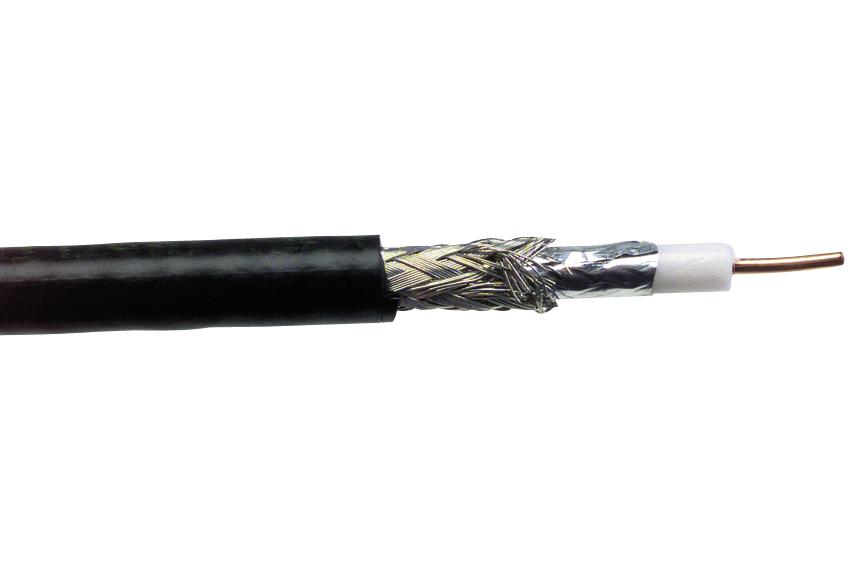

BELDEN 7809A0101000 RF coaxial cable
The 7809A coaxial cable is an intermediate type designed for RF signal transmission with a 13 AWG solid copper conductor and gas-injected FHDPE insulation. It features a tinned copper braid shield with 95% coverage and a polyethylene outer jacket, providing excellent shielding and durability for wireless and broadcast applications. This cable is 7.620 mm in diameter, capable of operating in temperatures from -40°C to +75°C. It complies with multiple environmental standards including RoHS II, ELV, and WEEE, and has been sweep tested up to 6 GHz for high frequency performance.
BELDEN 7809A0101000 RF coaxial cable Specifications:
- Conductor: 13 AWG solid copper
- Insulation: Gas-injected FHDPE foam polyethylene
- Outer Shield: Tinned copper braid 95% coverage
- Outer Jacket Material: Polyethylene
- Overall Diameter: 7.620 mm
- Operating Temperature Range: -40°C to +75°C
- Maximum Pulling Tension: 600.507 N
- Bend Radius: 76.200 mm
- Bulk Cable Weight: 80.363 Kg/Km
- Nominal Velocity of Propagation: Data not specified
- Characteristic Impedance: 50 Ohms
- Maximum VSWI: 6000 25
- Sweep Test: 6 GHz
- Compliance: RoHS II, ELV, WEEE, Prop 65, China RoHS
- Standard Series: RF 300
- Suitable for: Non-plenum applications
- Maximum Power Rating: Data not specified
- Maximum Operating Voltage: Data not specified
Buy the Belden Series RF 300 Coaxial Cable: 7809A
Discover the high-quality RF coaxial cable 7809A perfect for wireless, satellite, and broadcast systems. Featuring a 13 AWG copper core, 95% shield coverage, and durable polyethylene jacket, it ensures optimal signal integrity and durability. Swept tested up to 6 GHz, the cable complies with RoHS II, ELV, and WEEE standards for environmental safety. Whether for indoor or outdoor use, this cable provides excellent shielding, flexibility, and ease of installation, making it the preferred choice for professional RF and communication setups.
Buy Belden 7809A now and experience unmatched reliability and high-frequency performance for wireless and broadcast applications.
Frequently Asked Questions
Where can I buy BELDEN 7809A0101000?
You can click on the BUY or RFQ button to purchase 7809A0101000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 7809A0101000?
You can download the 7809A0101000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 7809A0101000?
BELDEN
