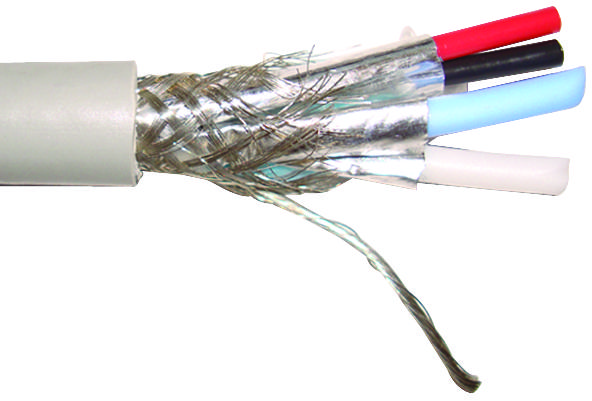

BELDEN 7897AT5U500 Shielded Twisted Pair Cable
The Belden 7897A T5U500 is a robust shielded twisted pair cable specifically engineered for ODVA DeviceNet networks. It combines 15 AWG and 18 AWG stranded tinned copper conductors, providing a reliable signal path. The cable's construction includes PVC/Nylon insulation for power pairs and FEP insulation for data pairs, ensuring optimal performance. A critical feature is the comprehensive shielding – a layer of aluminum foil-polyester tape and an overall tinned copper braid – which effectively minimizes electromagnetic interference. The oil and UV-resistant PVC jacket enhances durability in harsh industrial settings. This cable is ideal for applications requiring reliable data transmission and robust physical protection, commonly found in industrial automation and control systems.
BELDEN 7897AT5U500 Shielded Twisted Pair Cable Specifications:
- AWG: 15, 18
- Stranding: 19x28, 19x30
- Conductor Material: TC - Tinned Copper
- Insulation: PVC/Nylon, FEP
- Shielding: Aluminum Foil-Polyester Tape, Tinned Copper Braid
- Jacket Material: PVC
- Nominal Outer Shield DCR: 1.8 Ohm/1000ft, 6.9 Ohm/1000ft
- Capacitance: 12 pF/ft
- Impedance: 100 Ohm
- Max Delay: 1.36 ns/ft
- Max Recommended Current: 8.0 Amps per conductor
- UL Voltage Rating: 600V RMS
- Operating Temp Range: -20°C To +75°C
- Bulk Cable Weight: 135 lbs/1000ft
- Max Recommended Pulling Tension: 190 lbs
- Min Bend Radius: 4.4 in
- NEC Specification: TC-ER
- Oil Resistance: Yes
- Sunlight Resistance: Yes
- EU RoHS Compliant: Yes
- CA Prop 65 Compliant: Yes
- MII Order #39 Compliant: Yes
Buy the 7897A T5U500 Belden Shielded Twisted Pair Cable | myMectronic
Purchase the Belden 7897A T5U500 Data Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy BELDEN 7897AT5U500?
You can click on the BUY or RFQ button to purchase 7897AT5U500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 7897AT5U500?
You can download the 7897AT5U500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 7897AT5U500?
BELDEN
