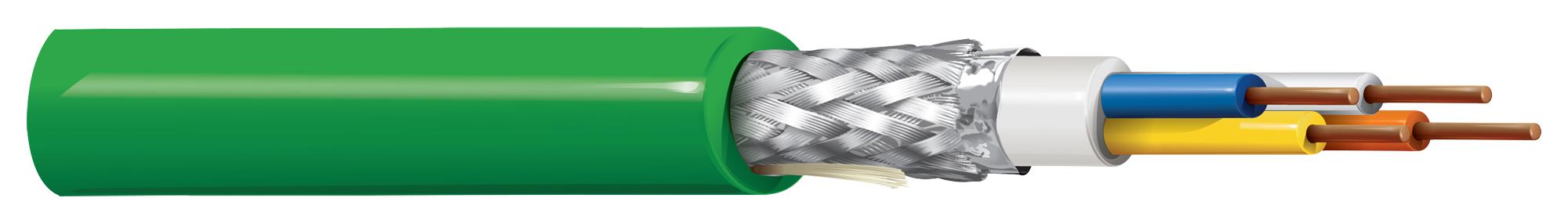

BELDEN 7960A1SW2000 Industrial Ethernet Cable
The Category 5e DataTuff Quad Cable features four 22 AWG solid bare copper conductors with polyolefin insulation, FRPE bedding, and a sunlight- and oil-resistant PVC jacket, suitable for industrial Ethernet, outdoor, and harsh environment applications. It complies with UL1685 FT4 flame test and is approved for cable tray installation in hazardous and non-hazardous areas. With a nominal diameter of 0.268 inches, it offers excellent electrical performance, durability, and flexibility for networking and industrial environments, supporting high-speed data transmission with low capacitance and resistance.
BELDEN 7960A1SW2000 Industrial Ethernet Cable Specifications:
- Conductors: 4 x 22 AWG solid bare copper
- Insulation Material: Polyolefin
- Inner Jacket Material: FRPE
- Outer Shield Material: Aluminum/B Plated
- Outer Jacket Material: Sunlight- and oil-resistant PVC
- Nominal Diameter: 0.268 inches
- Temperature Range: -20°C to +80°C (installation), -40°C to +80°C (operating and storage)
- Minimum Bend Radius: 2.560 inches
- Maximum Pulling Tension: 55 lbs
- UL Flame Test: FT4 / IEEE 1202 Vertical Tray Flame Test
- Standards: UL 1685, TIA 568.02, RoHS Compliant
- Application: Industrial Ethernet, outdoor and hazardous environments, Category 5e data network, Profinet, 100BaseTX
Buy the Belden Series 7960A Ethernet Cable: 22 AWG Multi-Conductor Category 5e DataTuff
Get the Belden Series 7960A Industrial Ethernet Cable online today for robust and dependable networking in harsh environments. Designed with four 22 AWG copper conductors, it is ideal for outdoor, industrial, and hazardous area applications. Its UV- and oil-resistant PVC jacket ensures durability against sunlight and oils, while UL1685 FT4 flame testing guarantees safety compliance. The cable's low capacitance and resistance support high-speed data transfer, making it perfect for industrial Ethernet, Profinet, and outdoor network installations. Purchase now for immediate improvement in network reliability and performance.
Order your Belden Series 7960A Ethernet Cable today and ensure reliable high-speed connectivity for harsh industrial and outdoor environments.
