BELDEN 7962A1SW1000 Industrial Ethernet Cable

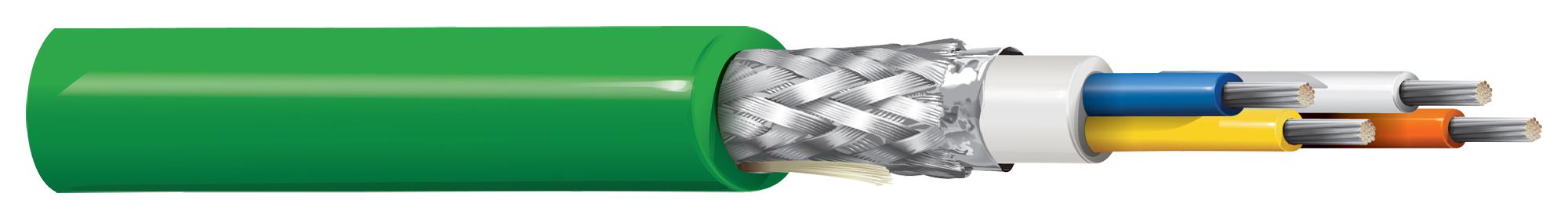

The Belden 7962A Multi-Conductor Category 5e DataTuff cable is designed for harsh industrial environments and continuous flex applications. It features 22 AWG stranded tinned copper conductors, polyolefin insulation, and a durable TPE jacket resistant to sunlight and oil. Suitable for outdoor and hazardous areas, this cable complies with UL and CE standards, includes a polyethylene inner jacket, aluminum foil tape, and braided shield for enhanced protection. It supports applications like Ethernet, ProfiNet, and 100BaseTX, offering reliable performance in demanding industrial settings with easy installation and high durability.
BELDEN 7962A1SW1000 Industrial Ethernet Cable Specifications:
- Conductor: 22 AWG stranded tinned copper
- Insulation Material: Polyolefin
- Inner Jacket: Polyethylene
- Outer Shield: Aluminum foil tape and braid
- Outer Jacket Material: TPE (Thermoplastic Elastomer)
- Overall Diameter: 0.276 in.
- Temperature Range (Storage): -40°C to +80°C
- Installation Temp: -20°C to +60°C
- Operating Temp: -40°C to +80°C
- Weight: 46 lbs/1000 ft
- Maximum Pulling Tension: 55 lbs
- Seam: Rip cord included
- Compliance: UL, CE, RoHS, WEEE, Prop 65
- Standards: TIA 568.02, UL 1666 Flame Test, UL Style 20626 600V 80°C
- Suitable for outdoor, sunlight, and oil resistance, with UL flame testing for vertical tray use
Buy the Belden Series DataTuff Ethernet Cable: 7962A
Buy Belden 7962A industrial Ethernet cable online today for your demanding industrial and outdoor networking applications. Designed with 22 AWG stranded tinned copper conductors, it features a TPE outer jacket resistant to sunlight and oil, ensuring durability in harsh environments. Suitable for continuous flex and outdoor use, this cable also meets UL and CE standards, providing safe, reliable performance in hazardous locations. Perfect for Ethernet, ProfiNet, and other industrial Ethernet applications, its rugged construction guarantees long-lasting, dependable signal transmission even in tough conditions. Order now for fast delivery and superior network reliability.
Get Belden 7962A today—built for industrial harsh environments and reliable Ethernet connectivity.
Frequently Asked Questions
Where can I buy BELDEN 7962A1SW1000?
You can click on the BUY or RFQ button to purchase 7962A1SW1000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 7962A1SW1000?
You can download the 7962A1SW1000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 7962A1SW1000?
BELDEN
