BELDEN 8103060500 Data Cable
This 500-foot, multi-conductor computer cable is designed for high-speed data transfer with low capacitance shielding. It features 24 AWG stranded tinned copper conductors insulated with foam polyethylene, twisted into pairs. The cable is shielded with an overall aluminum foil-polyester tape covering 100%, along with a 65% coverage braid of tinned copper for durability and noise resistance. Capable of handling 1.5A at 25°C, it operates within -30°C to 80°C. Suitable for electronic, networking, and communication systems, this cable ensures reliable signal integrity with high flexibility and robust construction.
BELDEN 8103060500 Data Cable Specifications:
- Conductor: 24 AWG stranded (7x32) tinned copper
- Insulation Material: Datalene® Foam Polyethylene (0.013 inch thick)
- Outer Shield: Aluminum foil-polyester tape (100% coverage)
- Shield Braid: Tinned copper braid (65% coverage)
- Outer Jacket: PVC material
- Operating Temperature Range: -30°C to +80°C
- Maximum Pulling Tension: 38.5 pounds
- Impedance: 100 ohms
- Capacitance: Low capacitance design for high-speed data
- Current Rating: 1.5 Amps at 25°C
- Voltage Rating: 300 V RMS
- Bulk Cable Weight: 39 lbs per 1000 ft
- Length: 500 feet
- Construction: Twisted pairs, overall shielding
- Compliance: UL UL 2919, RoHS, WEEE, CE, Prop 65
- Flame Test: UL1685 UL loading
- Plenum: No
- Max Velocity of Propagation: Not specified
- Nominal Characteristic Impedance: 100 ohms

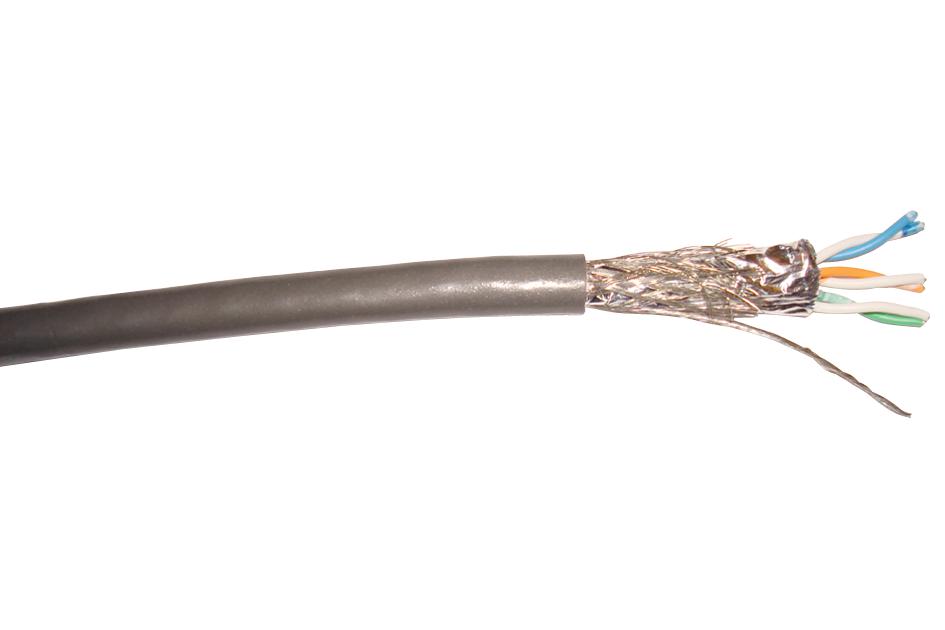

Buy the Belden 8103 – Reliable Data Transmission Cable for Industrial Applications
Purchase the Belden 8103 low capacitance computer cable online today. Designed for high-speed data transfer with reliable shielding, it features 24 AWG tinned copper conductors insulated with foam polyethylene. The cable's overall aluminum foil-polyester shield and braid provide excellent noise immunity. Its robust construction supports a maximum pulling tension of 38.5 pounds and operates within a temperature range of -30°C to 80°C, making it ideal for electronic, communication, and data networking systems requiring high reliability and durability.
Get Belden 8103 today—built for precision and long-lasting durability in electronic and networking environments.
Frequently Asked Questions
Where can I buy BELDEN 8103060500?
You can click on the BUY or RFQ button to purchase 8103060500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8103060500?
You can download the 8103060500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8103060500?
BELDEN
