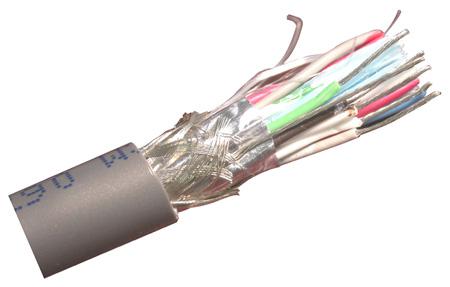

BELDEN 8110060100 Multi-Conductor Data Cable
This low capacitance multi-conductor computer cable is designed for high-speed data transmission with EIA RS-232 and 422 standards. It features 24 AWG stranded copper conductors with Datalene insulation, twisted pairs, and a highly effective shielding system including a 100% coverage Beldfoil shield and 65% coverage TC braid shield. The cable has a PVC jacket, operates within -20°C to +80°C, and is compliant with RoHS, UL, and other environmental standards. Ideal for industrial data applications requiring reliable performance and low interference.
BELDEN 8110060100 Multi-Conductor Data Cable Specifications:
- Conductor Material: Copper
- Conductor Size: 24 AWG
- Insulation Material: Datalene® Foam Polyethylene (FPE), 0.013 inch
- Outer Shield: Aluminum Foil-Polyester Tape, 100% coverage
- Shield Drain Wire: Tinned Copper, AWG 7332
- Outer Jacket Material: PVC
- Operating Temperature Range: -20°C to +80°C
- UL Temperature Rating: 80°C
- Cable Weight: 82 lbs/1000 ft
- Maximum Pulling Tension: 115,500 lbs
- Minimum Bend Radius: 4.5 inches
- Applicable Standards: UL 2919, RoHS, CE, ELV, WEEE, Prop 65
- Characteristic Impedance: 30V RMS, 300V RMS Capacitance: Conductor to Conductor, and Conductor to Shield
- Velocity of Propagation: Not specified
- Compliance: RoHS, UL Flame Test UL1685, Plenum Non-Applicable
- Applicable Specification: UL Style 2919 (30 V, 80°C)
Buy the Belden 8110 U– Reliable Data Cable for Industrial Applications
Purchase Belden 8110 multi-conductor computer cable online for reliable high-speed data communication. Featuring 24 AWG copper conductors, Datalene insulation, and advanced foil and braid shielding, this cable ensures minimal interference and optimal signal integrity. Perfect for industrial and professional data systems, it complies with UL UL1685, CE, RoHS, and other standards for safety and environmental regulations. Its durable PVC jacket withstands harsh conditions, and its flexible design allows easy installation. Order now to ensure your data transmission needs are efficiently met with quality and durability.
Get Belden 8110 today—built for high-speed, low-distortion data transmission in industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 8110060100?
You can click on the BUY or RFQ button to purchase 8110060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8110060100?
You can download the 8110060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8110060100?
BELDEN
