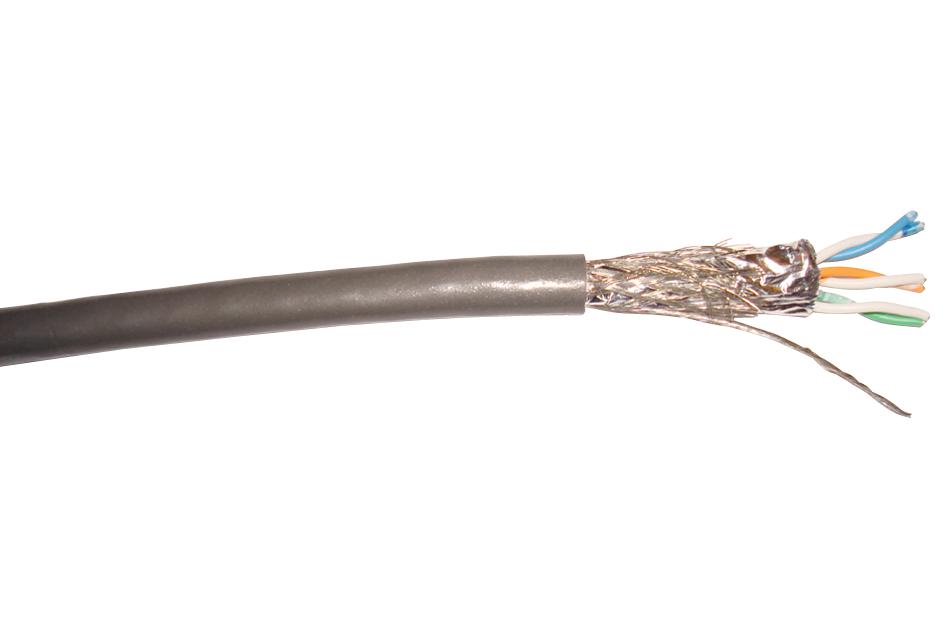

BELDEN 8138060100 Data Communication Cable
The Belden 8138 multi-conductor cable is designed for low capacitance data transmissions, suitable for EIA RS-232 and RS-485 applications. It features 28 AWG stranded TC conductors with Datalene insulation, a foil and braid shield for noise reduction, and a durable PVC jacket. This cable offers high-speed data handling with low dielectric constant and excellent crush resistance. It complies with various international standards including UL, RoHS, and WEEE, and is suitable for industrial automation, control systems, and reliable data communication networks, ensuring long-lasting performance in demanding environments.
BELDEN 8138060100 Data Communication Cable Specifications:
- Conductor: 28 AWG stranded (7x36) TC conductors
- Insulation Material: Datalene®
- Outer Shield: Beldfoil® aluminum foil-polyester tape and TC braid shield with 65% coverage
- Outer Shield Material: Tinned Copper
- Outer Shield Drain Wire: 5 AWG (7x36 TC - Tinned Copper)
- Outer Jacket Material: PVC
- Operating Temperature Range: 20°C To +80°C
- UL Temperature Rating: 80°C
- Bulk Cable Weight: 47 lbs/1000 ft
- Minimum Bend Radius: 3.500 inches
- Applicable Standards & Environmental Compliance: UL Style 2919, RoHS, ELV, WEEE, Prop 65, China RoHS
- Flame Test: UL1685 UL loading
- Plenum Rating: No
- Nominal Characteristic Impedance: Not specified
- Nominal Capacitance: Not specified
- Maximum Operating Voltage: 30 V
- Maximum Recommended Current: Not specified
Buy the Belden 8138 – Reliable Data Communication Cable for Industrial Applications
Order the Belden 8138 data communication cable online today for high-speed, low-capacitance data transmission in industrial environments. Designed with 28 AWG stranded conductors, Datalene insulation, and robust shielding, this cable ensures reliable performance for EIA RS-232 and RS-485 applications. Its durable PVC jacket provides excellent physical protection, making it suitable for demanding applications. With compliance to UL, RoHS, and other standards, the Belden 8138 offers safe handling, high-speed data transfer, and long-term durability. Purchase online now for quick delivery and professional-grade quality.
Get Belden 8138 today—built for precision and long-lasting durability in industrial control and data communication systems.
Frequently Asked Questions
Where can I buy BELDEN 8138060100?
You can click on the BUY or RFQ button to purchase 8138060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8138060100?
You can download the 8138060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8138060100?
BELDEN
