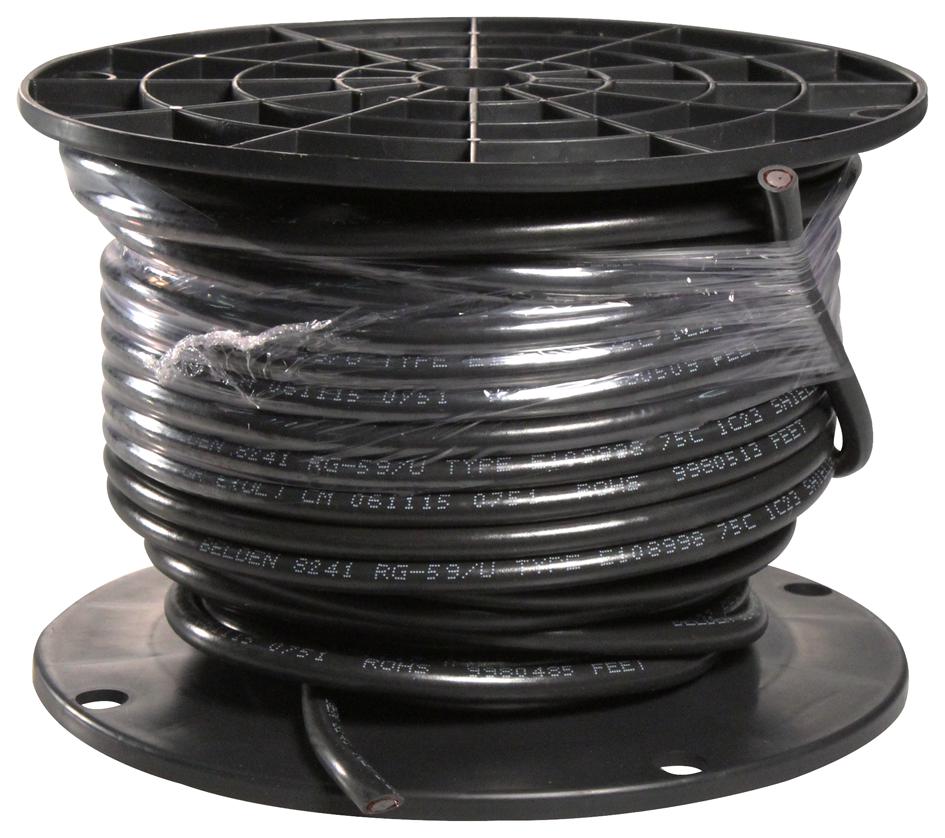

BELDEN 8241010100 Coaxial Cable
This 100-foot RG59 coaxial cable is ideal for transmitting television, video, or signal connections in industrial and communications applications. It features a 23 AWG solid bare copper conductor or copper-covered steel conductor, polyethylene insulation, a bare copper braid shield with 95% coverage, and a black PVC jacket for durability and reliability. Designed for indoor use, it offers a characteristic impedance of 75 ohms, a velocity of propagation of 66%, a capacitance of 20.5 pF/ft, and a maximum voltage of 300 V RMS, ensuring consistent electrical performance.
BELDEN 8241010100 Coaxial Cable Specifications:
- Conductor: 23 AWG solid bare copper or copper-covered steel
- Insulation Material: Polyethylene
- Outer Shield Material: Bare copper braid with 95% coverage
- Outer Jacket Material: PVC
- Overall Diameter: 0.240 in.
- Operating Temperature Range: 40°C to +75°C
- UL Temperature Rating: 75°C
- Weight: 37 lbs per 1000 ft
- Max Recommended Pulling Tension: 62 lbs
- Nominal Impedance: 75 ohms
- Velocity of Propagation: 66%
- Capacitance Conductor to Shield: 20.5 pF/ft
- Max Operating Voltage: 300 V RMS
- Put-Up: 100 ft reel, Red color
- UL Flame Test: UL1685 UL Loading
- Suitability: Indoor use, non-plenum
- Applicable Standards: UL Style 1354, RoHS compliant, WEEE, ELV, and Prop 65 compliant
Buy the Belden 8241 U+2013 Reliable Coaxial Cable for Industrial Applications
Purchase your Belden 8241 100-foot RG59 coaxial cable online today and enjoy dependable, high-quality signal transmission for your video, television, and communication needs. Engineered with a solid copper conductor, polyethylene insulation, and a copper braid shield, this cable provides consistent electrical performance and durability. Its easy-to-install design, UL certification, and suitability for indoor applications make it an excellent choice for broadcasters, electrical contractors, and AV professionals. Secure your supply now and experience hassle-free installation and reliable operation in your projects.
Order your Belden Series 8241 RG59 coaxial cable today and ensure reliable signal transmission for all your television and networking projects.
Frequently Asked Questions
Where can I buy BELDEN 8241010100?
You can click on the BUY or RFQ button to purchase 8241010100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8241010100?
You can download the 8241010100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8241010100?
BELDEN
