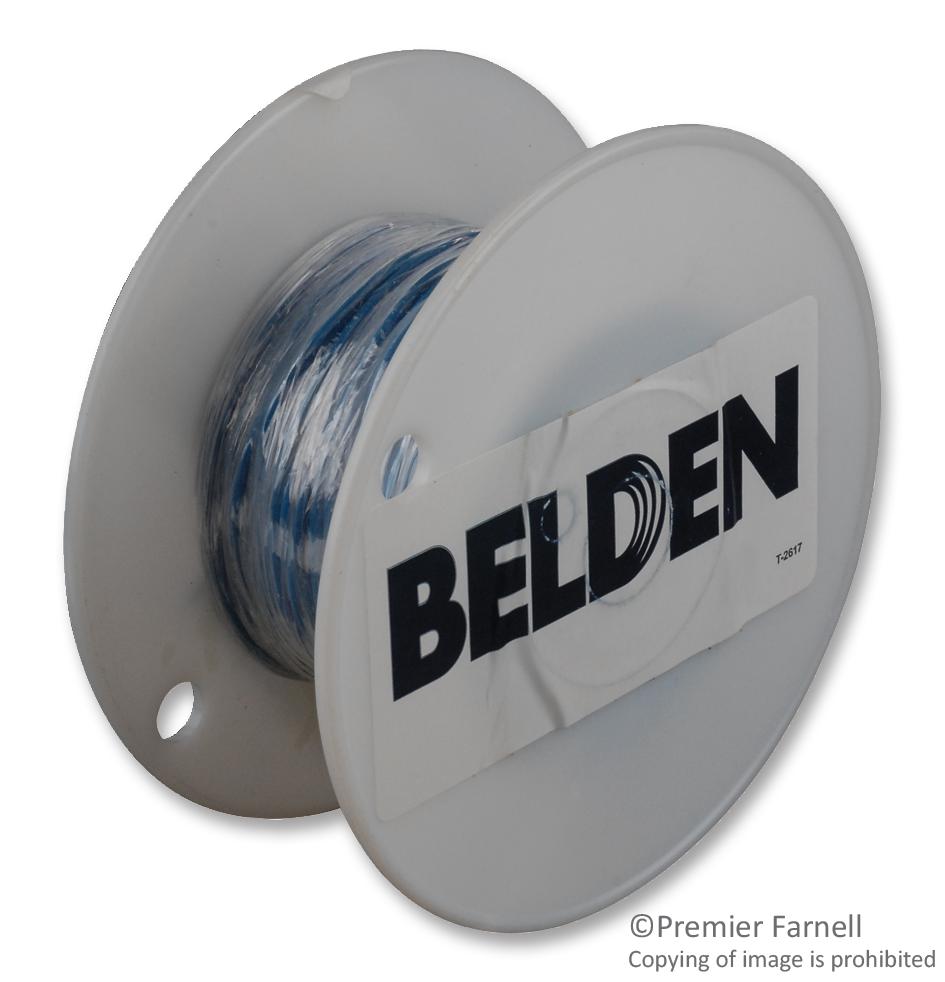

BELDEN 83009006100 High-Temperature Hook-up Wire
The 83009 006100 is a 30.5-meter blue high-temperature hookup wire featuring a stranded silver-coated copper conductor and extruded TFE PTFE insulation. Designed for demanding applications, this UL AWM style 1371 wire withstands temperatures up to 200°C and has a nominal diameter of 0.068 inches. It complies with multiple safety and environmental standards including UL, RoHS, CE, and WEEE directives. Ideal for use in computers, industrial equipment, automotive systems, and aerospace, this flexible, durable wire offers reliable performance in harsh conditions and high-temperature environments.
BELDEN 83009006100 High-Temperature Hook-up Wire Specifications:
- Overall Diameter: 0.068 inches
- Insulation Material: TFE (Teflon) extruded insulation
- Conductor Type: Stranded silver-coated copper
- Operating Temperature Range: -70°C to +200°C
- Bulk Length: 30.5 meters (100 feet)
- Color: Blue
- Flammability Rating: UL 94V-0
- Applicable Standards: UL AWM Style 1371, RoHS II, CE, WEEE, Prop 65, MIL-W-16878/4
- Voltage Rating: 600 V
- Mechanical & Environmental: Suitable for high-temperature, flexible, and durable wiring in industrial, military, and aerospace applications.
- Flame Test: UL Flame Test: V-0
Buy the Belden Series 83009 High-Temperature Hook-up Wire: 83009006100
Order the Belden 83009006100 high-temperature hookup wire online today for dependable performance in extreme temperatures. With stranded silver-coated copper conductors and TFE PTFE insulation, this UL-rated cable is perfect for industrial, aerospace, automotive, and military applications. Measuring 30.5 meters with a 0.068-inch diameter, it offers excellent flexibility, durability, and compliance with environmental standards. Purchase now for quality wiring solutions that ensure safety, reliability, and long-lasting operation in harsh conditions and high-temperature environments.
Get Belden 83009006100 today—built for high-temperature performance and reliable signal transmission in demanding environments.
Frequently Asked Questions
Where can I buy BELDEN 83009006100?
You can click on the BUY or RFQ button to purchase 83009006100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 83009006100?
You can download the 83009006100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 83009006100?
BELDEN
