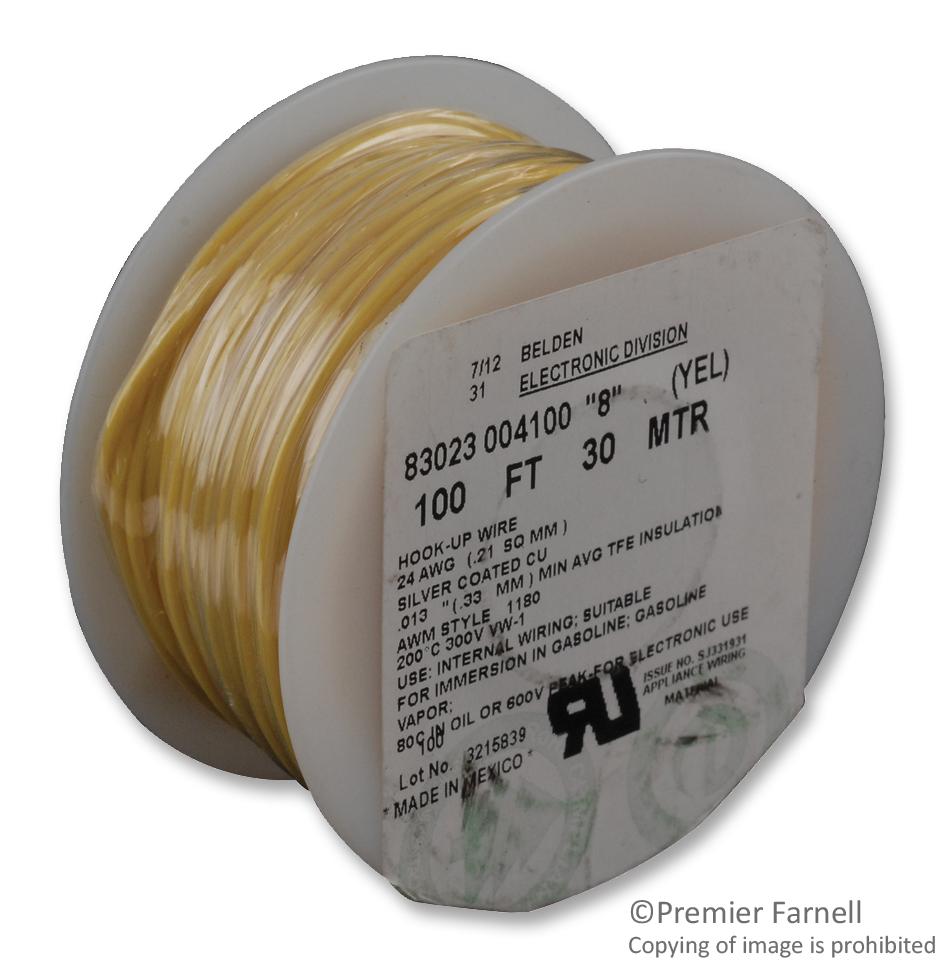

BELDEN 83023004100 Hook-up/Lead Wire
The BELDEN 83023 Hook-up/Lead Wire is a versatile solution for various industrial and commercial applications. Constructed with a stranded silver-coated copper conductor and insulated with extruded TFE Teflon, this wire provides excellent electrical performance and resistance to harsh environments. Its flexible design and broad operating temperature range (-70°C to +200°C) make it suitable for use in appliances, electronics, and machinery. Compliant with RoHS and other industry standards, the 83023 wire ensures reliable and safe operation.
BELDEN 83023004100 Hook-up/Lead Wire Specifications:
- Conductor Material: SPC - Silver Plated Copper
- AWG: 24
- Number of Conductors: 1
- Insulation Material: TFE - Tetrafluoroethylene
- Insulation Wall Thickness: 0.015 in
- Overall Nominal Diameter: 0.054 in
- Operating Temperature Range: -70°C To +200°C
- Bulk Cable Weight: 3 lbs/1000 ft
- UL Rating: 300 V RMS, 200°C
- EU RoHS Compliance Date: 04/01/2005
- UL Flame Test: VW-1
- Nominal Conductor DC Resistance: 24.000 Ohm/1000 ft
- Max. Operating Voltage - Other: 1000 V Mil-W-16878
- Max. Recommended Current: 3.3 amps (Mil-Std-975M Table 3.16)
