BELDEN 83319E009100 Shielded Multi-Conductor Cable
The 83319E 009100 is a 100-foot, 2-conductor shielded cable featuring 22 AWG stranded (19 x 34) silver-plated copper conductors. It is equipped with extruded TFE (PTFE) insulation, a silver-plated copper braid shield providing 85% coverage, and a white TFE PTFE tape-wrapped jacket. Designed for low-voltage analog signals and data transmission, it connects controllers to sensors, relays, and alarms in industrial environments. Key electrical specs include a capacitance of 29.9 pF/ft, conductor resistance of 14.6 ohms per 1000 ft at 20°C, and shield resistance of 5.7 ohms per 1000 ft, ensuring reliable performance across various industrial applications.
BELDEN 83319E009100 Shielded Multi-Conductor Cable Specifications:
- Conductor Material: Silver-plated copper
- Conductor Gauge: 22 AWG (19 x 34 strands)
- Insulation: TFE PTFE, extruded
- Shield: Silver-plated copper braid, 85% coverage
- Jacket: White TFE PTFE tape-wrapped
- Overall Diameter: 0.143 in.
- Operating Temperature Range: 65°C to +200°C
- Cable Weight: 17 lbs/1000 ft
- Max Pulling Tension: 43,600 lbs
- Min Bend Radius: 1.5 in.
- Capacitance Conductor to Conductor: 29.9 pF/ft
- Capacitance Conductor to Shield: 49.2%
- DC Resistance Conductor: 14.6 ohms/1000 ft at 20°C
- Shield Resistance: 5.7 ohms/1000 ft at 20°C
- Applicable Standards: MIL-W-16878/4 Type E, RoHS, CE, WEEE, Prop 65
- Plenum/Non-Plenum: No
- Max Operational Voltage (non-UL): Not specified
- Recommended Current: 5 Amps per conductor at 25°C

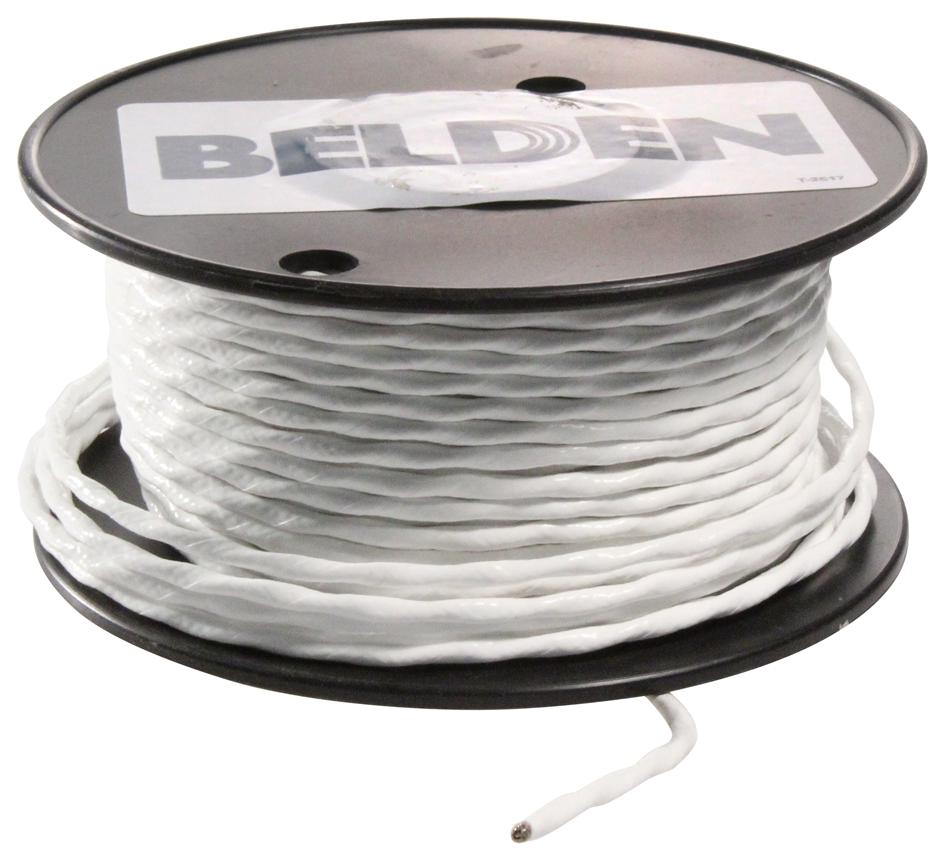

Buy the Belden 83319E – Reliable Shielded Signal Cable for Industrial Applications
Purchase the Belden 83319E shielded multi-conductor cable online today to benefit from premium quality, durable TFE insulation, excellent shielding, and reliable signal transmission for industrial automation, control systems, and instrumentation. This 22 AWG cable features silver-plated copper conductors, high-temperature resistance up to 200°C, and robust construction to withstand demanding environments. With convenient online ordering, immediate shipment, and competitive prices, ensure your automation projects succeed with this dependable, high-performance cable designed for long-term industrial use.
Order your Belden 83319E shielded cable today and ensure high-quality data transmission in your industrial projects with reliable performance.
