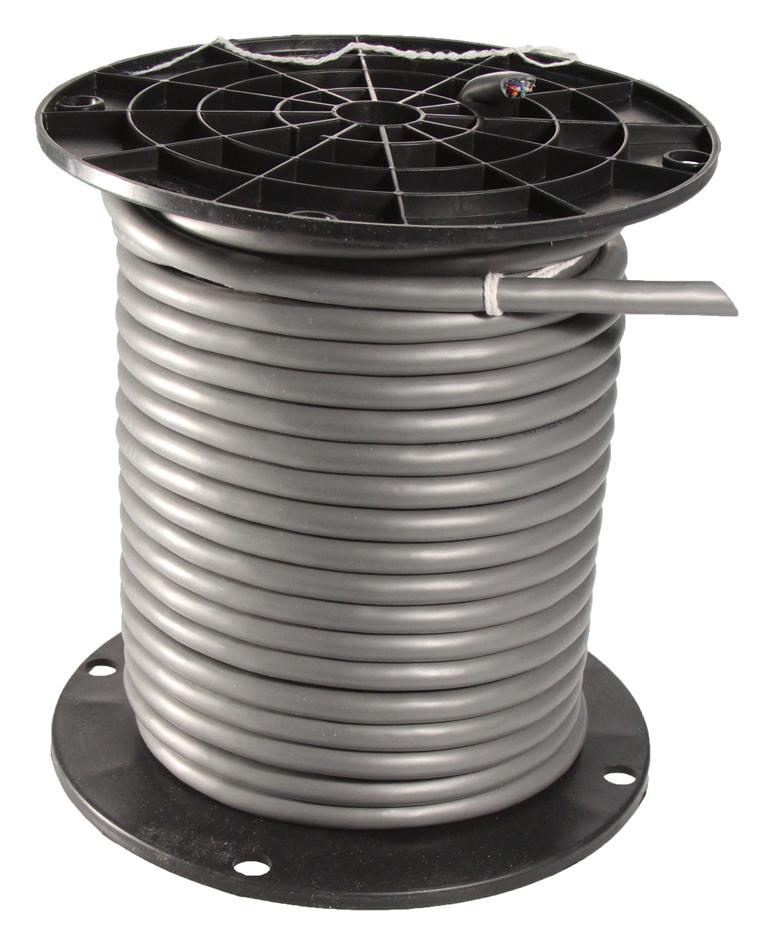

BELDEN 8336060100 Shielded Computer Cable
The 8336 060100 shielded computer cable is a 100-foot, 6-pair, 12-conductor low capacitance cable designed for EIA RS-232 communications. It features stranded tinned copper conductors with semi-rigid PVC insulation to ensure durability and signal integrity. The overall shield combines 100% aluminum foil-polyester tape with a 65% coverage tinned copper braid to reduce interference. Suitable for computer, networking, and peripheral connections, it supports a maximum current of 1.6A at 25°C, operates within -30°C to 80°C, and withstands a pulling tension of 95 pounds. It complies with multiple industry standards and EU regulations, making it ideal for industrial and communication applications.
BELDEN 8336060100 Shielded Computer Cable Specifications:
- Conductor: 24 AWG stranded tinned copper
- Insulation: semi-rigid PVC
- Shield: 100% aluminum foil-polyester tape, 65% tinned copper braid
- Outer Jacket: PVC
- Length: 100 feet
- Number of Pairs: 6
- Number of Conductors: 12
- Voltage Rating: 300 V (UL Style 2464)
- Operating Temperature Range: -30°C to +80°C
- Maximum Pulling Tension: 95 lbs
- Current Support: 1.6A at 25°C
- Applicable Standards: UL1685 FTA, FT4 CSA Flame Test, RoHS, CE Mark, EU directives
- Overall Shield Coverage: 100% foil, 65% braid
- Flame Resistance: UL1685 FTA, FT4 CSA
- Certifications: RoHS, CE, UL, CSA
Buy the Belden 8336 Series 8336 060100 – Reliable Shielded Computer Cable for Industrial Applications
Purchase the Belden 8336 060100 shielded computer cable online today to ensure your communication systems are protected against interference. With 6 pairs and 12 conductors, this UL and CE compliant cable offers low capacitance and superior shielding, ideal for reliable data transmission in industrial, networking, and computer applications. Its durable construction withstands temperatures from -30°C to 80°C and supports a current of 1.6A at 25°C. Order now to enjoy fast shipping and expert support for your connectivity needs.
Order your Belden Series 8336 060100 shielded computer cable today and ensure your projects benefit from dependable, interference-resistant signal transmission.
