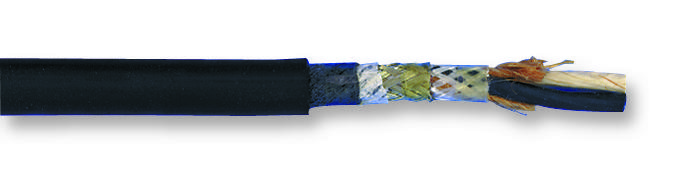

BELDEN 84120101000 Microphone Cable
The Belden 8412 microphone cable is a rugged and reliable solution for balanced analog audio applications, particularly suited for studio and live performance environments. Constructed with 20 AWG tinned copper conductors, it offers high conductivity and minimizes signal loss. The EPDM insulation and rayon braid shield provide excellent protection against interference, while the cotton serve and EPDM jacket ensure durability and flexibility. This cable is RoHS compliant and designed for indoor use, making it a versatile choice for a wide range of audio applications.
BELDEN 84120101000 Microphone Cable Specifications:
- Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
- Conductor Material: Tinned Copper (High Conductivity)
- Conductor Color Code: White, Black
- Insulation Material: EPDM - Ethylene Propylene Diene Monomer
- Insulation Thickness: 0.023 in (0.58 mm)
- Insulation Diameter: 0.083 in (2.1 mm)
- Shield Type: Rayon®
- Shield Coverage: 85%
- Outer Jacket Material: EPDM - Ethylene Propylene Diene Monomer
- Separator Material: Cotton Serve
- Separator Thickness: 0.035 in (0.89 mm)
- Overall Cable Diameter: 0.262 in (6.65 mm)
- Conductor DCR: 10.6 Ohm/1000ft (34.8 Ohm/km)
- Capacitance Cond-to-Co: 33 pF/ft (110 pF/m)
- Capacitance Co-to-Other: 58 pF/ft (190 pF/m)
- Characteristic Impedence: 67 Ohm
- Max Current: 4 Amps per conductor @ 25°C
- Voltage Rating: 600 V
- Operating Temperature: -50°C to +90°C
- Stationary Bend Radius: 3.1 in (79 mm)
- Installation Bend Radius: 3.1 in (79 mm)
- Max Pull Tension: 100 lbs (45 kg)
- Bulk Cable Weight: 44 lbs/1000ft (65 kg/km)
- Environmental Suitability: Indoor (Not Riser or Plenum)
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 8412P
- Revision Date: 07-29-2022
