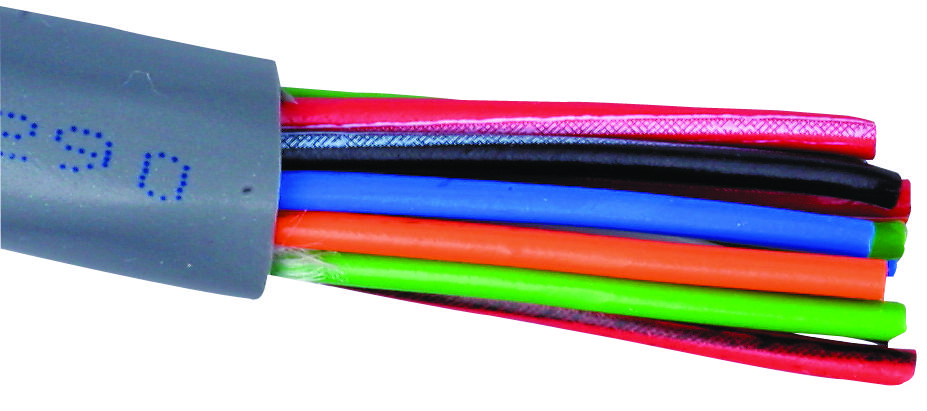

BELDEN 8459060100 Multi-Conductor Cable
The 8459 060100 is a 100-foot, unshielded multi-conductor cable designed for audio, control, and instrumentation applications. It features 22 AWG stranded (7 x 30) tinned copper conductors, PVC insulation, and a chrome PVC jacket. Suitable for low-voltage analog data, it connects controllers, sensors, relays, meters, thermocouples, and alarms within enclosures. It has a conductor-to-shield capacitance of 34 pF per foot, a DC resistance of 15.6 Ω per 1000 feet at 20°C, and passes UL1685 FT4 flame testing. Applications include automation, sensing, and signal processing, ensuring reliable, low-noise connections for industrial wiring setups.
BELDEN 8459060100 Multi-Conductor Cable Specifications:
- Conductor Gauge: 22 AWG, stranded (7 x 30), tin-plated copper
- Insulation Material: PVC
- Outer Jacket Material: Chrome PVC
- Overall Diameter: 0.387 inches
- Operating Temperature Range: -20°C to +80°C
- UL Temperature Rating: 80°C UL AWM Style 2576
- Cable Weight: 101 lbs per 1000 ft
- Maximum Pulling Tension: 228 lbs
- Minimum Bend Radius: 4 inches
- Conductor to Conductor Capacitance: 34 pF/ft
- Conductor DC Resistance: 15.6 Ω per 1000 ft at 20°C
- Max. Operating Voltage: 300 V RMS
- Flame Test: UL1685 FT4
- Agency Compliance: UL, CSA, RoHS, CE, ELV, Prop 65, WEEE, BFR
- Application: Audio, control, instrumentation, automation, sensing
- Put-up Options: 100 ft spools, 7000 ft reels
- Colors: Chrome
- Applicable Standards: UL Style 2576, NEC, CEC
Buy the Buy Belden 8459 Multi-Conductor Cable Part Number 8459060100 Online
Purchase the Belden 8459060100 multi-conductor cable online to ensure high-quality, durable wiring for audio, control, and instrumentation projects. This unshielded cable features 22 AWG stranded tinned copper conductors, PVC insulation, and a chrome PVC jacket, making it suitable for low-voltage signal transmission, automation, sensing, and industrial applications. With a conductor capacitance of 34 pF per foot, DC resistance of 15.6 Ω per 1000 ft, and UL1685 FT4 flame testing, provides safety and reliability. Order now for fast delivery and seamless integration into your control systems.
Get Belden 8459060100 today—built for reliable audio, control, and instrumentation connections with low capacitance and high safety standards.
Frequently Asked Questions
Where can I buy BELDEN 8459060100?
You can click on the BUY or RFQ button to purchase 8459060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8459060100?
You can download the 8459060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8459060100?
BELDEN
