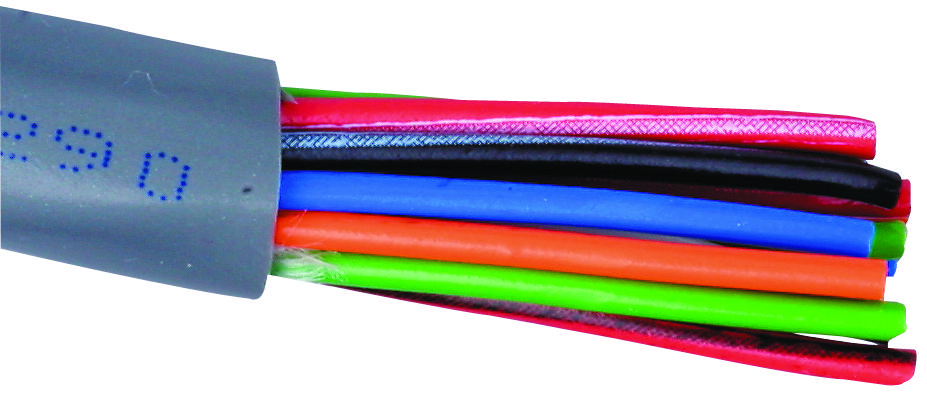

BELDEN 8466060100 Multi-Conductor Control Cable
The 8466 060100 is a 100-foot, 12-conductor unshielded cable designed for audio, control, and instrumentation applications. It features 18 AWG stranded (19 x 30) tinned copper conductors, with PVC insulation and jacket, suitable for low-voltage analog data transmission. This multi-conductor cable connects controllers, sensors, relays, and alarms within enclosures, ensuring reliable signal transfer. It has a conductor-to-conductor capacitance of 26 pF/ft, and a DC resistance of 6.3 Ω/1000 ft at 20°C. UL1685 FT4 flame rated, ideal for automation and signal processing needs.
BELDEN 8466060100 Multi-Conductor Control Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 18 AWG (19 x 30 strands)
- Number of Conductors: 12
- Insulation Material: PVC - Polyvinyl Chloride
- Jacket Material: PVC
- Outer Diameter: 0.412 inch
- Operating Temperature Range: -20°C to +60°C
- Max. Recommended Pulling Tension: 300 lbs.
- UL Flame Test: UL1685 FT4
- Nominal Capacitance: 26 pF/ft
- DC Resistance: 6.3 Ω/1000 ft at 20°C
- Cable Length: 100 feet
- Applicable Standards: UL (UL Style 2598), RoHS, CE Mark
- Outer Shield: Unshielded
- Maximum Voltage: 300 V RMS
Buy the Belden 8466 Multi-Conductor – Reliable Control and Instrumentation Cable for Industrial Applications
Purchase the Belden 8466 series control and instrumentation cable online now to enhance your automation and signal transfer tasks. This unshielded 12-conductor cable features 18 AWG tinned copper conductors with PVC insulation and jacket, rated UL1685 FT4 for flame resistance. Its 100-foot length provides flexible deployment options, supporting low-voltage analog data, control signals, and sensor connections in various industrial and automation environments. Designed for durability, reliability, and compliance with safety standards, order today for quick delivery and seamless integration into your projects.
Order your Belden 8466 series 060100 cable today and ensure your control and instrumentation projects are powered by dependable, UL-rated wiring solutions.
