BELDEN 8866002100 high voltage hook-up wire
The 8866 002100 is a 100-foot, single-conductor hook-up wire featuring 18 AWG tinned copper, conductive polyethylene insulation for voltage stress distribution, and a durable red PVC jacket. Designed for industrial applications, it provides reliable electrical connection with a maximum breakdown voltage of 80,000 V DC. The wire’s construction includes stranded tinned copper conductors, reinforced with a polyethylene layer over the conductor for enhanced performance. Its overall diameter is 0.208 inches, with a jacket thickness of 0.015 inches, making it suitable for high voltage, flexible wiring in challenging environments.
BELDEN 8866002100 high voltage hook-up wire Specifications:
- Conductor Material: Tinned Copper
- AWG: 18
- Number of Conductors: 1
- Insulation Material: Conductive Polyethylene
- Insulation Thickness: 0.008 in.
- Jacket Material: Polyvinyl Chloride (PVC)
- Jacket Thickness: 0.015 in.
- Overall Diameter: 0.208 in.
- Temperature Rating: -60°C to +105°C (non-UL)
- Bulk Cable Weight: 20 lbs per 1000 ft.
- Maximum Operating Voltage: Not specified
- Breakdown Voltage: 80,000 V DC
- Applicable Standards: ROHS, CE, ELV, WEEE, Prop 65, China RoHS
- Plenum Rating: No
- Certifications: RoHS compliant, UL listed in other variants

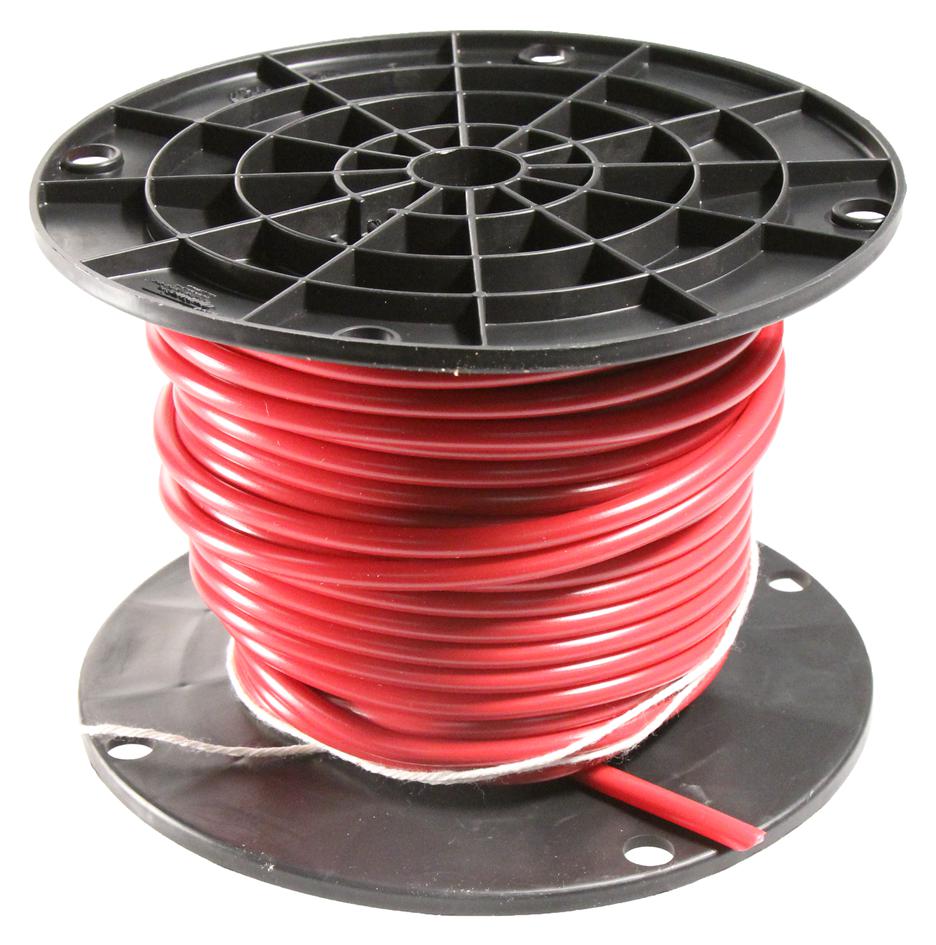

Buy the Buy Belden Hook-up Wire Part Number 8866002100 Online
Enhance your electrical installations with the Belden high voltage hook-up wire, featuring 18 AWG tinned copper conductors, conductive polyethylene insulation for stress distribution, and a robust red PVC jacket. Suitable for demanding industrial environments, it provides excellent voltage capacity with a breakdown voltage of 80,000 V DC. Its stranded design allows for flexible routing, while the durable materials ensure longevity and safety. Purchase online today for reliable, high-performance electrical connections that meet strict industry standards and deliver long-lasting service.
Buy Belden 8866002100 now and experience high voltage reliability with flexible tinned copper conductors and durable PVC insulation for industrial wiring needs.
Frequently Asked Questions
Where can I buy BELDEN 8866002100?
You can click on the BUY or RFQ button to purchase 8866002100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 8866002100?
You can download the 8866002100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 8866002100?
BELDEN
