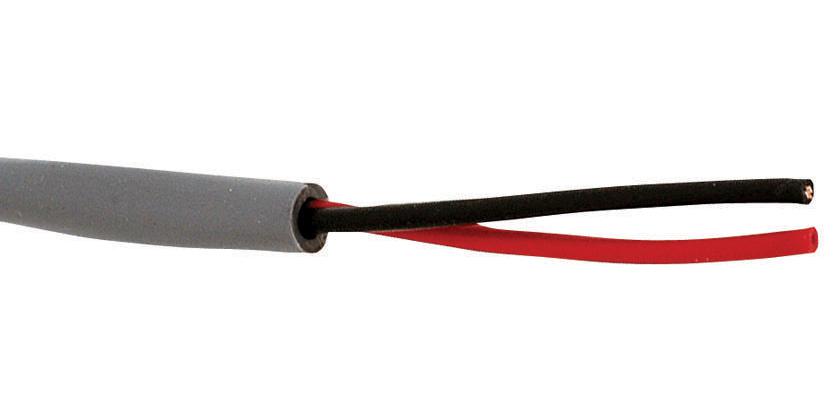

BELDEN 9318060U1000 Power-Limited Tray Cable
The 9318 060U1000 is a 1000-foot, 1-pair, 2-conductor shielded power-limited tray cable. It features stranded tinned copper conductors with PVC insulation and a twisted pair overall shield composed of 100% aluminum foil with polyester tape. The cable is rated for a maximum pulling tension of 26 pounds. It can handle a current of 5.5A at 25°C and operates effectively across a temperature range of -30°C to 105°C. Suitable for power management applications.
BELDEN 9318060U1000 Power-Limited Tray Cable Specifications:
- Total Conductors: 2
- Conductor Material: Tinned copper
- Insulation Material: PVC
- Outer Shield Material: Aluminum foil with polyester tape
- Outer Jacket Material: PVC
- Outer Jacket Diameter: 0.233 in
- Operating Temperature Range: -30°C to 105°C
- UL Temperature Rating: 105°C
- Max Pulling Tension: 26 lbs
- Cable Weight: 32 lbs per 1000 ft
- Shield Coverage: 100% aluminum foil with polyester tape
- Conductor Resistance: Not specified
- Maximum Voltage: 300V
- Suitable for indoor and outdoor use
- Compliance: UL, RoHS, CE, WEEE, Prop 65
- Line Rating: 5.5A at 25°C
Buy the Belden Series 9318 Power-Limited Tray Cable: 9318060U1000
Purchase the Belden 9318060U1000 online today and ensure reliable power distribution for your indoor or outdoor projects. This 1000-foot shielded cable features stranded tinned copper conductors, PVC insulation, and an aluminum foil shield for optimal performance and durability. Rated for a maximum pulling tension of 26 pounds and operating across a temperature range of -30°C to 105°C, it is suitable for various applications requiring safety and compliance with international standards. Order now for fast and secure delivery.
Buy Belden 9318060U1000 now and experience unmatched reliability and performance in power management with shielded, high-quality construction.
Frequently Asked Questions
Where can I buy BELDEN 9318060U1000?
You can click on the BUY or RFQ button to purchase 9318060U1000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9318060U1000?
You can download the 9318060U1000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9318060U1000?
BELDEN
