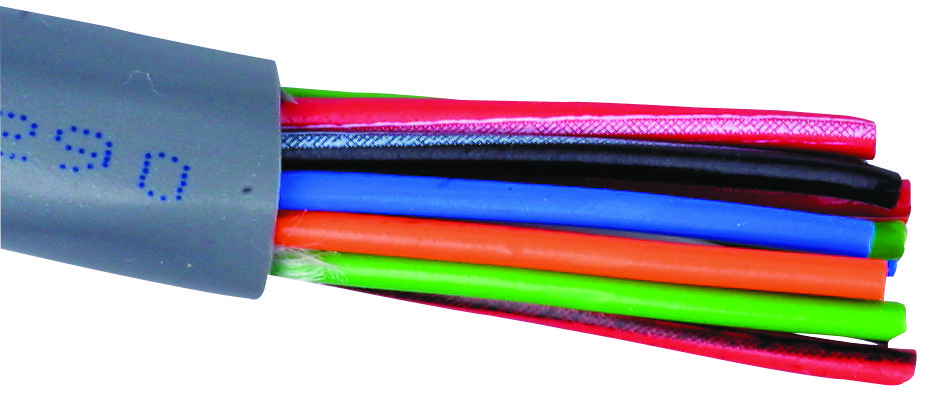

BELDEN 9439060100 Control Cable
The part number 9439 060100 features a 7-conductor unshielded cable with 20 AWG stranded tinned copper conductors, PVC insulation, and a PVC jacket, ideal for low-voltage analog data and signal transmission. Designed for enclosures connecting controllers, sensors, relays, meters, and actuators, it withstands a maximum pulling tension of 382.545 N. With a capacitance of 88.587 pF/m and DC resistance around 35.1067 Ω/km at 20°C, the cable operates within -20°C to 80°C, making it suitable for automation, communication, instrumentation, and sensing applications across industrial, security, and audio systems.
BELDEN 9439060100 Control Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 20 AWG
- Number of Conductors: 7
- Insulation Material: PVC
- Jacket Material: PVC
- Overall Diameter: 0.260 in.
- Operating Temperature Range: -20°C to +80°C
- Max. Pulling Tension: 86 lbs (382.545 N)
- Nominal Capacitance: 88.587 pF/m
- DC Resistance: approximately 35.1067 Ω/km at 20°C
- UL Flame Test: UL1685 FTA Loading
- Standards & Compliance: UL Style 2464, RoHS, CE, WEEE, Prop 65
- Application: Control, instrumentation, sensor signals, automation, industrial control wiring
Buy the Buy Belden Control Cable Part Number 9439 060100 Online
Purchase the Belden control cable part number 9439 060100 online today to upgrade your automation and instrumentation systems with high-quality wiring. This 7-conductor unshielded cable features 20 AWG stranded tinned copper conductors, PVC insulation, and a durable PVC jacket, providing excellent electrical performance and flexibility. Ideal for connecting controllers, sensors, relays, meters, and actuators, it handles temperatures from -20°C to 80°C and withstands high pulling tensions. Efficient, reliable, and compliant with international standards, this cable is perfect for industrial control, automation, and sensor applications.
Order your Belden 9439 060100 control, instrumentation, and sensor cable today and ensure reliable connection for industrial automation and data transmission.
Frequently Asked Questions
Where can I buy BELDEN 9439060100?
You can click on the BUY or RFQ button to purchase 9439060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9439060100?
You can download the 9439060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9439060100?
BELDEN
