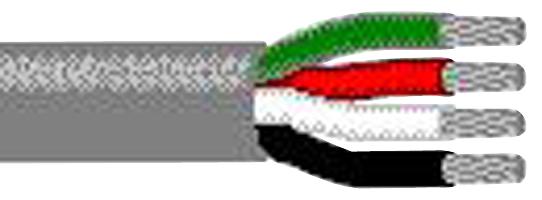

BELDEN 9444060100 Control Instrumentation Cable
The 9444 060100 is a 100-foot, four-conductor unshielded cable ideal for audio, control, and instrumentation applications. It features 20 AWG stranded tinned copper conductors, PVC insulation, and a PVC jacket for durability. Suitable for low-voltage data and signal transmission, it connects controllers, sensors, relays, meters, thermocouples, solenoids, actuators, contactors, push buttons, and alarm systems. Operating efficiently from -20°C to +80°C, it meets UL1685 FT4 flame test standards and adheres to EU RoHS, CE, and UL safety requirements, making it versatile for automation and instrumentation needs.
BELDEN 9444060100 Control Instrumentation Cable Specifications:
- Conductor: 20 AWG stranded (7 x 28) tinned copper
- Insulation Material: PVC
- Jacket Material: PVC
- Overall Diameter: 0.217 inches
- Operating Temperature Range: -20°C to +80°C
- Conductor-to-Conductor Capacitance: approximately 27 pF/ft
- DC Resistance: 10.7 Ω/1000 ft at 20°C
- Maximum Voltage: 300 V UL
- Flame Test: UL1685 FT4
- Bulk Cable Weight: 30 lbs/1000 ft
- Maximum Pulling Tension: 50 lbs
- UL and RoHS compliant, suitable for automation, control, sensing, and instrumentation
- Overall Length: 100 feet, four conductors with PVC jacket
Buy the Buy Belden Control Instrumentation Cable Part Number 9444060100 Online
Enhance your automation and instrumentation projects with the Belden Control Instrumentation Cable. This 100-foot unshielded four-conductor cable ensures durable, reliable data and signal transmission within industrial environments. Featuring 20 AWG stranded tinned copper conductors, PVC insulation, and a flame-rated UL1685 FT4 jacket, it is suitable for low-voltage control, sensing, and alarm systems. Operating efficiently from -20°C to +80°C, it is compliant with EU RoHS and UL standards, making it a versatile solution for sophisticated control and instrumentation applications.
Buy Belden 9444060100 now and experience reliable low-voltage signal transmission for automation and instrumentation systems.
Frequently Asked Questions
Where can I buy BELDEN 9444060100?
You can click on the BUY or RFQ button to purchase 9444060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9444060100?
You can download the 9444060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9444060100?
BELDEN
