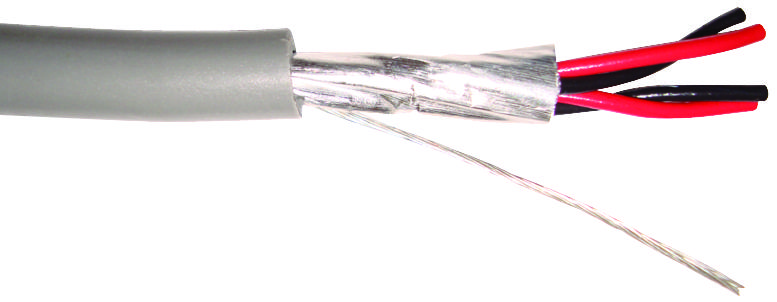

BELDEN 9512060500 Power-Limited Tray Cable
The 9512 060500 is a 500-foot length of 2-pair, 4-conductor shielded power-limited tray cable. It features stranded tinned copper conductors with PVC insulation, and each twisted pair is shielded with 100% aluminum foil and polyester tape coverage. Designed for indoor and outdoor power management, it offers sunlight and burial resistance, with UL, CSA, and EU compliance. Its temperature range is from -30°C to 105°C, with a maximum operating voltage of 300V. Suitable for energy-efficient industrial and building electrical systems, it ensures safety, durability, and reliable signal transmission across various environments.
BELDEN 9512060500 Power-Limited Tray Cable Specifications:
- Conductors: 22 AWG stranded tinned copper, twisted pairs
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Shield: Beldfoil® Aluminum foil with polyester tape, 100% coverage
- Outer Jacket: PVC
- Operating Temperature Range: -30°C to 105°C
- Maximum Operating Voltage: 300V
- UL Flame Test: UL1685 Vertical Tray Flame Test
- CSA Flame Test: FT4
- Flammability Standard: UL 94V-0
- Applicable Standards: UL, CSA, RoHS (EU), WEEE, BFR (EU)
- Suitable Environments: Indoor, outdoor, burial, sunlight-resistant
- Compliance: EU Directives 2002/95/EC, 2011/65/EU (RoHS), 2000/53/EC (ELV), 2002/96/EC (WEEE), 2003/11/EC (BFR), CA Prop 65
- Reel Lengths and Weights: 500 FT, 22.5 LB
Buy the Belden Series 9512 Power-Limited Tray Cable: 9512060500
Order the Belden 9512060500 Power-Limited Tray Cable online today to ensure efficient electrical connections in your industrial or building projects. This shielded, high-quality cable with twisted pairs and PVC insulation provides excellent durability, sun and burial resistance, making it suitable for indoor, outdoor, and underground installations. With compliance to rigorous UL, CSA, and EU standards, this cable guarantees safety, reliability, and excellent signal transmission. Buy now for fast delivery and enjoy confidence in your electrical infrastructure.
Buy Belden 9512060500 now and experience unmatched reliability and performance in power management with durable, shielded cable designed for harsh environments.
Frequently Asked Questions
Where can I buy BELDEN 9512060500?
You can click on the BUY or RFQ button to purchase 9512060500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9512060500?
You can download the 9512060500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9512060500?
BELDEN
