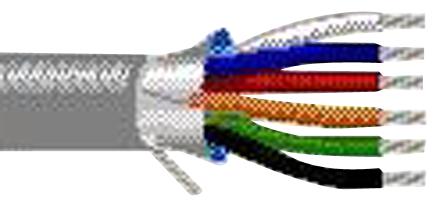

BELDEN 9543060100 Shielded Computer Cable
The 9543 060100 is a 100-foot shielded computer cable designed for low voltage analog data transmission in industrial environments. Featuring 24 AWG stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, and a high-performance Beldfoil® aluminum foil-polyester shield with 100% coverage, it ensures excellent noise immunity. The chrome PVC jacket enhances durability. Ideal for EIA RS-232 communication between controllers, sensors, relays, and meters, it supports connections needing low capacitance and low resistance, making it suitable for sensitive signal transmission. Flame rated UL1685 FT4, compliant with relevant standards, and designed for reliable industrial data communication.
BELDEN 9543060100 Shielded Computer Cable Specifications:
- Conductors: 24 AWG stranded (7 x 32) tinned copper
- Insulation Material: PVC
- Overall Diameter: 0.339 in
- Outer Shield: Beldfoil aluminum foil-polyester tape, 100% coverage
- Outer Jacket: PVC, chrome color
- Capacitance: Conductor to conductor 30pF/ft, conductor to shield 55pF/ft
- DC Resistance: Conductor to conductor 25Ω/1000ft, outer shield 18Ω/1000ft
- Operating Temperature Range: 30°C to 480°C
- UL Flame Test: UL1685 FT4
- Max Recommended Pulling Tension: 137,500 lbs
- Min. Bend Radius: 3.5 inches
- Applicable Standards: UL Style 2464 (300 V, 80°C), RoHS compliant
- Outer Diameter: 0.339 inches
- Application: EIA RS-232 communications, sensor and device interconnections
Buy the Belden 9543 060100 – Reliable Industrial Computer Cable for EIA RS-232 Applications
Experience reliable industrial communication with the shielded computer cable. Featuring 24 AWG tinned copper conductors, PVC insulation, and a high-quality Beldfoil shield, this 100-foot cable offers excellent noise immunity and durability. Designed for EIA RS-232 applications, it connects controllers, sensors, relays, meters, and other devices in industrial environments. UL flame rated UL1685 FT4, compliant with RoHS, it supports low voltage analog signals with optimal capacitance and resistance specifications. Perfect for ensuring stable data transfer in automation and control systems. Buy online now for fast, secure delivery.
Get Belden 9543 060100 today—built for precise signal transmission and long-lasting durability in industrial automation and data communication systems.
Frequently Asked Questions
Where can I buy BELDEN 9543060100?
You can click on the BUY or RFQ button to purchase 9543060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9543060100?
You can download the 9543060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9543060100?
BELDEN
