BELDEN 9730060500 multi-conductor cable

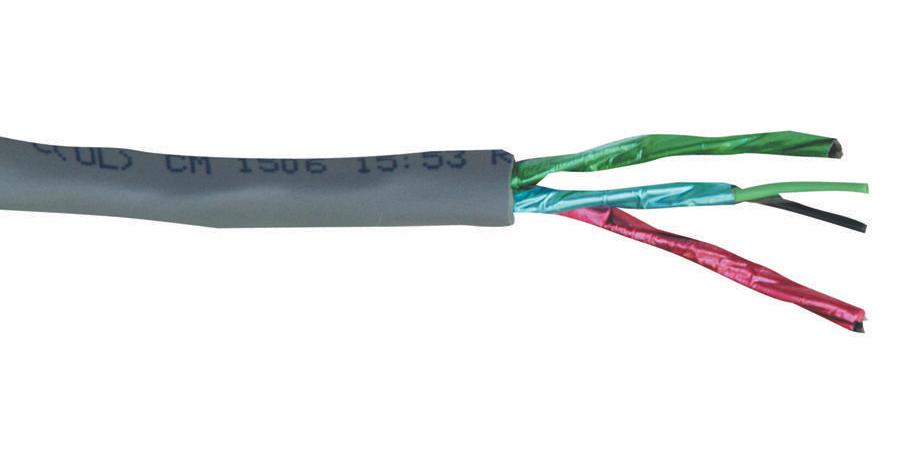

The 9730 060500 is a 500-foot, three-pair, six-conductor shielded snake cable designed for high-speed data transfer and industrial use. It features stranded tinned copper conductors with foam polyethylene insulation, individually shielded with 100% aluminum foil-polyester tape coverage for excellent noise immunity. The cable operates within a temperature range of -20°C to 80°C, has a maximum recommended pulling tension of 51 pounds, and an impedance of 100 ohms. Its lightweight, crush-resistant build makes it ideal for computer, peripheral, and industrial environment applications, ensuring reliable performance and durability.
BELDEN 9730060500 multi-conductor cable Specifications:
- Conductor Material: Tinned Copper
- Conductor AWG: 24
- Insulation Material: Foam Polyethylene (Datalene®)
- Insulation Thickness: 0.019 inches
- Number of Pairs: 3
- Conductors per Pair: 2
- Shielding: Individually shielded with 100% aluminum foil-polyester tape
- Outer Jacket Material: PVC
- Cable Length: 500 feet
- Operating Temperature Range: -20°C to 80°C
- Maximum Pulling Tension: 51 pounds
- Impedance: 100 ohms
- Wire Stranding: 7x32
- Max Operating Voltage: 300 V
- Weight: 42 lbs per 1000 ft
- Certifications: UL, RoHS Compliant, various agency standards
Buy the Belden Series 9730 Snake Cable: 9730060500
Purchase the Belden 9730060500 multi-conductor shielded snake cable online to ensure high-quality, durable, and reliable performance for industrial, computer, and peripheral applications. This 500-foot cable features three twisted pairs with individually shielded conductors, foam polyethylene insulation, and an overall PVC jacket, making it suitable for high-speed data transfer and noise immunity in demanding environments. With a maximum pulling tension of 51 pounds, its lightweight and crush-resistant design ensures easy handling and longevity, perfect for technical and professional use in various industrial settings and data installations.
Get Belden 9730060500 today—built for high-speed data transfer, durability, and reliable industrial performance.
