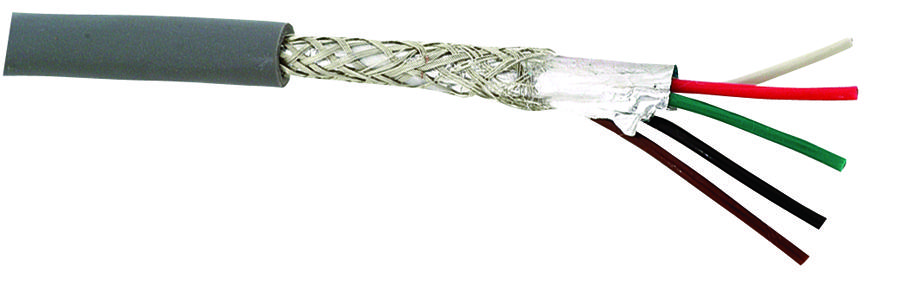

BELDEN 9941060100 Computer Cable
This 100-foot, 5-conductor shielded computer cable featuring 22 AWG stranded (7 x 30) tinned copper conductors is designed for reliable low-voltage data and signal transmission. It includes S-R PVC insulation, an overall Belden aluminum foil-polyester tape shield with 100% coverage, a tinned copper braid shield with 65% coverage, and a chrome PVC jacket. Suitable for connecting controllers, sensors, relays, and meters in industrial and automation environments, it complies with EIA RS-232 standards, UL1685 FT4 flame tests, and environmental regulations including RoHS, ELV, and WEEE. Its electrical characteristics enhance signal integrity and durability.
BELDEN 9941060100 Computer Cable Specifications:
- Conductor: 22 AWG stranded (7 x 30) tinned copper
- Insulation Material: S-R PVC
- Outer Shield: Aluminum foil-polyester tape with 100% coverage
- Braid Shield: Tinned copper, 65% coverage
- Outer Jacket: Chrome PVC
- Overall Diameter: 0.230 in.
- Operating Temperature Range: 20°C to +80°C
- UL Temperature Rating: 80°C
- Cable Weight: 35 lbs/1000 ft
- Capacitance Conductor to Conductor: 37 pF/ft
- Capacitance Conductor to Shield: 67 pF/ft
- Conductor DC Resistance: 14.7 Ω/1000 ft
- Shield DC Resistance: 7.1 Ω/1000 ft
- Max Operating Voltage: 300 V
- Flame Test: UL1685 FTA, CSA FT4
- Compliance: RoHS, ELV, WEEE, Prop 65, China RoHS
- Application: Data transmission, control systems, sensors, relays, meters
- Overall Length: 100 ft
Buy the Buy Belden Computer Cable Part Number 9941060100 Online
Experience top-quality data and signal transmission with this shielded computer cable from Belden. Featuring durable 22 AWG stranded tinned copper conductors, S-R PVC insulation, and full shielding for interference resistance, it ensures reliable connections between controllers, sensors, and meters in industrial settings. Designed to meet EIA RS-232 standards, UL1685 FT4 flame tests, and environmental compliance including RoHS, this 100-foot cable offers superior performance, durability, and flexibility for all your automation and control applications. Order online today for fast delivery and trusted quality.
Buy Belden 9941060100 now and experience unmatched reliability and performance for your data transmission and control needs.
Frequently Asked Questions
Where can I buy BELDEN 9941060100?
You can click on the BUY or RFQ button to purchase 9941060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9941060100?
You can download the 9941060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9941060100?
BELDEN
