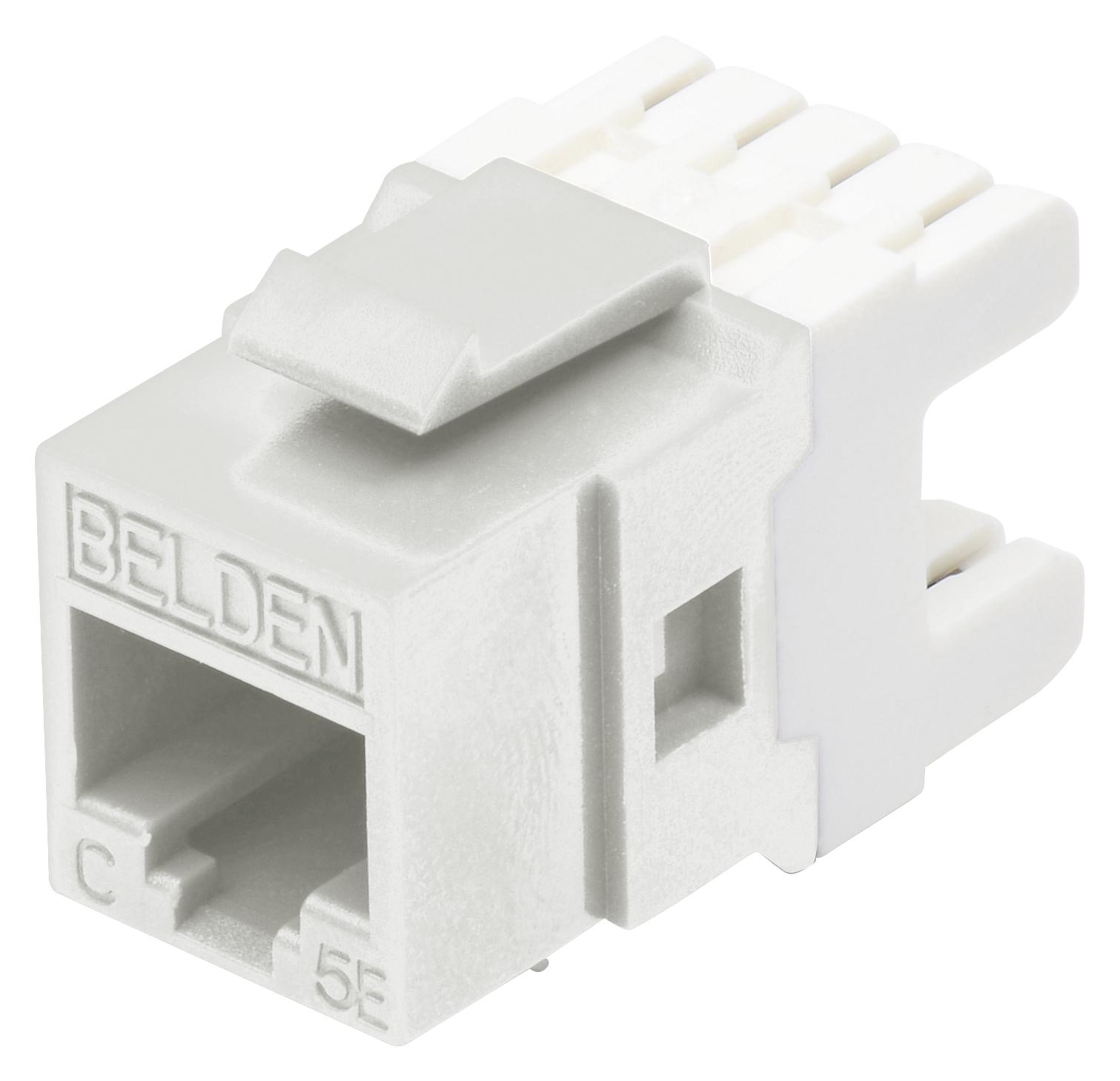

BELDEN AX101309 Network Modular Jack
The CAT5E Modular Jack by Belden is a KeyConnect-style connector designed for high-performance networking applications, including IBDN System 1200 and TIA Category 5E standards. It features copper alloy leads with gold over nickel plating, compatible with keyConnect faceplates, adapters, boxes, and patch panels. The plug supports wiring schemes like TS68NB, has dielectric strength of 1,000 V RMS @ 60 Hz for 1 minute, and current rating of 1.5 A. Suitable for indoor use, it meets standards such as FCC Part 68 and IEC 60603-7, ensuring reliable data transmission in telecommunications networks.
BELDEN AX101309 Network Modular Jack Specifications:
- Dimensions: Standard size for modular connectors
- Materials: Copper alloy with 50u inch gold over nickel plating on front connection, copper alloy with nickel plating on rear IDC connection
- Color: Electrical white
- Wiring Scheme: TS68NB
- Weight: 0.014 lbs per unit
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.5 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
- Electrical Standards: FCC Part 68, IEC 60603-7, TIA 568.82, ISO/IEC 11601:2002
- Performance Verification: ETL-Verified Category 5E
- Suitable for indoor use
- Compatible with Belden tools for termination
Buy the Belden Series KeyConnect CAT5E Modular Jack: AX101309
Order the Belden AX101309 network modular jack online today and enjoy quick delivery of a reliable, high-performance component. Perfect for indoor telecom installations, this CAT5E jack features gold-plated contacts, compatible with keyConnect faceplates, adapters, and patch panels. Its durable copper alloy construction and compliance with industry standards ensure superior data transmission. Whether upgrading existing systems or building new networks, purchasing online provides easy access to this essential component, backed by trusted quality and excellent customer service, ensuring optimal performance for your networking needs.
Buy Belden AX101309 modular jack now and experience unmatched reliability and performance in high-quality network connections.
