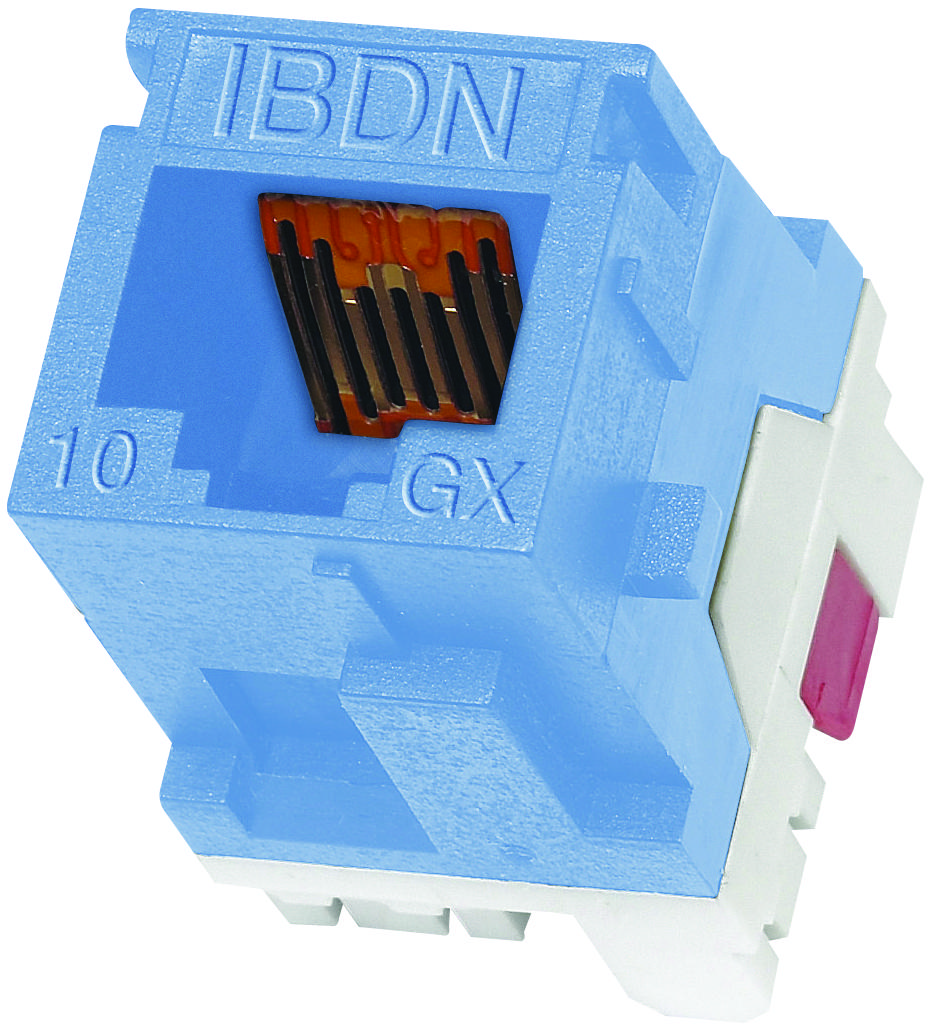

BELDEN AX102269 10GX Modular Jack
The 10GX Modular Jack, designed for Category 6A networking, features MDVO style compatibility, gray color, and is suitable for high-speed data transmission in IBDN systems. It supports TIA Category 6A, ISO Class E, and 10GBASE-T standards, ensuring reliable performance for 10-gigabit Ethernet connections. Crafted with a flexible PCB with gold over nickel finish and a plastic body, it includes 41 X-Bar connectors and a dust cap. Individually packaged, this connector is compatible with faceplates, adapters, boxes, and patch panels, making it ideal for indoor applications demanding high performance and durability.
BELDEN AX102269 10GX Modular Jack Specifications:
- Material: Flexible PCB with 50u inch Gold over Nickel, Phosphor Bronze with Tin Plating over Nickel, Plastic body
- Color: Gray
- Wiring Scheme: TS68NB
- Weight: 0.016 lbs
- Dimensions: Not specified
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 4.500 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max. Contact Resistance: 20 mOhm
- Termination Resistance: 2.5 mOhm
- Standards & Compliance: FCC Part 68, IEC 60603-7, EU RoHS compliant, TIA 568.8-10, ETL verified Category 6A
- Suitable for indoor use, supporting high-speed 10G Ethernet
- Packaging: Pack of 50 units, individually packaged in plastic bags
Buy the Buy Belden 10GX Modular Jack Part Number AX102269 Online
Secure your high-speed network setup with this Category 6A 10GX modular jack, designed for indoor use with MDVO style compatibility. Compatible with faceplates, patch panels, and adapters, it ensures reliable 10G Ethernet connections. Made with durable materials including flexible PCB with gold over nickel and phosphor bronze contacts, this Gray jack supports standards like TIA 568.8-10 and IEC 60603-7, verified by ETL. Packaged individually for convenience, it’s ideal for professional networking installations demanding high performance and durability.
Buy Belden AX102269 high-performance 10GX modular jack now and experience unmatched reliability and high-speed data transmission.
