BELDEN AX102271 Network Modular Jack
The 10GX Modular Jack is a high-performance Category 6A RJ45 connector designed for indoor networking applications such as IBDN System 10GX, TIA Category 6A, and ISO Class E standards. Suitable for 10GBASE-T transmission, it features a white MDVO-style and is compatible with interface and faceplate configurations. Constructed with flexible PCB and phosphor bronze contacts, it offers reliable connectivity, a wiring scheme of TS68NB, and complies with FCC Part 68, IEC 60603-7, and RoHS standards. Packaged individually, it is ideal for high-speed, secure network connections.
BELDEN AX102271 Network Modular Jack Specifications:
- Standards: FCC Part 68, IEC 60603-7, TIA 568.8,2-10, ISO/IEC 11601:2002 Amendment 2
- Performance: Verified Category 6A by ETL, compliant with TIA EIA-568-B.2-10-2008 for 10GX
- Materials: Front connection with flexible PCB, gold over nickel, rear phosphor bronze with tin plating, ULOAV-0 plastic body
- Color: White
- Dimensions: Not specifically provided, compatible with standard faceplates and patch panels
- Electrical: Dielectric strength 1,000 V RMS @ 60 Hz for 1 min, insulation resistance 50 M-Ohm, current rating 4.5 A
- Contact Resistance: Max 20 mOhm, termination resistance 2.5 mOhm
- Wiring Scheme: TS68NB
- Environmental: RoHS compliant, EU Directive 2002/95/EC
- Packaging: Individually packaged, standard carton of 50 units
- Additional info: Compatible with MDVO style faceplates and adapters, suitable for indoor use, UL approved

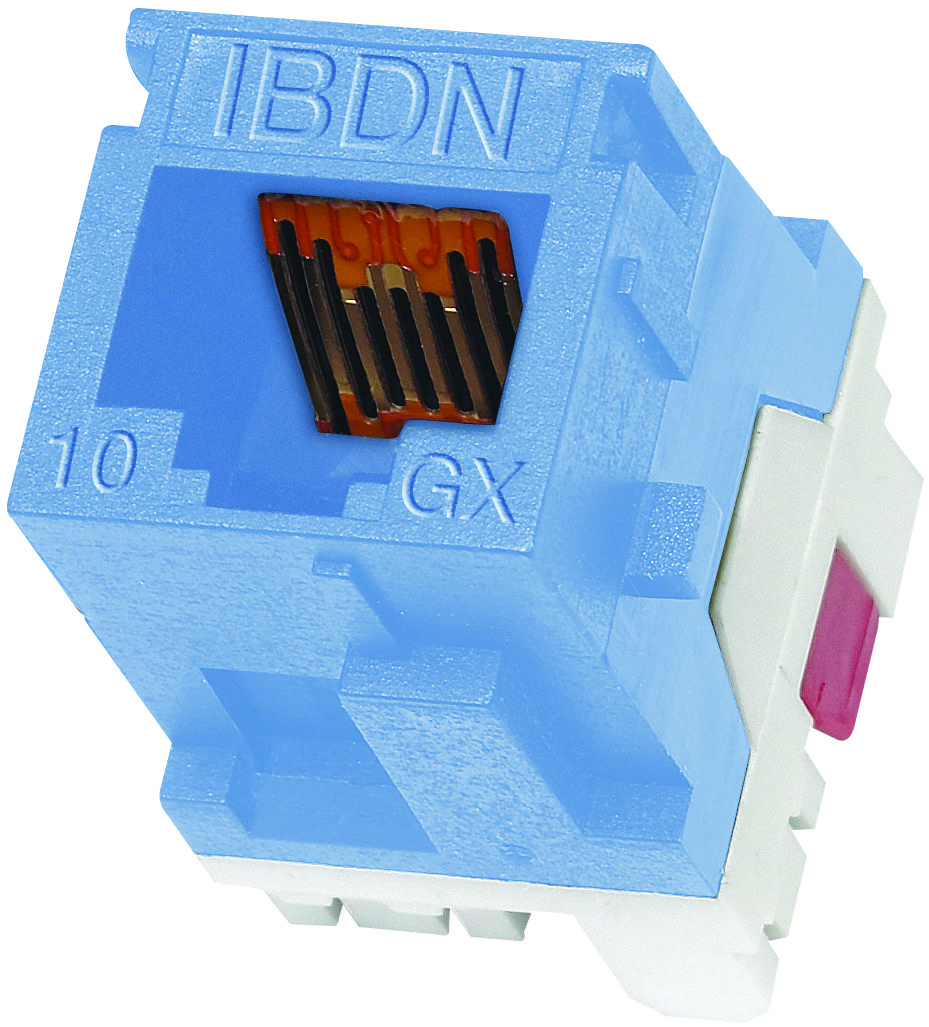

Buy the Belden AX102271 – Reliable 10GX Modular Jack for Industrial Applications
Enhance your networking infrastructure with the Belden 10GX Modular Jack. Designed for high-speed data transfer and reliable performance, this Category 6A connector is suitable for indoor applications and complies with the latest standards. Its MDVO-style design ensures compatibility with various faceplates and patch panels, making installation straightforward. Packaged conveniently in units of 50, it offers excellent dielectric strength, low contact resistance, and RoHS compliance. Perfect for data centers, enterprise networks, and industrial environments, order online today for fast delivery and quality assured results.
Order your Belden AX102271 10GX Modular Jack today and ensure high-speed, dependable network connectivity for your critical projects.
Frequently Asked Questions
Where can I buy BELDEN AX102271?
You can click on the BUY or RFQ button to purchase AX102271 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part AX102271?
You can download the AX102271 datasheet or visit the BELDEN website for support.
Who is the manufacturer of AX102271?
BELDEN
