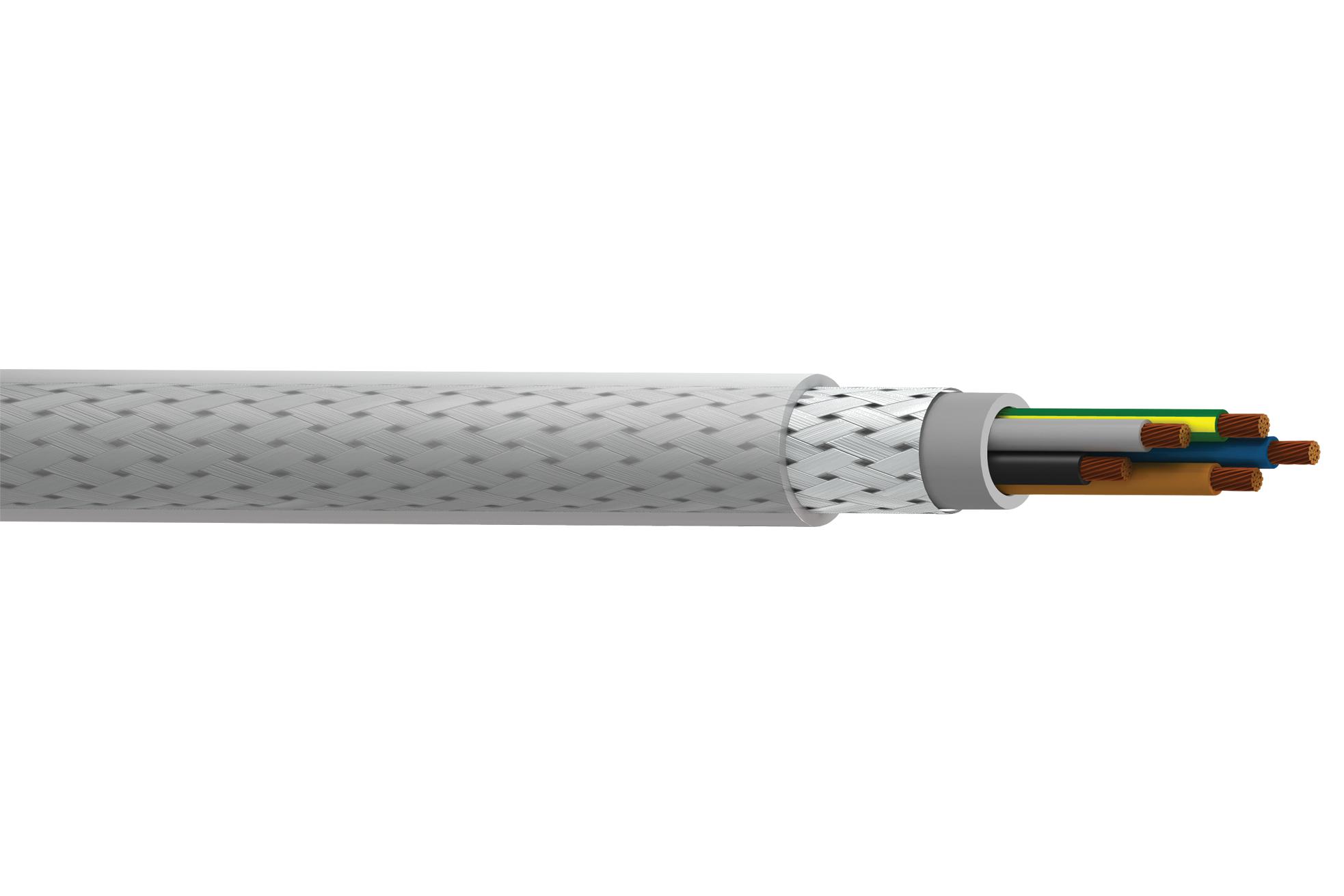

Belden C3GCCYK500 Control Cable
The product is a shielded PVC control cable designed for various industrial applications like sensors, machine controls, and control panels. It features stranded bare copper conductors, PVC insulation, and a tin copper braid shield for excellent noise immunity and durability. Suitable for installation in fixed or occasional flexing environments, it complies with international standards for flame retardancy, voltage ratings up to 750 V, and operates in temperatures from -40°C to +80°C. The cable provides chemical and UV resistance, ensuring reliable signal transmission in harsh conditions.
Belden C3GCCYK500 Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Insulation Material & Colour: PVC, color-coded or MachFlex colour code for multiple cores
- Shield Material: Tinned Copper Braid Shield
- Jacket Material: PVC
- Flame Retardancy: VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
- Voltage Rating: Up to 1.5 mm: 300 / 500 V, From 2.5 mm: 450 / 750 V
- Temperature Range: -5°C to +70°C (occasional movement), -40°C to +80°C (fixed installation)
- Bending Radius: 20 x OD (occasional), 6 x OD (fixed)
- Physical Dimensions: diameter from 6.9 mm to 30.1 mm depending on model
- Additional Properties: UV resistance, chemical resistance, flexible and robust construction
Buy the Buy Belden Control Cable Part Number C3GCCYK500 Online
Order Belden control cable Part Number C3GCCYK500 online today and enjoy fast delivery, exceptional quality, and long-lasting performance for industrial automation, control panels, and machinery. This shielded PVC cable features copper conductors and a tin copper braid shield for excellent noise immunity, ensuring your signals remain clear and reliable even in harsh environments. With flexible installation options, flame retardancy, and temperature resilience, it's the ideal choice for demanding industrial controls and automation systems. Purchase now for a dependable connection solution that enhances your operational efficiency.
Buy Belden control cable Part Number C3GCCYK500 now and ensure high noise immunity and reliable control signals in your automation projects.
Frequently Asked Questions
Where can I buy Belden C3GCCYK500?
You can click on the BUY or RFQ button to purchase C3GCCYK500 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C3GCCYK500?
You can download the C3GCCYK500 datasheet or visit the Belden website for support.
Who is the manufacturer of C3GCCYK500?
Belden
