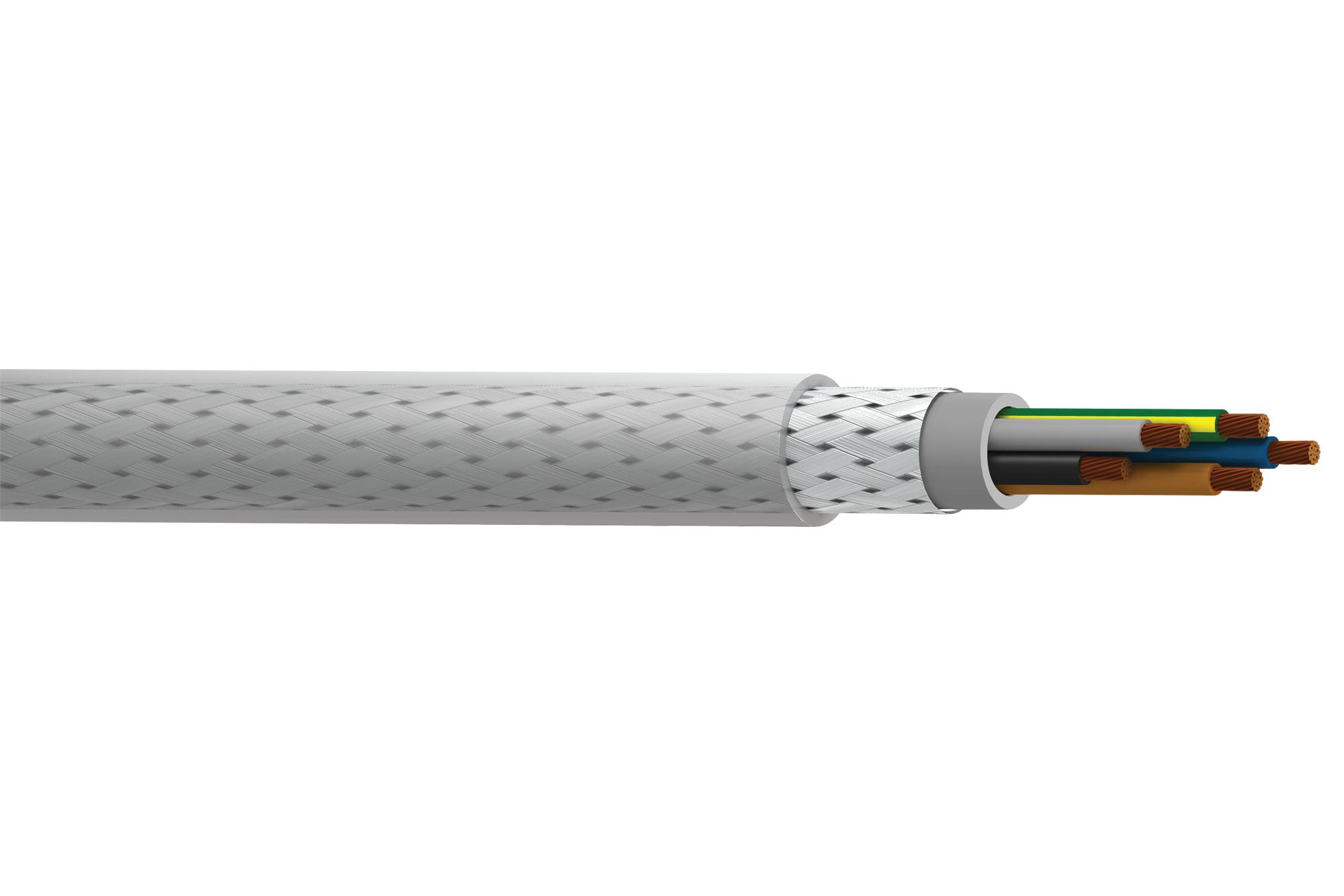

Belden C3GDCYK500 Control Cable
The C3GDCYK500 is a shielded control cable featuring a PVC jacket and tinned copper braid shield that provides excellent noise immunity. Designed for fixed and occasional flex applications, it is suitable for connection in control panels, sensors, motor control, and production machinery. With a conductor material of stranded bare copper, it adheres to international standards like IEC and DIN. Offering reliable performance, this control cable operates within temperatures of -40°C to +80°C, has a voltage rating up to 750 V, and demonstrates good chemical and UV resistance, ensuring durability in industrial environments.
Belden C3GDCYK500 Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Insulation Material & Colour: PVC, colour-coded for multiple cores
- Braid Shield Material: Tinned Copper Braid
- Jacket / Sheath Material: PVC
- Flame Retardancy Standards: VDE 0482-332-1-2, IEC 60332-1-2
- Voltage Rating: Up to 1.5 mm?: 300 / 500 V; From 2.5 mm?: 450 / 750 V
- Temperature Range: -40°C to +80°C (fixed installation), -5°C to +70°C (occasional movement)
- Bending Radius: 6 x OD (fixed), 20 x OD (occasional movement)
- Other Properties: Good UV resistance, chemical resistance, flexible, oil-resistant
- Core Sizes & Dimensions: Range from 2 cores to 20 cores, conductor diameter from 0.5 mm to 25 mm, various cross-sectional areas as per model
Buy the Buy Belden Control Cable Part Number C3GDCYK500 Online
Purchase the Belden Control Cable C3GDCYK500 online today for superior noise immunity and robust performance in industrial automation and control systems. This cable features PVC insulation and a copper braid shield, ensuring excellent electrical performance and durability. Its temperature range from -40°C to +80°C and voltage ratings up to 750 V make it suitable for fixed and flexible installations. Whether for sensors, control panels, or motor control, this cable provides reliable connectivity, easy ordering, fast delivery, and quality assurance for your industrial application needs.
Get Belden Control Cable C3GDCYK500 today—designed for precision, durability, and reliable industrial control connections.
Frequently Asked Questions
Where can I buy Belden C3GDCYK500?
You can click on the BUY or RFQ button to purchase C3GDCYK500 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C3GDCYK500?
You can download the C3GDCYK500 datasheet or visit the Belden website for support.
Who is the manufacturer of C3GDCYK500?
Belden
