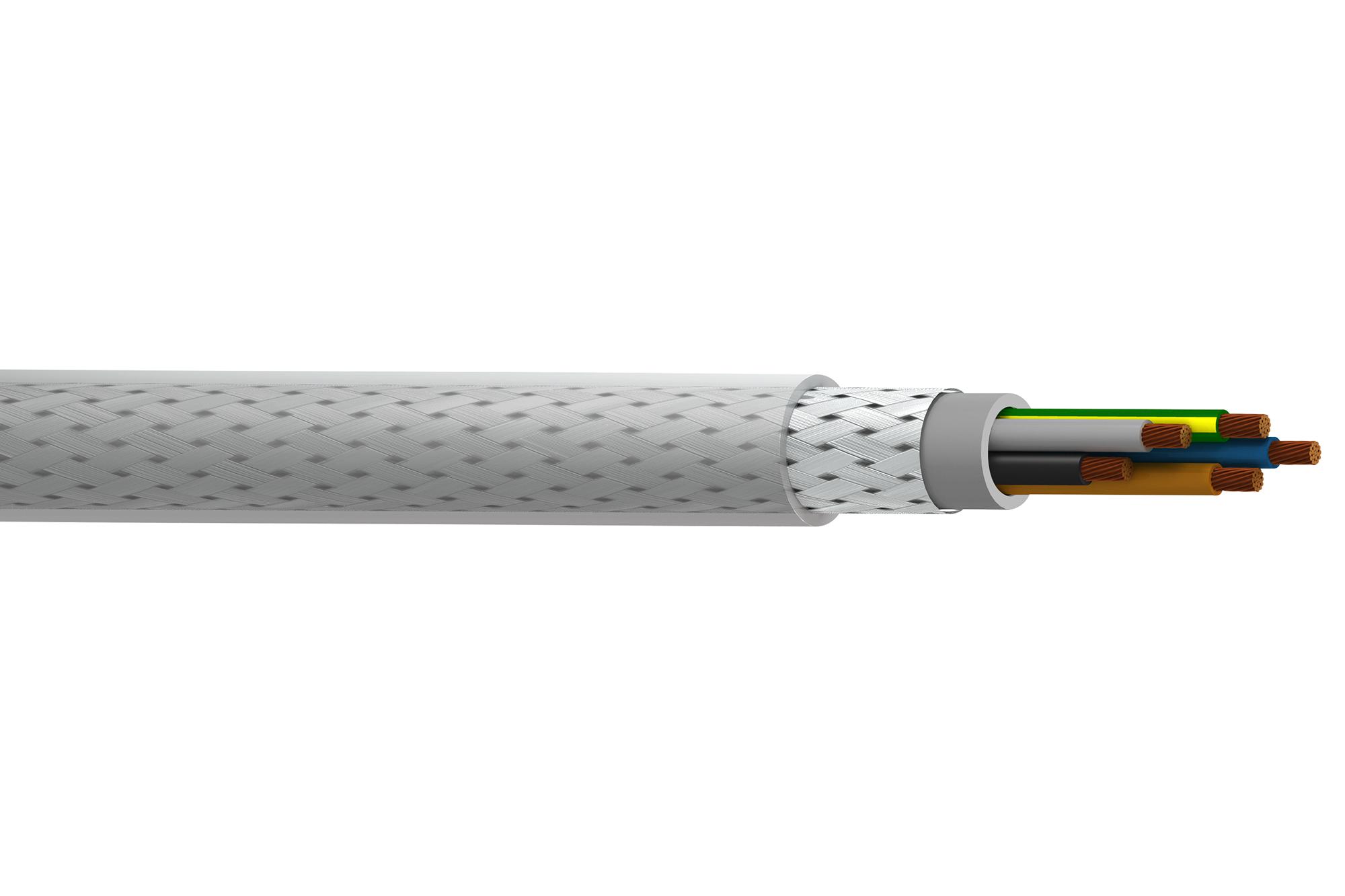

Belden C5GCSYKC50 Control Cable
The C5GCSYKC50 is a specialized armored PVC control cable designed for reliable performance in fixed and occasional flexing installations. Featuring galvanized steel wire braid shielding and a PVC outer jacket, it ensures excellent mechanical protection, chemical resistance, and UV durability. Suitable for control systems, sensors, and automation equipment, this cable adheres to international standards like IEC 60228 and DIN VDE 0295. Its robust construction supports voltage ratings up to 450/750 V and operates efficiently within temperature ranges from -40°C to +80°C, providing flexibility and durability in demanding environments.
Belden C5GCSYKC50 Control Cable Specifications:
- Construction: PVC insulation and outer jacket, galvanized steel wire braid shield
- Voltage Rating: Up to 1.5 mm? 300 / 500 V, From 2.5 mm? 450 / 750 V
- Temperature Range: -40°C to +80°C (fixed), -5°C to +70°C (occasional flexing)
- Color Coding: Up to 5 cores color-coded; from 6 cores, Belden MachFlex color code
- Mechanical Protection: Galvanized steel wire braid shield for enhanced durability
- Standards: IEC 60228, DIN VDE 0295, BS6360, RoHS & REACH compliant
- UV & Chemical Resistance: Good UV resistance, chemical stability, flexible
- Detailed Construction: Inner conductor protected by insulation, woven steel shield, PVC outer sheath
Buy the MachFlex Series Control Cables: C5GCSYKC50
Enhance your control systems with the MachFlex C5GCSYKC50 armored PVC control cable. Its galvanized steel wire braid shield offers superior mechanical protection. Designed for fixed and occasional flexing applications, it handles voltage up to 750 V and performs well in temperatures from -40°C to +80°C. Compliant with international standards, this cable is UV resistant, chemically stable, and suitable for automation, sensors, and machinery. Buy online today for fast delivery, quality assurance, and reliable operation in demanding industrial environments.
Buy MachFlex series control cables including the C5GCSYKC50 now and experience unmatched durability, chemical resistance, and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy Belden C5GCSYKC50?
You can click on the BUY or RFQ button to purchase C5GCSYKC50 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C5GCSYKC50?
You can download the C5GCSYKC50 datasheet or visit the Belden website for support.
Who is the manufacturer of C5GCSYKC50?
Belden
