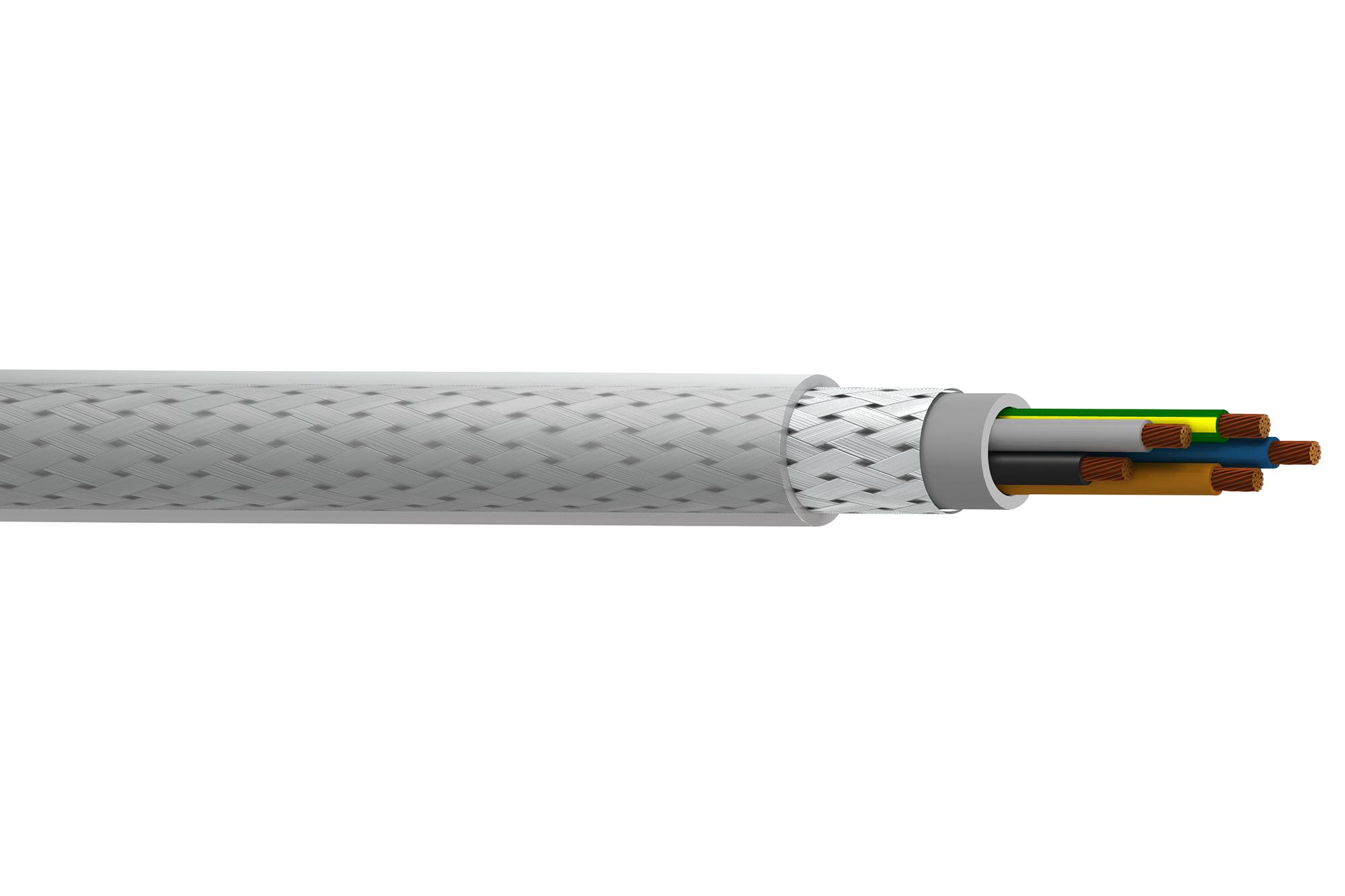

Belden C5GDSYK100 Control Cable
The C5GDSY control cable features a PVC insulation and outer sheath, Galvanized Steel Wire Braid Shield, and is suitable for fixed installations. It supports a voltage rating up to 450/750 V and an operating temperature range of -40°C to +80°C. Designed for application flexibility, it offers excellent chemical and UV resistance, ensuring durability in harsh environments. Suitable for control panels, sensors, and machinery, this armored cable combines robust mechanical protection with flexibility for reliable operation in industrial setups. Ideal for controlling motors, automation, and instrumentation systems.
Belden C5GDSYK100 Control Cable Specifications:
- Insulation Material: PVC (polyvinyl chloride)
- Outer Sheath Material: PVC
- Shield: Galvanized Steel Wire Braid (GSWB)
- Voltage Rating: Up to 450/750 V
- Temperature Range: -40°C to +80°C
- Color coding: Up to 5 cores color-coded, from 6 cores Belden MachFlex color code
- Flexible for fixed installation and occasional flexing
- Excellent UV resistance and chemical resistance
- Standards: DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, IEC 60227-5
- Applications include control panels, sensors, automation, and machinery
Buy the MachFlex Series Control Cables: C5GDSY
Discover the high-quality MachFlex control cable with galvanized steel braid armor, ideal for industrial control, automation, and machinery applications. Featuring excellent chemical, UV resistance, and operational stability across a temperature range of -40°C to +80°C, this cable ensures long-lasting performance in harsh environments. Its PVC insulation and outer sheath provide superior durability, flexibility for fixed installations, and ease of handling. Perfect for control panels, sensors, motors, and automation systems, it guarantees reliable, safe operation, and meets international standards for safety and performance.
Get MachFlex series control cables today—built for precision, durability, and reliable control in industrial environments.
Frequently Asked Questions
Where can I buy Belden C5GDSYK100?
You can click on the BUY or RFQ button to purchase C5GDSYK100 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C5GDSYK100?
You can download the C5GDSYK100 datasheet or visit the Belden website for support.
Who is the manufacturer of C5GDSYK100?
Belden
