Belden C5GDSYKC50 Armored Control Cable

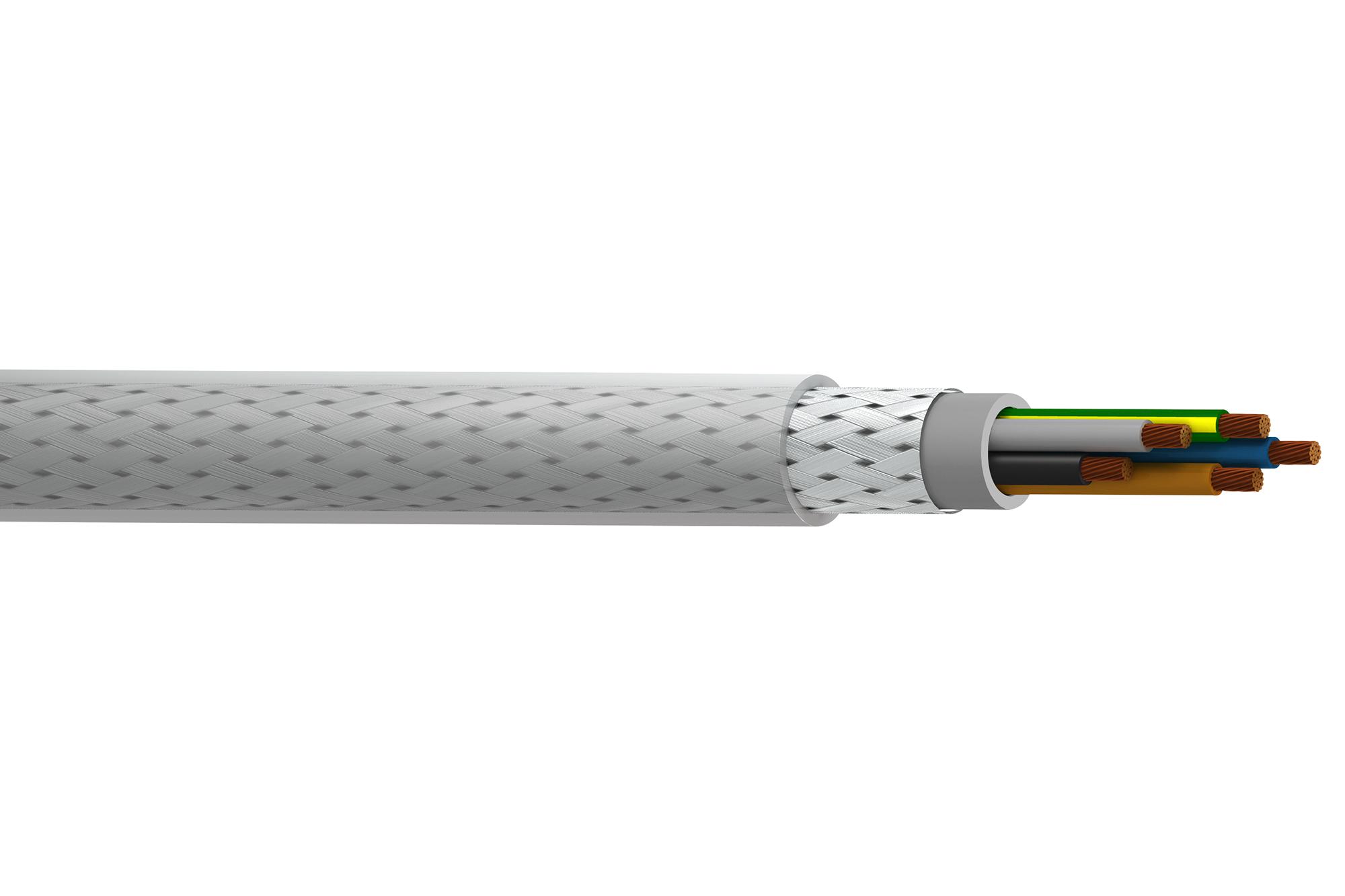

MachFlex 375 SY armored PVC control cables featuring galvanized steel wire braid shielding for excellent mechanical protection and durability. Designed for installation in applications with occasional flexing or fixed locations, these cables are ideal for controlling sensors, machinery, and motors. They comply with international standards such as DIN VDE 0295, IEC 60228, and RoHS directives. The cable construction includes PVC insulation and outer sheath, with a galvanized steel braid shield for enhanced protection and grounding. Suitable for voltage ratings up to 750 V and temperature ranges from -40°C to +80°C, these cables offer high flexibility, UV resistance, and chemical resistance for industrial environments.
Belden C5GDSYKC50 Armored Control Cable Specifications:
- Construction: PVC insulation and outer sheath with galvanized steel wire braid shield
- Voltage Rating: Up to 1.5 mm diameter: 300/500 V, from 2.5 mm: 450/750 V
- Temperature Range: -40°C to +80°C (fixed), -5°C to +70°C (flexing)
- Material: PVC, galvanized steel wire for shielding
- Standards: DIN VDE 0295, IEC 60228, RoHS & REACH
- Features: Good UV and chemical resistance, high flexibility
- Application: Sensor control, machinery, control panels, motor speed control
- Color Coding: Up to 5 cores color-coded, from 6 cores Belden MachFlex color code
Buy the MachFlex 375 SY U–Reliable Armored Control Cables for Industrial Applications
Purchase MachFlex 375 SY armored control cables online today to ensure durable, flexible, and high-quality control connections in your industrial setup. These cables feature galvanized steel wire braid shielding for excellent mechanical protection, PVC insulation, and a robust outer sheath suitable for fixed and occasional flexing applications. With compliance to international standards and a temperature range accommodating harsh environments, these cables deliver outstanding chemical resistance, UV stability, and reliable grounding, making them an essential choice for precision sensors, control panels, and machinery in demanding industrial environments.
Buy MachFlex 375 SY armored control cables now and experience unmatched durability and reliable performance in industrial environments.
