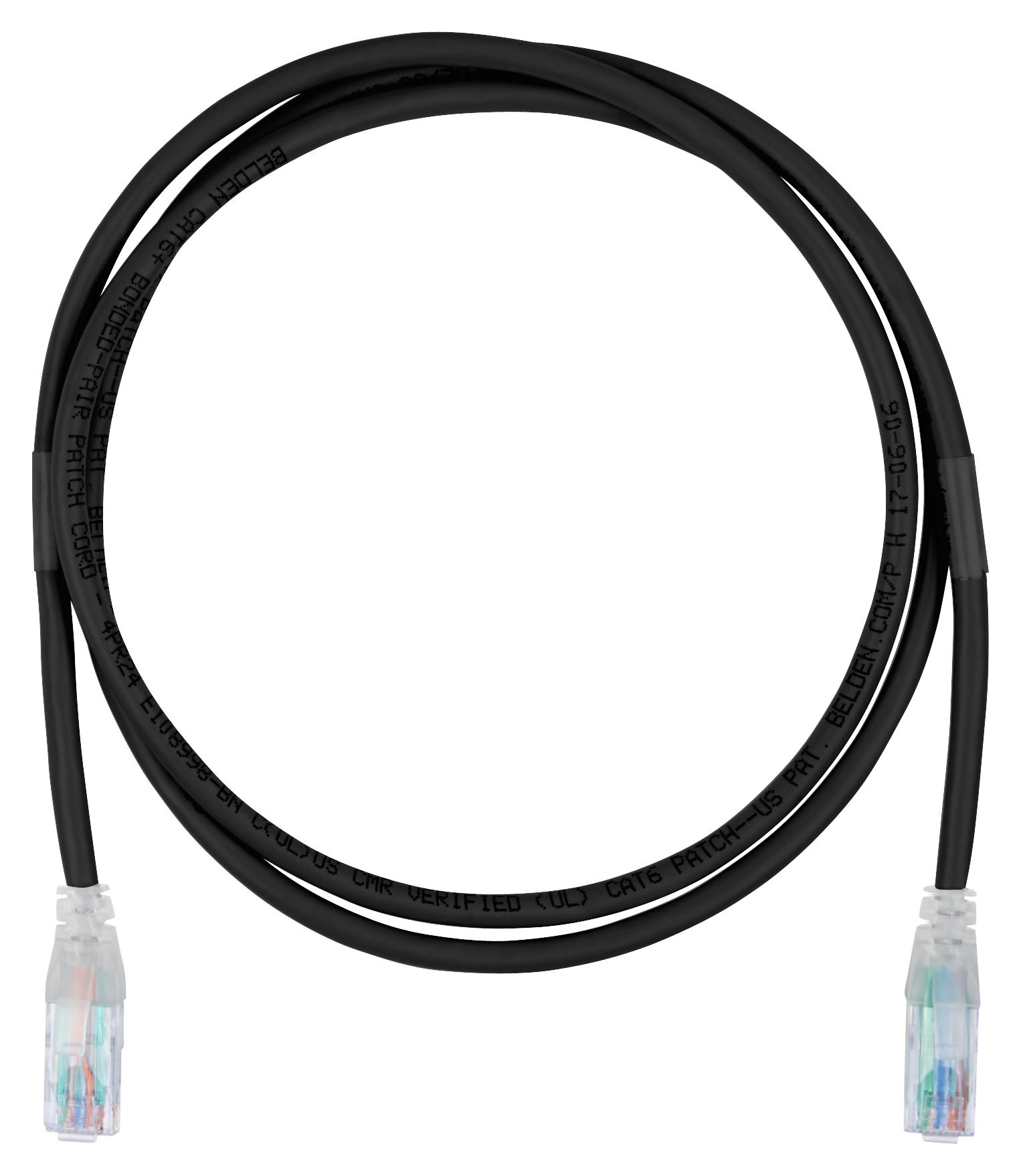

BELDEN C601100010 Ethernet Patch Cord
The CAT6+ Patch Cord is a high-performance Ethernet cable designed for reliable data transmission in industrial and enterprise networking. Featuring bonded-pair, 4 pair, 24 AWG solid conductors with polyolefin insulation, it complies with TIA Category 6 and ISO Class E standards. The cable has a 7-foot length, UL riser rating, and is suitable for indoor use, supporting 1000BASE-T networks. Its durable construction includes a translucent boot with a phosphor bronze blade connector plated with 50 micro-inches of gold for enhanced connectivity. Ideal for structured cabling in data centers and installations requiring high-speed, stable performance.
BELDEN C601100010 Ethernet Patch Cord Specifications:
- Conductor Material: Copper
- Conductor Size: 24 AWG solid
- Insulation Material: Polyolefin
- Outer Jacket Material: Polyolefin
- Outer Jacket Color: Blue
- Overall Diameter: 0.228 in
- Plug Material: Polycarbonate
- Boot Color: Translucent
- Contactor Blades: Phosphor Bronze with 50 micro-inch gold plating
- Wiring Scheme: T568A/B - T568A/B
- Insulation Resistance: 500 M-Ohm minimum
- Dielectric Strength: 1,000 V RMS at 60 Hz for 1 minute
- Current Rating: 1.5 A
- Max Contact Resistance: 20 milliohm
- Operating Temperature Range: -10°C to +60°C
- Installation Temperature Range: -10°C to +46°C
- Max Pull Tension: 25 lbs
- Min Bend Radius: 1.04 in
- UL Rating: Riser
- Standards & Compliance: FCC Part 68, IEC 60603-7, RoHS compatible, UL 1863, TIA 568-C.2, ISO/IEC 11801:2002 Ed.2
- Labeling: Belden part number, performance acronym, wiring scheme, and cord length
Buy the Belden C601106007 – Reliable Ethernet Patch Cord for Industrial Applications
Enhance your network's reliability with the Belden Ethernet Patch Cord. Featuring high-quality bonded-pair conductors, UL riser rating, and durable connectors, it ensures fast, stable data transmission. Perfect for data centers, offices, and industrial settings, this 7 ft. blue patch cord supports 1000BASE-T networks and complies with TIA Category 6 standards. Easy to install with a flexible design, it provides a secure connection and excellent durability. Purchase online today for seamless connectivity and optimal network performance.
Buy Belden C601106007 now and experience unmatched reliability and high-performance networking in your industrial and enterprise environments.
Frequently Asked Questions
Where can I buy BELDEN C601100010?
You can click on the BUY or RFQ button to purchase C601100010 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part C601100010?
You can download the C601100010 datasheet or visit the BELDEN website for support.
Who is the manufacturer of C601100010?
BELDEN
