Belden C7GDSYK100 Control Cable

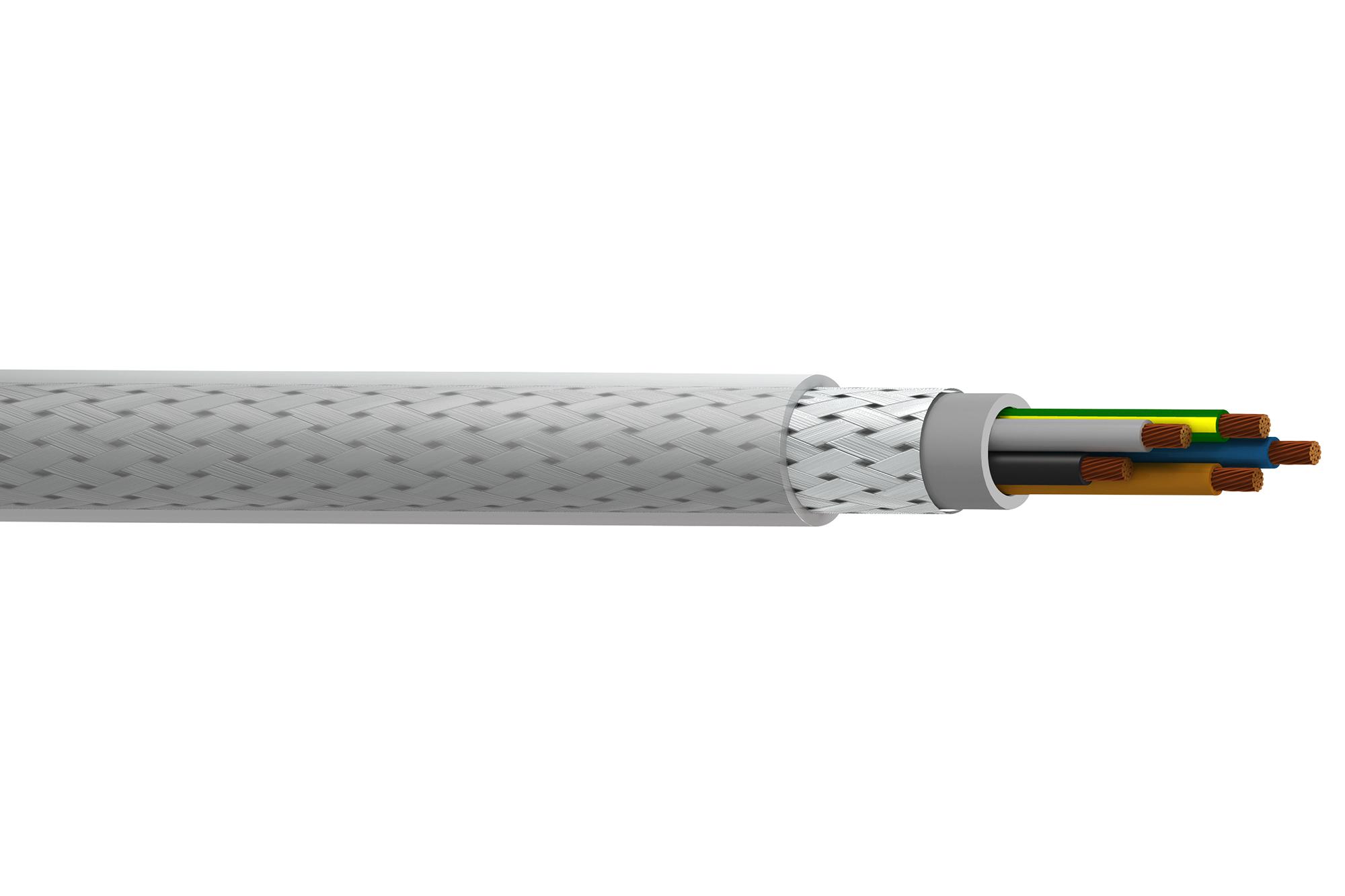

The C7GDSY armored PVC control cable features galvanized steel wire braid shielding and is designed for fixed and occasional flexing applications in control systems. It offers excellent mechanical protection, chemical resistance, UV stability, and operates within temperature ranges from -40°C to +80°C. Suitable for control panels, machinery, and sensor applications, this cable meets DIN VDE and IEC standards, ensuring reliability and safety in industrial environments. Its construction includes copper conductors, polyvinyl chloride insulation and outer sheath, with good flexibility and UV resistance.
Belden C7GDSYK100 Control Cable Specifications:
- Conductor Material: Copper
- Insulation Material: PVC (polyvinyl chloride), color-coded up to 5 cores, Belden color code from 6 cores
- Outer Sheath Material: PVC
- Shield: Galvanized Steel Wire Braid (GSWB)
- Voltage Rating: Up to 1.5 mm² - 300 / 500 V; From 2.5 mm² - 450 / 750 V
- Temperature Range: -40°C to +80°C (fixed installation), -5°C to +70°C (occasional movement)
- Applications: Control systems, sensors, control panels, machinery, production equipment
- Standards: DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, IEC 60227-5
- Construction: Copper conductors with PVC insulation and outer sheath, steel wire braid shield for mechanical protection
- Cable Length & Tolerance: Varies depending on construction and order, provided during quotation
- Certifications: Compliance with RoHS & REACH directives
- Design: Suitable for fixed and flexible installations with excellent UV and chemical resistance
Buy the Buy Brand Name C7GDSY Control Cable Part Number C7GDSYK100 Online
Order Brand Name C7GDSY control cable online now for superior mechanical protection and flexibility in industrial environments. This armored PVC cable with galvanized steel braid shielding is perfect for control panels, machinery, and sensor applications, providing excellent durability and resistance to chemicals and UV rays. Its construction ensures safe, reliable operation within temperature ranges from -40°C to +80°C, meeting international standards for quality and safety. Purchase online today to secure fast delivery and expert support for your control system needs.
Get Brand Name C7GDSY control cable today—designed for industrial automation, offering high mechanical protection, flexibility, and reliable performance.
Frequently Asked Questions
Where can I buy Belden C7GDSYK100?
You can click on the BUY or RFQ button to purchase C7GDSYK100 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part C7GDSYK100?
You can download the C7GDSYK100 datasheet or visit the Belden website for support.
Who is the manufacturer of C7GDSYK100?
Belden
