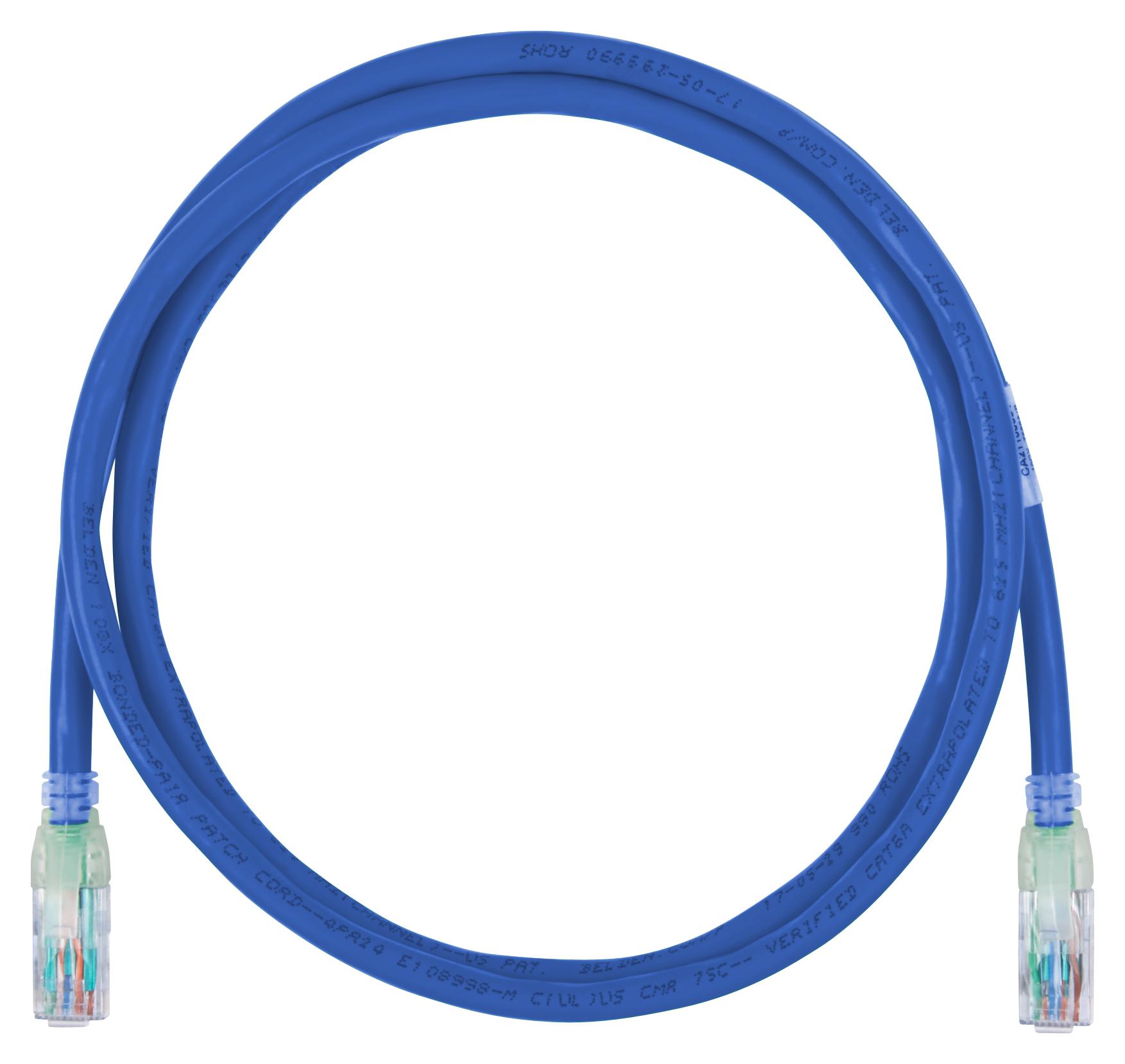

BELDEN CA21106010 10GX Modular Cord
The 10GX Modular Patch Cord is a high-performance cable suitable for 10GBASE-T, IBDN System 10GX, and TIA Category 6A applications. It features 4 pairs of 24 AWG solid conductors with bonding, a floating shield outer shield, and polyolefin insulation. Designed for indoor use, it ensures reliable data transmission over 100 meters, complying with IEC 60603-7, TIA standards, and RoHS regulations. Its rugged construction includes polycarbonate plugs, translucent boots, and nickel-plated phosphor bronze contacts, making it ideal for professional networking setups requiring high-speed, secure connections.
BELDEN CA21106010 10GX Modular Cord Specifications:
- Overall Diameter: 7.239 mm
- Material: Polycarbonate plug, rubber boot
- Insulation Material: Polyolefin
- Outer Shield Material: Floating Screen
- Conductor Gauge: 24 AWG
- Wire Scheme: T568A/B to T568A/B
- Performance: Suitable for 100-meter runs, TIA 568.8 Category 6A standard
- UL Rating: Riser
- Standards & Regulations: IEC 60603-7, RoHS compliant
- Voltage Rating: 1000 V RMS
- Current Rating: 4.5 A
- Maximum Insulation Resistance: 500 MΩ
- Max Contact Resistance: 20 mΩ
- Temperature Range: -40°C to +60°C
- Packaging: Individually packaged in a clear plastic bag
- Weight: 0.172 kg
- Application: Indoor high-speed data transmission, 10G Ethernet
Buy the Belden Series 10GX Modular Cord: CA21106010
Enhance your high-speed network with the Belden 10GX Modular Cord. This 24 AWG, shielded patch cord offers excellent performance for 10GBASE-T applications, ensuring reliable data transfer over long distances. Designed for indoor use, its sturdy construction includes polycarbonate plugs and a floating shield outer shield for minimized interference. Perfect for data centers, server rooms, and high-performance networks, this cord guarantees seamless connectivity, easy installation, and compliance with industry standards, making it an essential component for demanding networking environments.
Buy Belden CA21106010 now and experience unmatched reliability and high-speed performance for professional networking needs.
Frequently Asked Questions
Where can I buy BELDEN CA21106010?
You can click on the BUY or RFQ button to purchase CA21106010 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part CA21106010?
You can download the CA21106010 datasheet or visit the BELDEN website for support.
Who is the manufacturer of CA21106010?
BELDEN
