BELDEN CAPFCFB25 Shielded Modular Connector

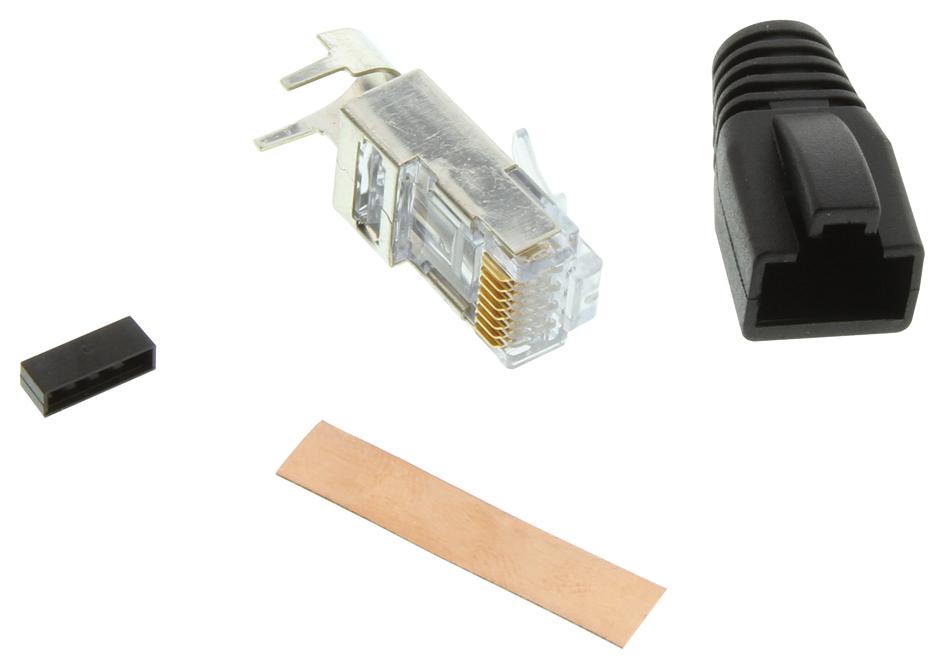

The Belden CAPFCF-B25 is a shielded field-crimped RJ45 connector kit designed for Cat6 and Cat6A applications, including 10GBase-T networks. Made from durable polycarbonate with phosphor bronze contacts and tin-plated brass shielding, it offers excellent electrical performance with dielectric strength of 1,000 V RMS. Suitable for indoor use, it ensures reliable connections with a maximum contact resistance of 40 m-Ohm and insulation resistance of at least 500 M-Ohm. The kit includes a load bar, wire guide, copper shield tape, boot, and installation guide, compatible with crimping tools and recommended for network installations requiring high-performance shielding and durability.
BELDEN CAPFCFB25 Shielded Modular Connector Specifications:
- Materials: Polycarbonate connector, phosphor bronze contacts with 50u inch gold plating, Tin-plated hard brass shield
- Dimensions: Compatible with conductors insulation OD 0.044-0.048 inches, cable OD 0.23-0.31 inches
- Voltage Rating: 1,000 V RMS @ 60 Hz
- Current Rating: 4.5 A
- Dielectric Strength: 1,000 V RMS
- Contact Resistance: Max 40 m-Ohm
- Insulation Resistance: Minimum 500 M-Ohm
- Operating Temperature Range: -40°C to +85°C
- Standards & Compliance: UL 94V-0, IEC 60603-7, RoHS compliant, TIA 568.C.2, ISO classes D, E, EA
- Packaging: Kit of 25 units, includes load bar, wire guide, copper strip shield, boot, installation guide
- Compatible with crimping tools
- Mated Connection Characteristics: Category 6 - TIA 568.C.2, Category 6A - TIA 568.C.2
- Shielding: Copper tape shield for noise immunity and interference protection
Buy the Buy Belden CAPFCF-B25 Part Number CAPFCFB25 Online
Enhance your network installations with the Belden CAPFCF-B25 shielded modular connector kit, designed for Cat6 and Cat6A systems. This durable, high-quality RJ45 connector features gold-plated contacts and copper tape shielding for exceptional electrical performance and interference protection. Ideal for indoor environments, it ensures a secure and reliable connection with high dielectric strength and low contact resistance. Easy to install with compatible crimping tools, this kit provides everything needed to support high-speed, high-performance data networks for professional applications.
Order your Belden CAPFCF-B25 series shielded modular connector kit today and ensure reliable, high-performance network connections with robust shielding.
