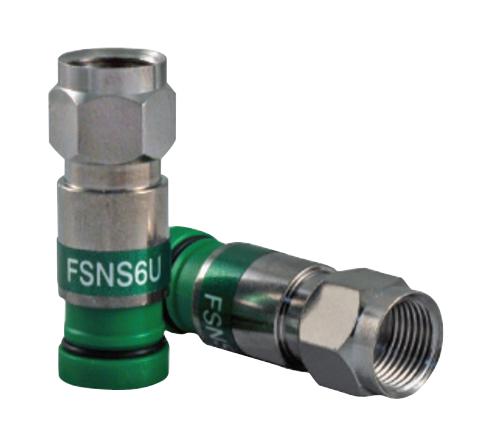

BELDEN FSNS6U25 Coax Compression Connector

The ProSNS RG6 Universal F male connector is a high-quality coax compression connector designed for indoor and outdoor applications. It features a polymer compression sleeve for easy installation and minimal tool force, fitting most RG6 cables including tri-shield and quad-shield types. Made from nickel-tin plated brass with gold-plated contacts, it ensures reliable signal transmission with 75 ohm impedance and excellent return loss performance up to 1 GHz. Suitable for CATV, video distribution, and RF applications, it withstands temperatures from -40°F to 140°F and is certified for various environmental standards, including passing salt fog tests for durability.

Authorized Distributors
Part No:FSNS6U-25
Stock:3326
Inv Date:05-31-2026
Price: Unit price: $3.01
Buy/RFQ:
Part No:FSNS6U-25
Stock:0
Inv Date:05-30-2026
Price: Unit price: $46.5
Buy/RFQ:

BELDEN FSNS6U25 Coax Compression Connector Specifications:

  • Impedance: 75 Ohms
  • Return Loss: 2-30 dB up to 1 GHz
  • Temperature Range: -40°F (-40°C) to 140°F (60°C)
  • Material: Nickel-tin plated brass, gold-plated contact
  • Cable Diameter Limits: Center conductor 0.399 - 0.418 inch; Dielectric 0.180 - 0.193 inch; Outer jacket 0.265 - 0.305 inch
  • Insertion Force: 20 lb
  • Environmental Certification: EUCE Mark, salt fog pass 1000 hours
  • Connector Type: F male compression
  • Color: Green
  • Standards: SCTE specifications
  • Applicable for indoor/outdoor use, plenum/Non-plenum environments
  • Compatible with compression tools CPLCCT-SLMR, CPSNSCT-596, PSA59I6
  • Connector series: ProSNs
  • Locking mechanism: No
  • Connector interface: Coax
  • Cable type: RG type IU
  • Fiber optic compatibility: Not applicable
  • Shielding: RFI shielding -85 dB

Buy the Buy Belden FSNS6U-25 Part Number FSNS6U-25 Online

Purchase the Belden FSNS6U-25 coax compression connector online today for professional-grade video and RF signal distribution. Designed for indoor and outdoor use, it features a polymer compression sleeve for easy, secure installation and universal compatibility with RG6, tri-shield, and quad-shield cables. Made from nickel-tin plated brass with gold-plated contacts, it ensures high performance, reliable connections, and excellent shielding. With certifications including SCTE standards and salt fog resistance, this connector is ideal for CATV, video distribution, and RF applications requiring durable and interference-resistant connections. Order now to enhance your installation efficiency and signal integrity with this top-quality product.

Get Belden FSNS6U-25 today—built for reliable RF signal distribution and durable outdoor performance.
