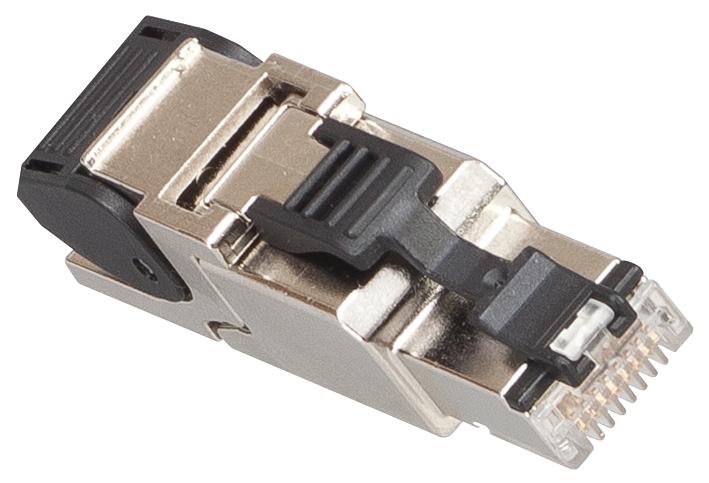

BELDEN R301601000S1 Industrial Ethernet Connector
The R301601 000S1 is a durable DataTuff industrial Ethernet connector designed for IP20 unsealed installations. It supports Cat 6A performance with wire ranges from 24 to 22 AWG, featuring zinc die-cast shielding and crimp terminations for robust connections. Capable of operating in harsh environments, it suits applications like industrial Ethernet, 10BaseTX, 100BaseTX, 1000BaseT, 10GBASE-T, and IBDN 10GX systems. Rated for a maximum voltage of 300 VRMS and flammability UL94V-0, this connector ensures reliable, high-performance networking in demanding settings.
BELDEN R301601000S1 Industrial Ethernet Connector Specifications:
- Connector Material: Zinc die-cast, Nickel plated
- Flammability Rating: UL94V-0
- Maximum Operating Voltage: 300 V RMS
- Wire Range: 24-22 AWG
- Operating Temperature Range: -40°C to +85°C
- Installation Temperature Range: -40°C to +85°C
- Sealing: Suitable for P20
- Standards Compliance: ANSI/TIA-568-C.2, UL1863, EtherNetIP
- Connector Interface: IEC 60603-7
- Insulation Diameter: 7.600 mm
- Outer Jacket Diameter: 8.902 mm
- Certification: UL, RoHS compliant
Buy the Belden Series DataTuff Ethernet Connector: R301601000S1
Enhance your industrial networking setup with the Belden DataTuff Ethernet Connector. Designed for harsh environments, it offers high-speed Cat 6A performance, robust zinc die-cast shielding, and reliable crimp connections. Suitable for industrial Ethernet, 10BaseTX, 100BaseTX, 1000BaseT, and 10GBASE-T applications, it ensures optimal performance in demanding conditions. With a maximum voltage of 300 VRMS and UL94V-0 flammability rating, this connector is ideal for secure, durable, and efficient communication systems. Purchase online now for quality and reliability.
Get Belden R301601000S1 today—built for industrial networking with rugged shielding and reliable performance.
Frequently Asked Questions
Where can I buy BELDEN R301601000S1?
You can click on the BUY or RFQ button to purchase R301601000S1 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part R301601000S1?
You can download the R301601000S1 datasheet or visit the BELDEN website for support.
Who is the manufacturer of R301601000S1?
BELDEN
