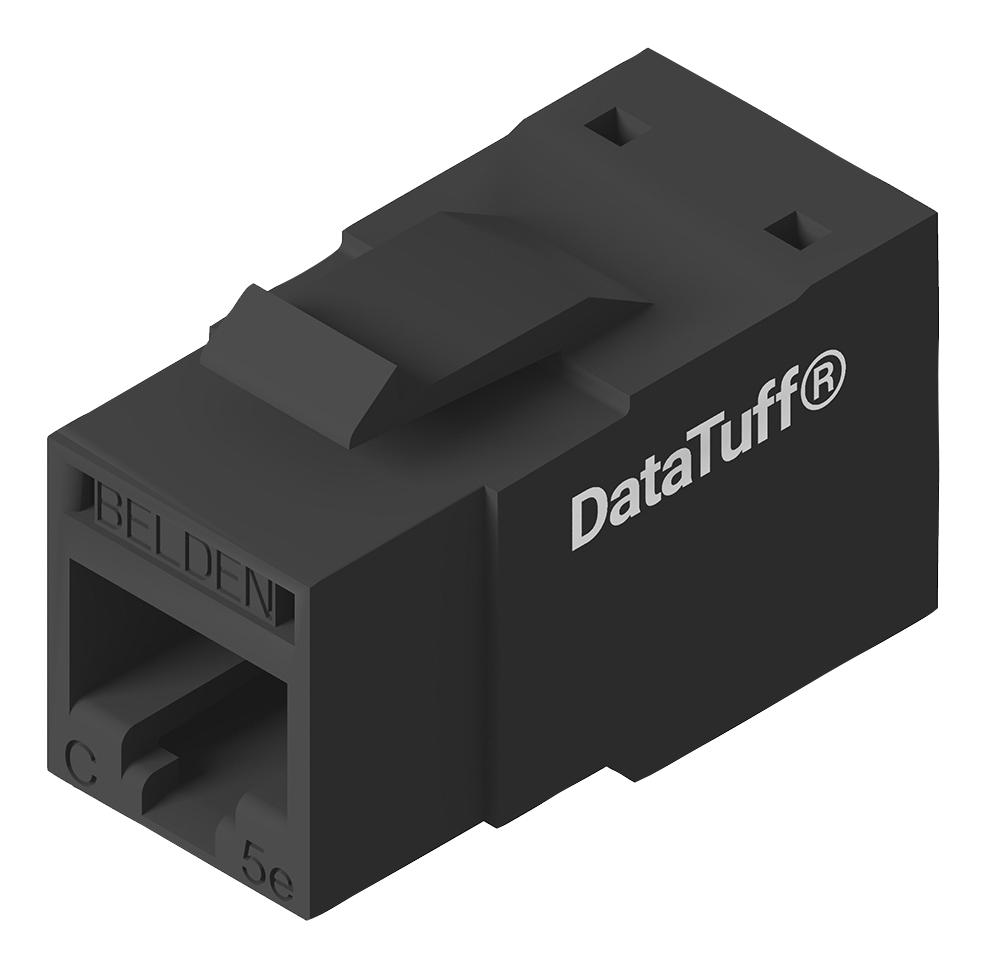

BELDEN RV5IJ2UBKB24 Industrial Modular Jack
The industrial REVConnect CAT5E UTP modular jack is designed for robust network connections, supporting T568A/B wiring schemes, PoE standards, and UL ratings. Made with high-quality materials, including copper alloy contacts and flame-resistant PBT body, it ensures reliable data transmission for indoor applications. Compatible with faceplates, adapters, and patch panels, this jack meets industry standards such as IEEE 802.3at, IEEE 802.3b, and TIA 568 C.2. Its durable construction and precise termination provide excellent performance in network infrastructure, supporting high-speed data transfer up to 100W PoE, and are ideal for industrial and commercial installations.
BELDEN RV5IJ2UBKB24 Industrial Modular Jack Specifications:
- Material: Copper alloy contacts, PBT UL94V-0 body
- Color: Almond, Black, Blue, Brown, Electric White, Gray, Green, Ivory, Orange, Purple, Red, Yellow
- Wiring Scheme: T568A/B
- Operating Temperature Range: -40°C to +70°C
- Termination: Preset connection, with 15 lbs cable retention and 20 lbs hardware retention
- Standards & Compliance: UL 94V-0, IEEE 802.3at, IEEE 802.3b, UL Listed, RoHS compliant
- Voltage Rating: Dielectric strength 1,000 V RMS, Current Rating: 1.3 A
- Insulation Resistance: ≥ 500 M-Ohm, Contact Resistance: ≤ 20 m-Ohm
- Performance Frequency Range: Up to 160 MHz with return loss ≥ 20 dB
- Packaging: Bulk pack of 24 units, weight per unit 0.016 lbs
Buy the Buy Belden Modular Connectors Part Number RV5IJ2UBKB24 Online
Enhance your network setup with Belden’s industrial modular jack, supporting CAT5E UTP, PoE, and high-quality construction. Designed for indoor applications, it ensures stable, fast, and reliable connections, compatible with faceplates and patch panels. This UL-listed, RoHS-compliant jack offers excellent durability and performance for industrial and commercial environments. Easy to install with precise termination and tested for high-frequency performance, it’s the ideal choice for network infrastructure upgrades. Purchase online today and ensure your network’s reliability and efficiency.
Buy Belden RV5IJ2UBKB24 now and experience reliable high-speed data transmission with industrial-grade performance.
Frequently Asked Questions
Where can I buy BELDEN RV5IJ2UBKB24?
You can click on the BUY or RFQ button to purchase RV5IJ2UBKB24 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RV5IJ2UBKB24?
You can download the RV5IJ2UBKB24 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RV5IJ2UBKB24?
BELDEN
