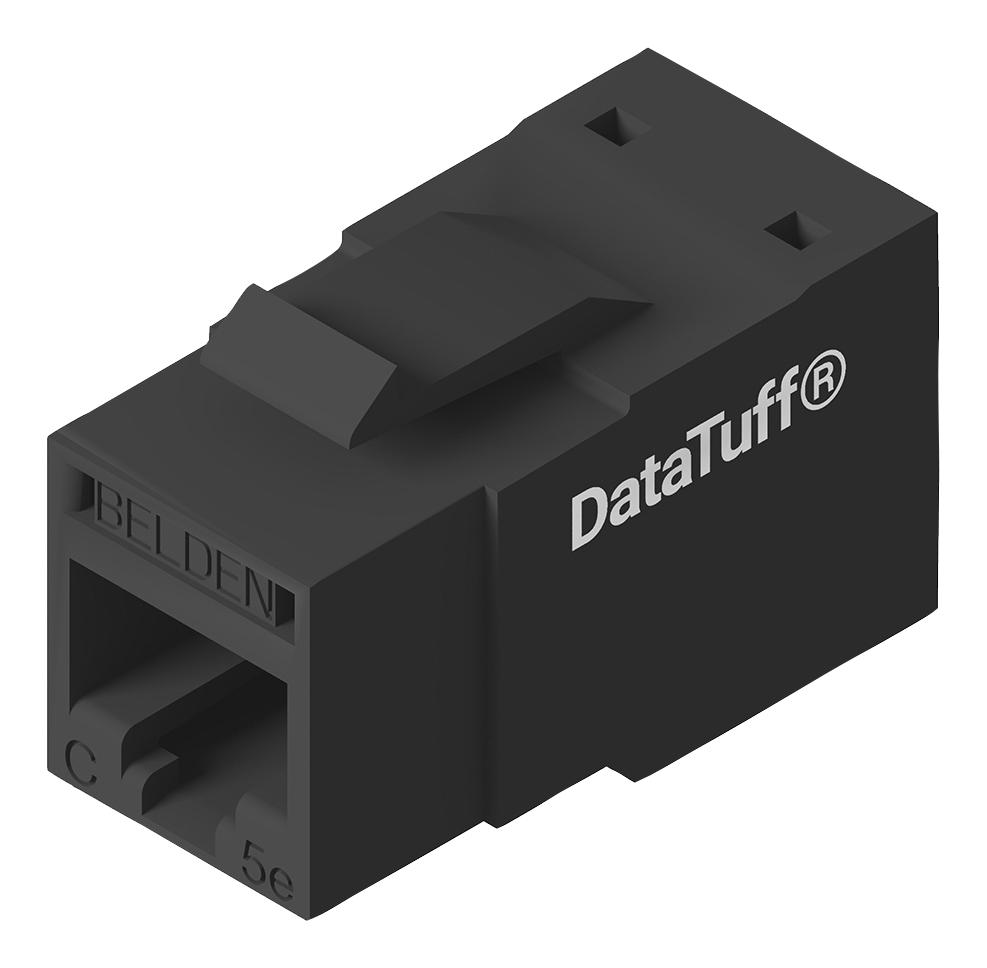

BELDEN RV5IJ2UBKS1 Ethernet Modular Jack
The industrial REVConnect CAT5E UTP modular jack is designed for reliable data transmission in Ethernet networks supporting TIA Category 5E, ISO Class D, and 1GBASE-T applications. It features a robust construction with gold-plated copper contacts, compatibility with KeyConnect faceplates, adapters, and patch panels, and offers multiple color options for easy network organization. Certified for UL and IEEE standards, it supports Power over Ethernet up to 100W, ensuring high performance and durability in indoor environments. Easy to install with REVConnect termination tools, it provides excellent signal integrity and connection stability for industrial networking needs.
BELDEN RV5IJ2UBKS1 Ethernet Modular Jack Specifications:
- Dimensions: Not specified in OCR
- Material: Copper clad flexible PCB with 5Quin gold plated contacts, copper alloy with gold plating, PBT UL94V-0 connector body
- Color: Almond, Black, Blue, Brown, Elec. White, Gray, Green, Ivory, Orange, Purple, Red, Yellow (various TIA 606 options)
- Wiring Scheme: T568A/B
- Weight: 0.016 lbs
- Termination Interface: Preset connection, cable retention 15 lbs, connector retention 20 lbs
- Temperature Range: -40°C to +70°C for storage, installation, and operation
- Applicable Standards: UL94V-0, UL listed, IEEE 802.3at/af, IEEE 802.3b, RoHS compliant
- Performance: Supports 1.000 MHz to 160.000 MHz, return loss up to 42 dB, dielectric strength 1,000 V RMS, current rating 1.3 A, insulation resistance 500 M-Ohms
- Flame Rating: UL94V-0, UL2043 Air Handling Spaces
- Environmental Compliance: RoHS, China RoHS
- Certifications: UL, cUL, FCC Part 68
- Transmission Performance: Supports Ethernet speeds up to 1 Gbps, with high signal integrity and minimal crosstalk
Buy the Belden Series Modular Jack: RV5IJ2UBKS1
Enhance your network installations with the Belden Ethernet Modular Jack known for durability, compatibility, and reliable PoE support. This high-quality Cat5E jack, suitable for indoor use, offers excellent signal integrity and easy installation through REVConnect termination. Its compliance with UL, IEEE, RoHS, and FCC standards ensures safety and environmental responsibility. Available in various colors, it integrates seamlessly with faceplates, patch panels, and adapters, making it ideal for industrial and commercial networks seeking dependable, efficient connectivity for Gigabit Ethernet and Power over Ethernet applications.
Order your Belden Series RV5IJ2UBKS1 modular jack today and ensure reliable high-speed Ethernet connections for your industrial networking projects.
