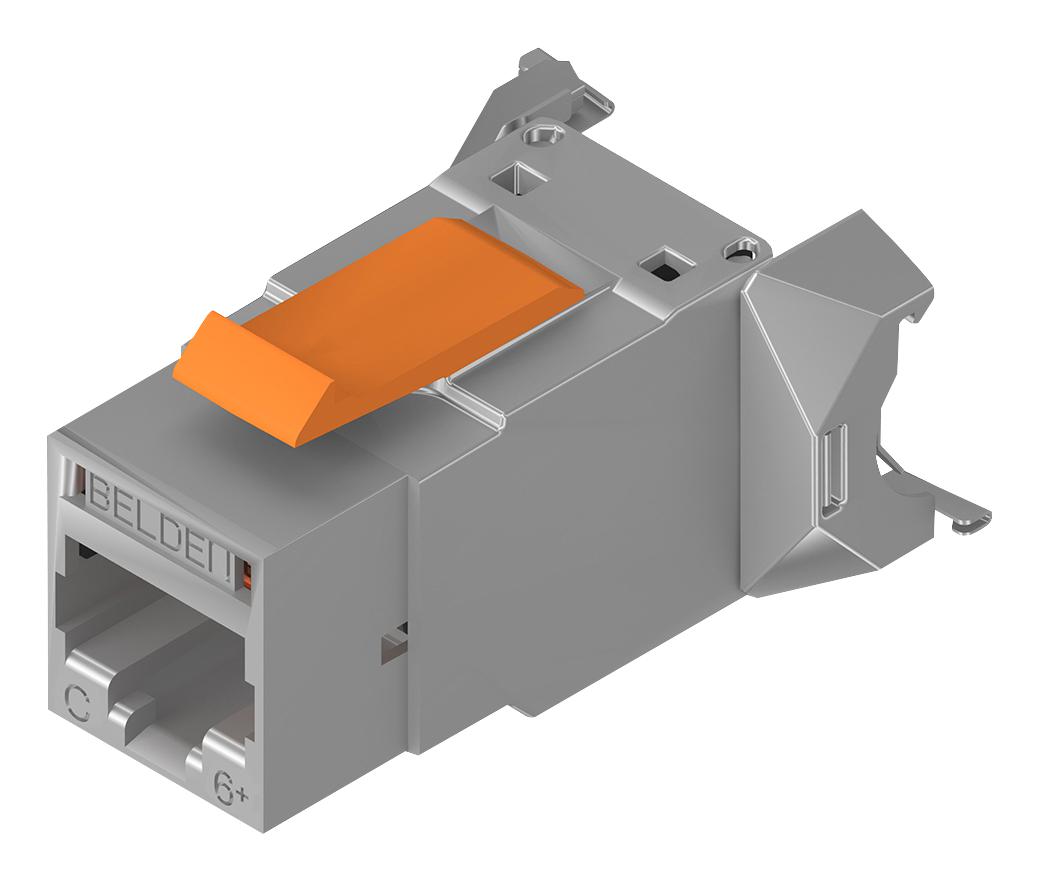

BELDEN RV6IJ2SMES1 Shielded Modular Jack
The industrial REVConnect CAT6+ shielded modular jack provides a reliable connection solution for high-performance shielded networking environments, supporting TIA Category 6 standards and Power over Ethernet applications. It features a durable metal body, gold-plated copper contacts, and are compatible with REVConnect termination tools for quick, secure installations. Suitable for use in shielded systems, it ensures high signal integrity and resistance to environmental factors, making it ideal for industrial and data center deployments requiring robust, shielded connectivity with maximum performance.
BELDEN RV6IJ2SMES1 Shielded Modular Jack Specifications:
- Material: Copper alloy rear connection, zinc alloy diecast body, gold-plated contacts
- Connector Type: RJ45 modular jack, compatible with RJ45 and RJ11
- Wiring Scheme: T568A/B
- Insertion Loss: 0.100 dB at 1 MHz, up to 0.320 dB at 250 MHz
- NEXT/FEXT: 75-77 dB at 1 MHz, decreasing at higher frequencies
- Temperature Range: -40°C to +70°C
- UL Rating: UL94V-0, UL Listed
- Compliance: IEEE 802.3at, RoHS, IEC 60603-7
- Current Rating: 1.3A, Dielectric Strength: 1,000V RMS
- Retention Force: Cable 15 lbs, Connector 20 lbs, Plug 11.25 lbs
Buy the Buy Belden RV6IJ2SME-S1 Modular Connectors Industrial Shielded Jack Online
Purchase the Belden RV6IJ2SME-S1 shielded modular jack online today for reliable high-speed Ethernet connectivity in industrial environments. Designed with durable metal housing and gold-plated contacts, this connector ensures optimal performance, secure connections, and resistance to environmental influences. Compatible with REVConnect tools, it provides fast, secure terminations for TIA Category 6 applications, supporting PoE and high-frequency data transfer up to 250 MHz. Enhance your networking infrastructure with this industrial-grade, UL-listed shielded modular jack for maximum durability and signal integrity.
Order your Belden RV6IJ2SME-S1 industrial shielded CAT6+ module today and ensure robust, high-performance network connections for your enterprise systems.
